Air Temperature Sensor ( Ambient / Intake ): Service and Repair

Removal/Installation
1. Remove the extension manifold.

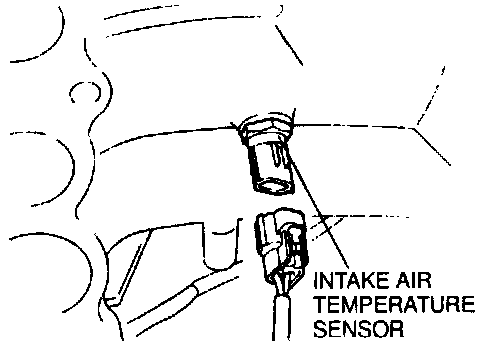

2. Remove the intake air temperature sensor from extension manifold.
3. Install the intake air temperature sensor.

Tightening Torque: 7.9-11.7 Nm (70-104 in.lb.)
