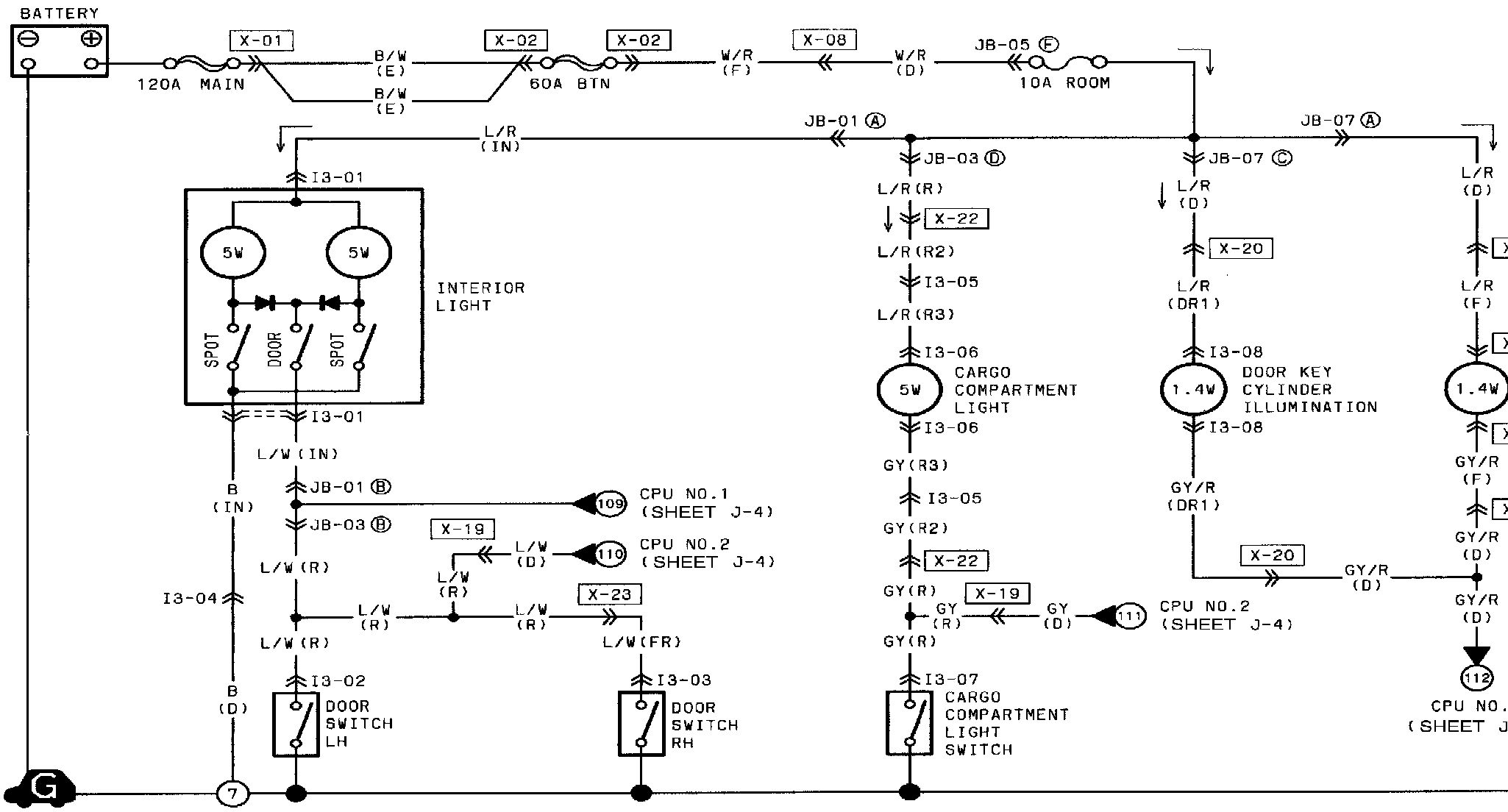

Interior Lighting Module

,i�Interior Light, Cargo Compartment Light, Door Key Cylinder Illumination, Glove Compartment Light:
