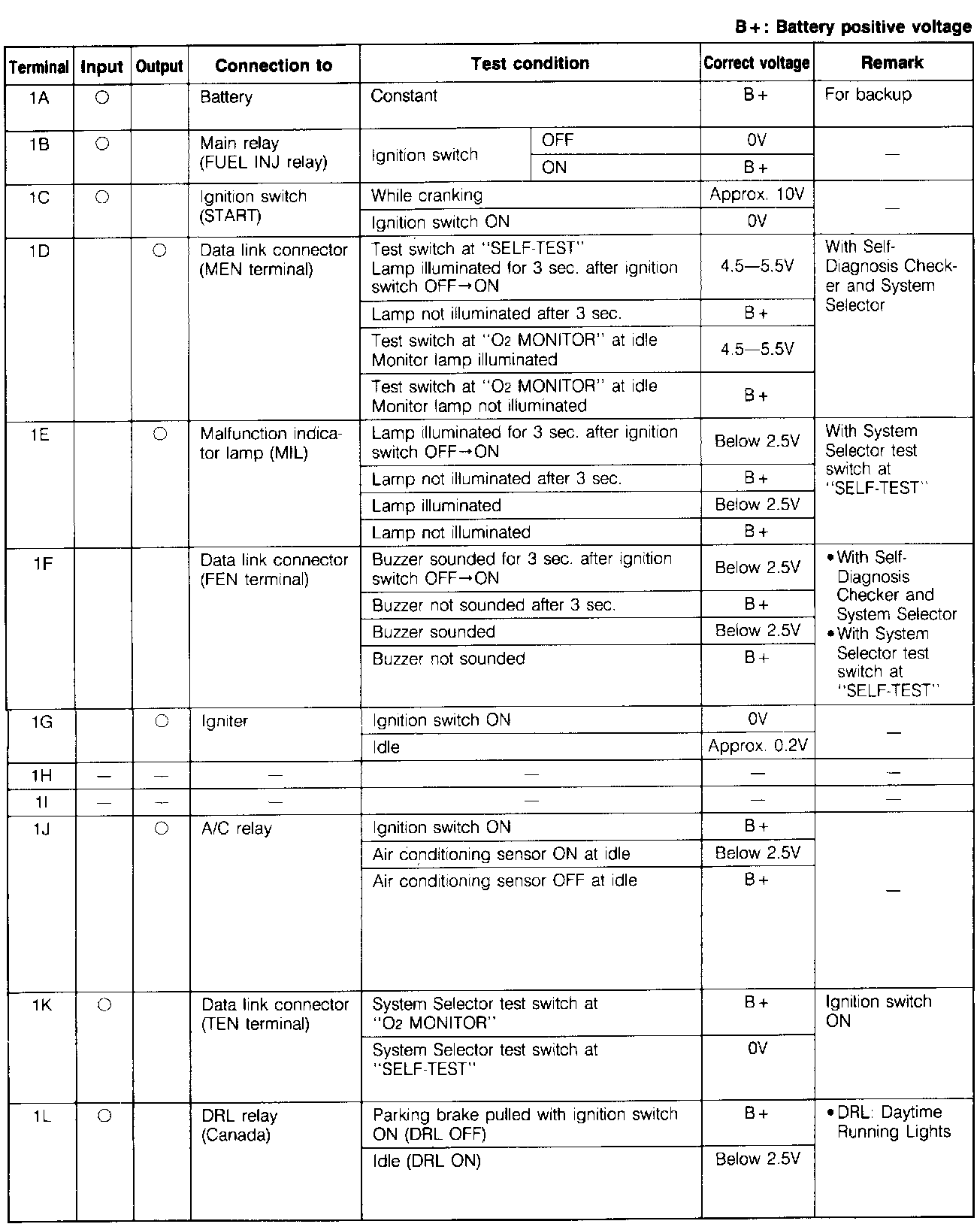

Home >> Mazda >> 1994 >> Protege L4-1839cc 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Specifications >> B-1 >> Terminals 1A-1L
