Handling Connectors
Handling Connectors

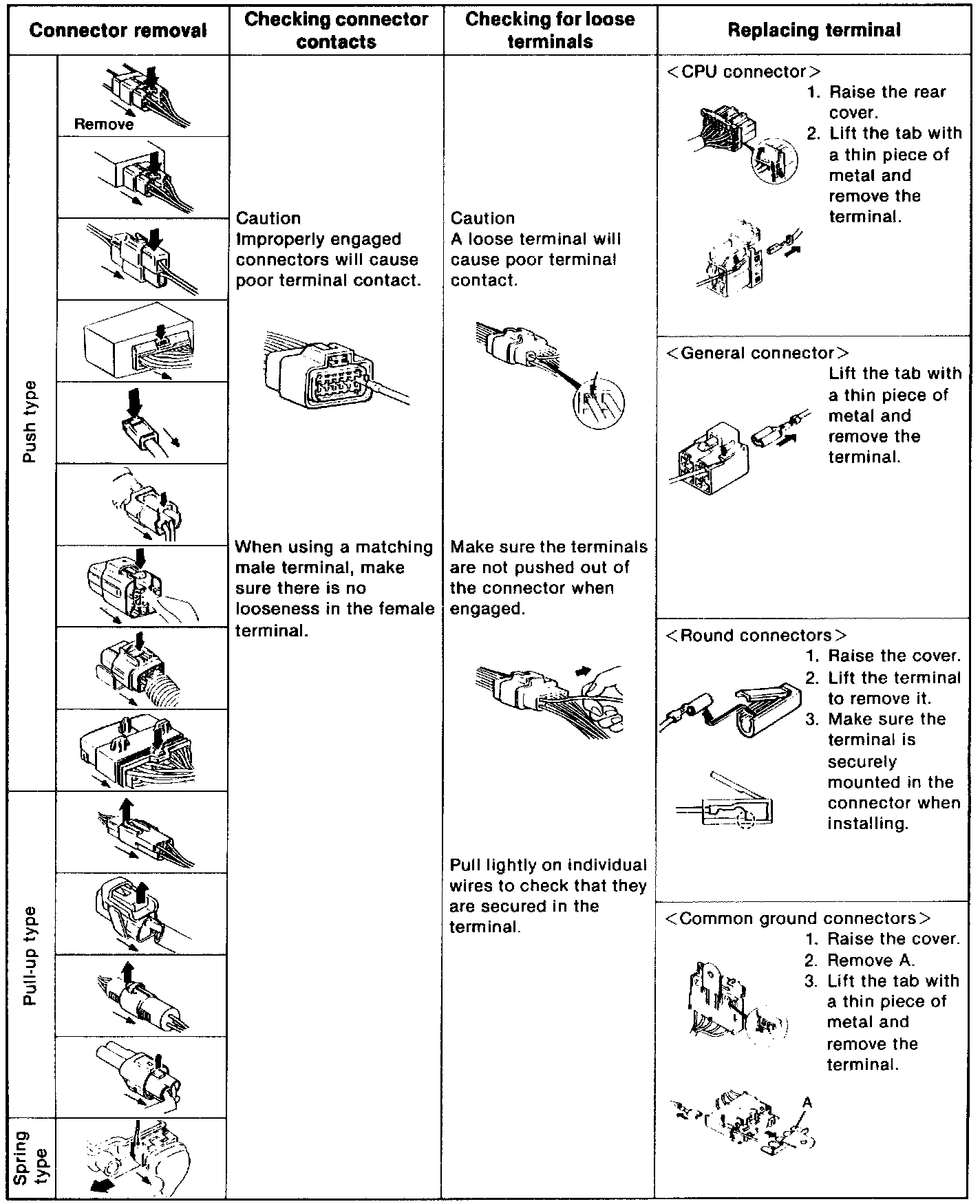

Handling Connectors:
CAUTION:
^
Be sure to grasp the connector, not the wires, when disconnecting them.
