Mazda
>>
1994
>>
Navajo 2WD V6-4.0L OHV
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
System Specifications
>>
B-3A
B-3A

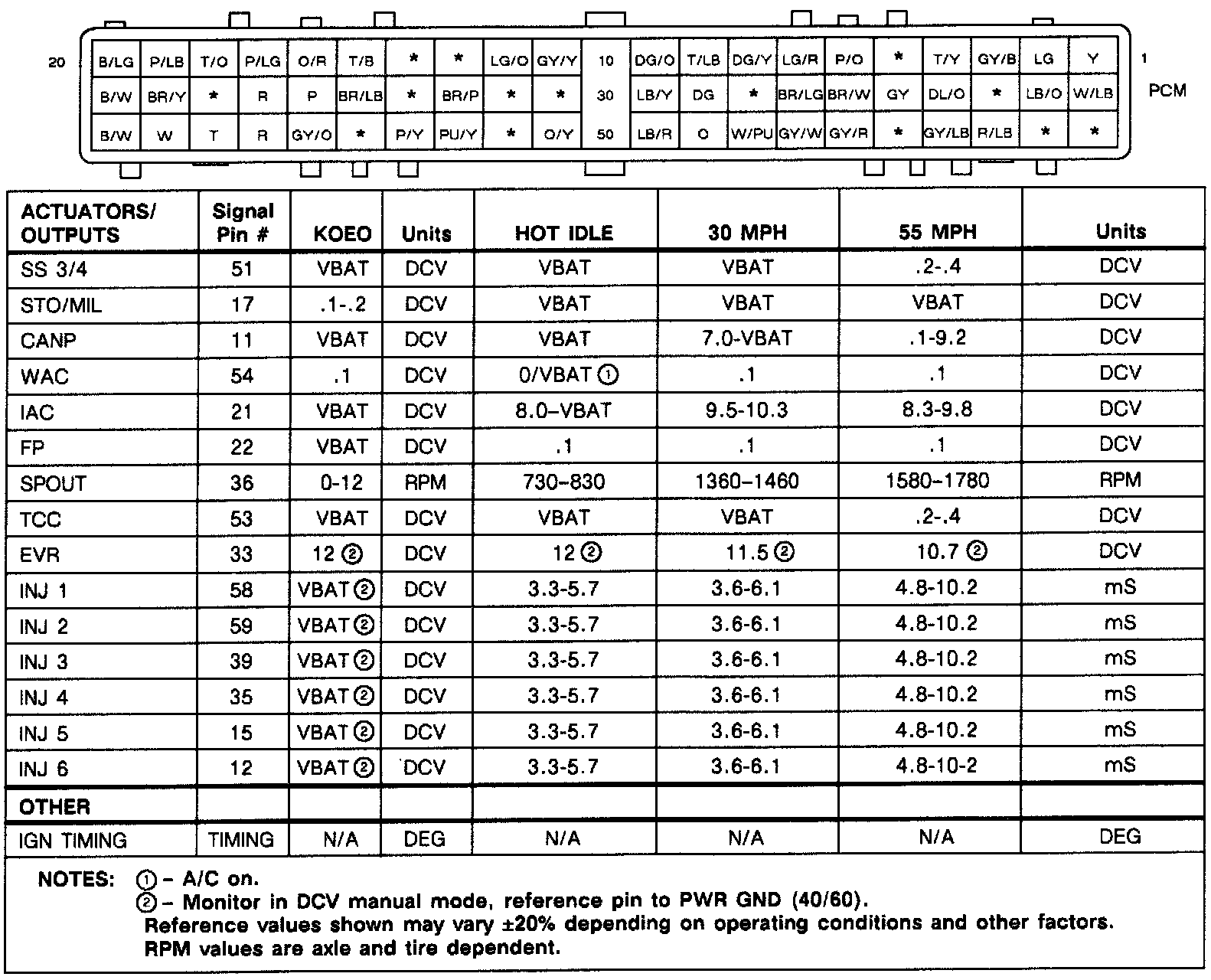

Powertrain Control Module Terminal (Unit Side):
