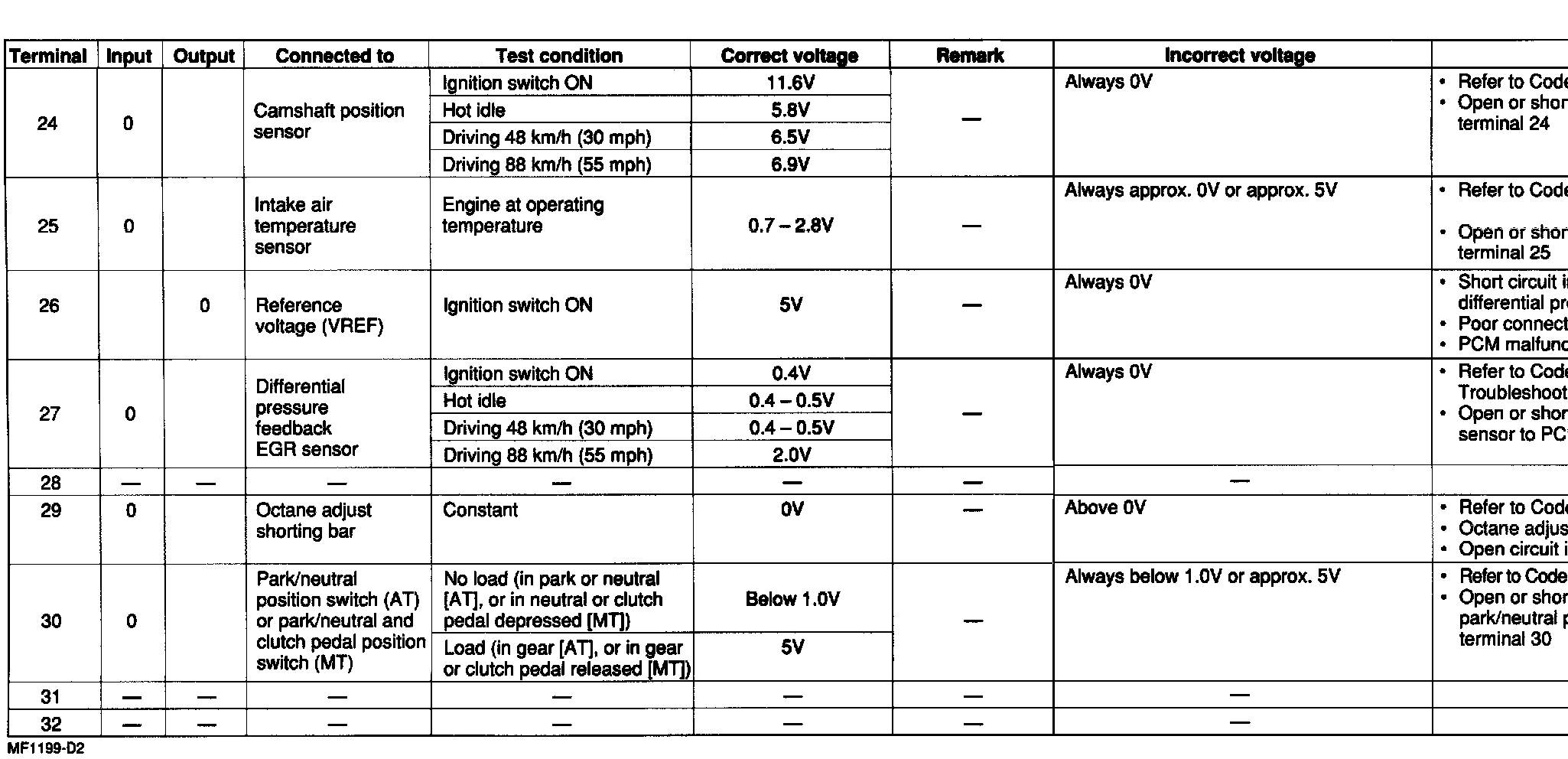

PCM Pins 24 Through 32
PCM Pins 24 Through 32
QK� NOTE: All Values Shown May Vary 20% Depending on Operating Conditions. RPM Values are Axle Ratio and Tire Size Dependent:
