Spark Plug: Locations

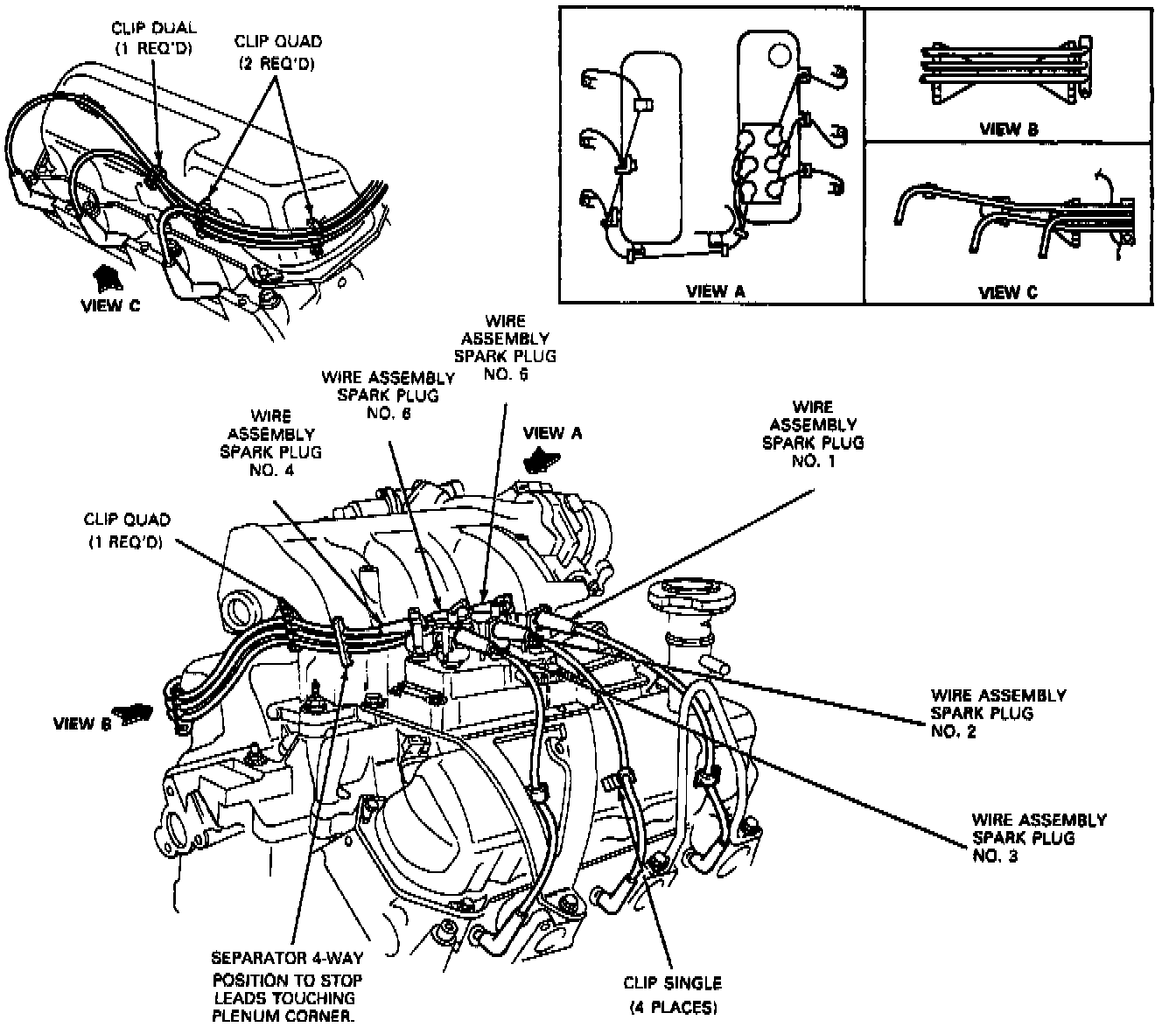

View: Spark Plug Locations and High-Tension Lead Arrangement:

The six spark plugs are located at the outer sides of the engine cylinder heads. Three spark plugs per engine bank.
