Ignition Timing Connector: Locations

X- Designates Connectors Shown in Wiring Diagrams:

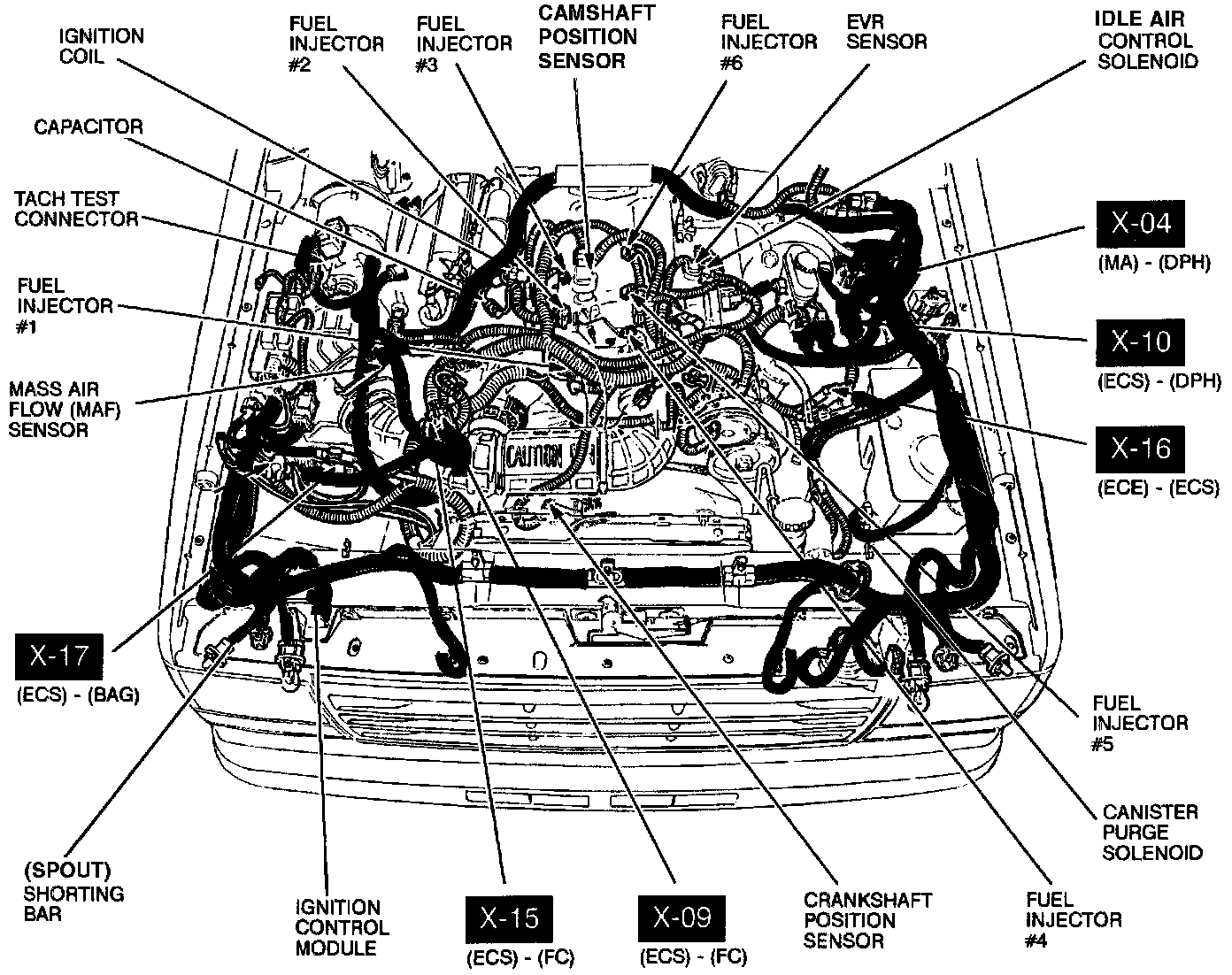

Located on the right front corner of the engine compartment, taped to the vehicle harness.
