Component Locations

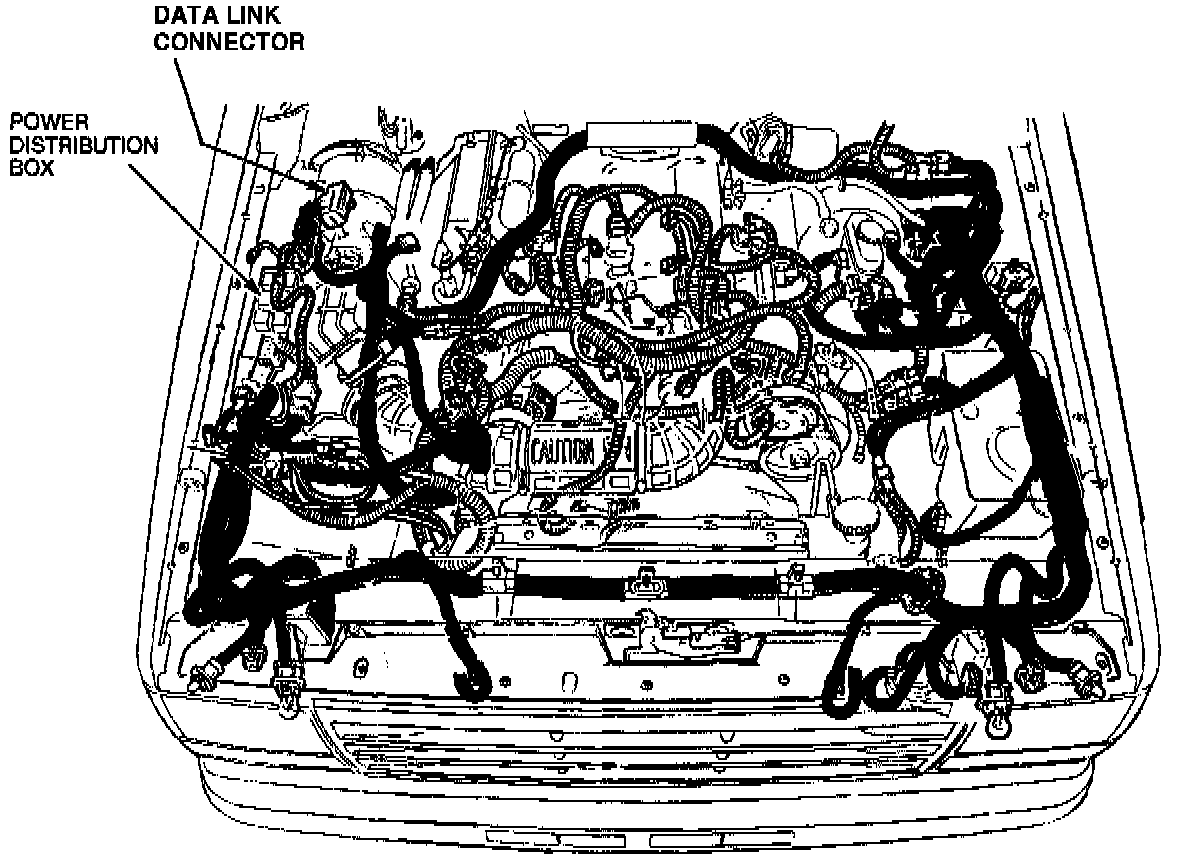

View: Data Link Connector:





The Data Link Connector is located on the right side of the engine compartment near the Power Distribution Box.
