Component Locations

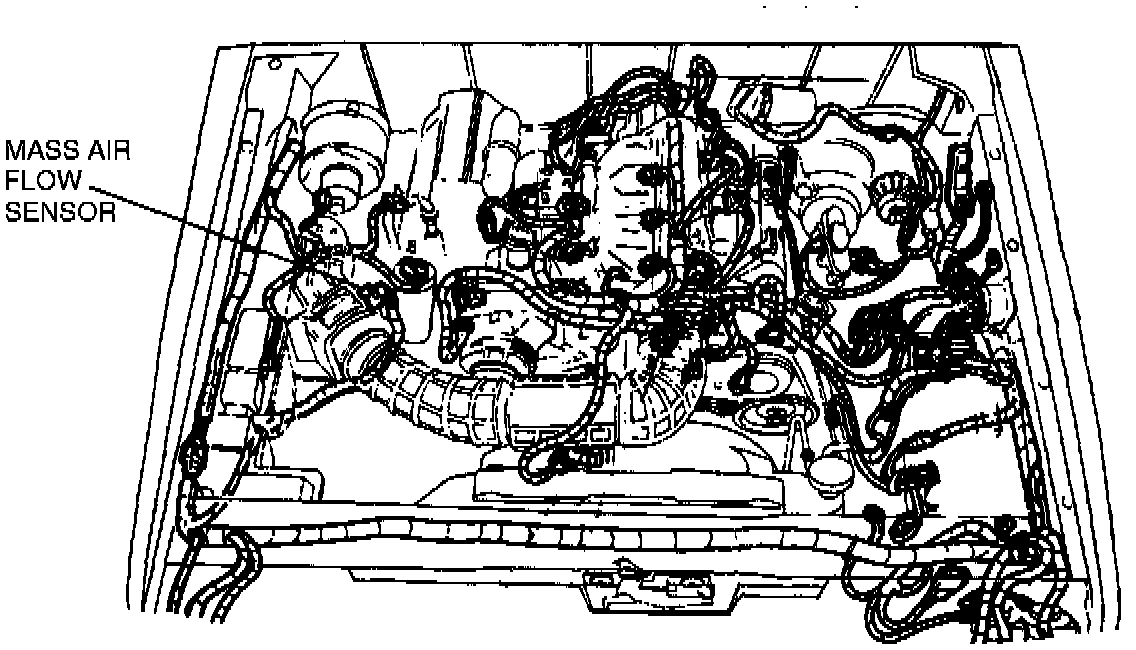

View: Mass Air Flow Sensor Location:





The Mass Air Flow Sensor is located on the right side of the engine compartment mounted to the air cleaner housing.
