Home >> Mazda >> 1994 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Cruise Control >> Terminals L-T

Terminals L-T

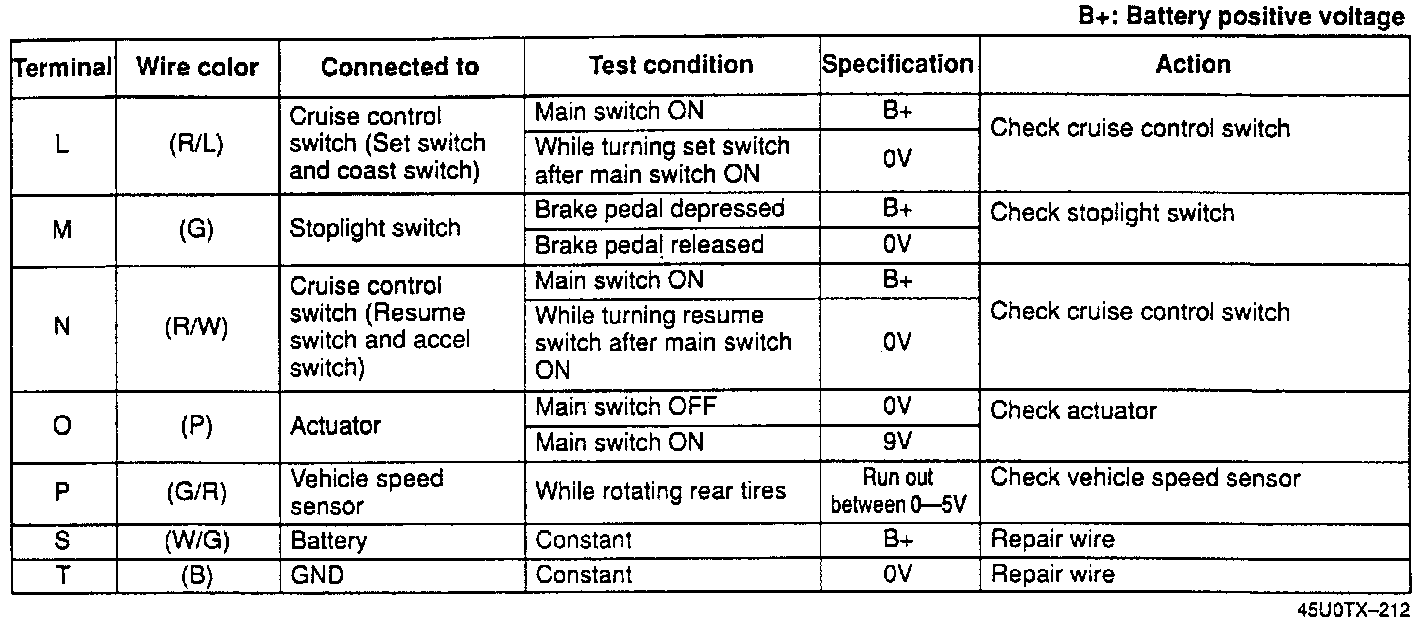

Terminal Voltage Chart:
