Control Assembly: Service and Repair

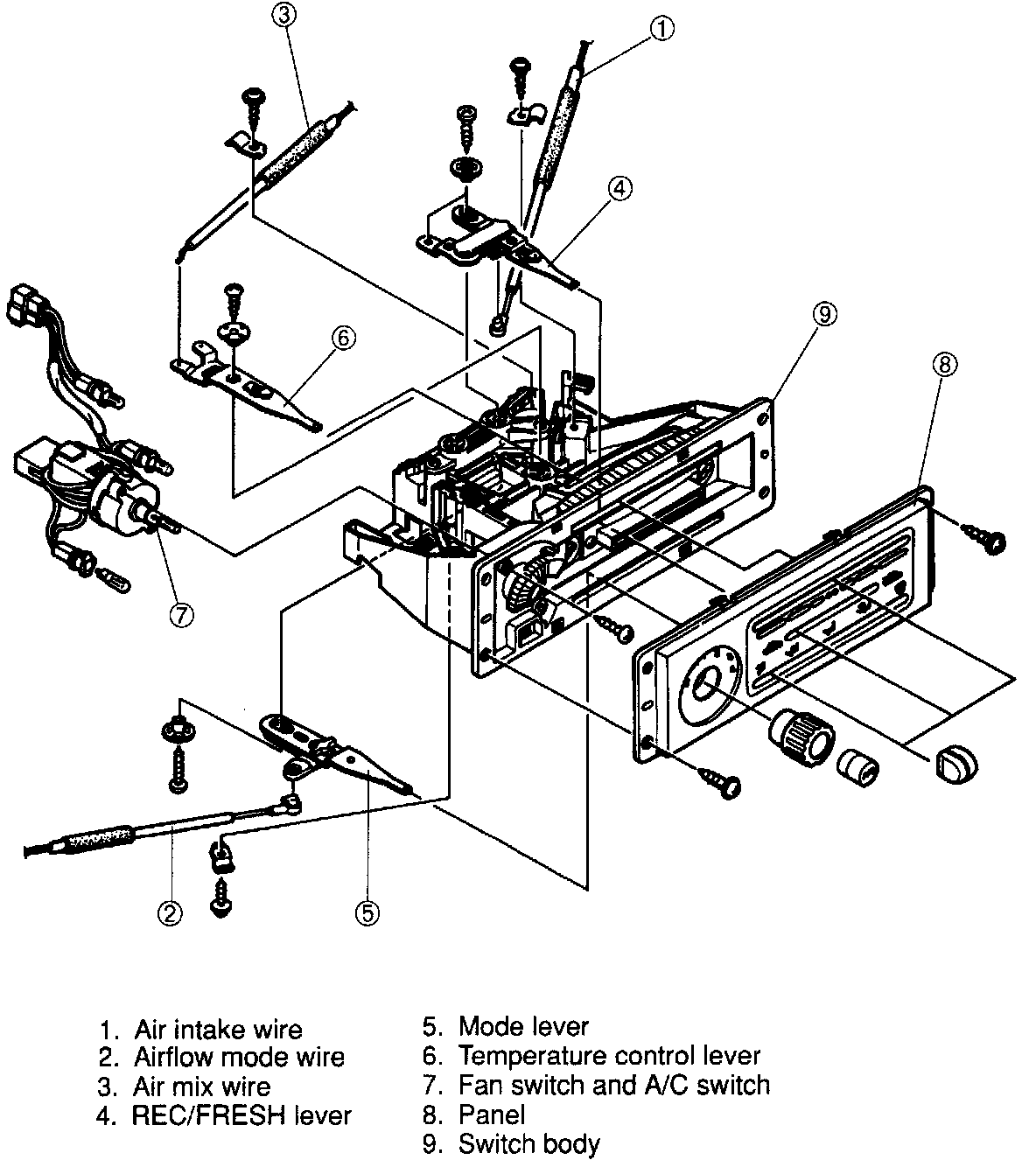

Control Unit Disassembly / Assembly





1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
