Mazda
>>
1994
>>
MX-3 V6-1844cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
System Specifications
>>
Terminals 3O-3Z
Terminals 3O-3Z

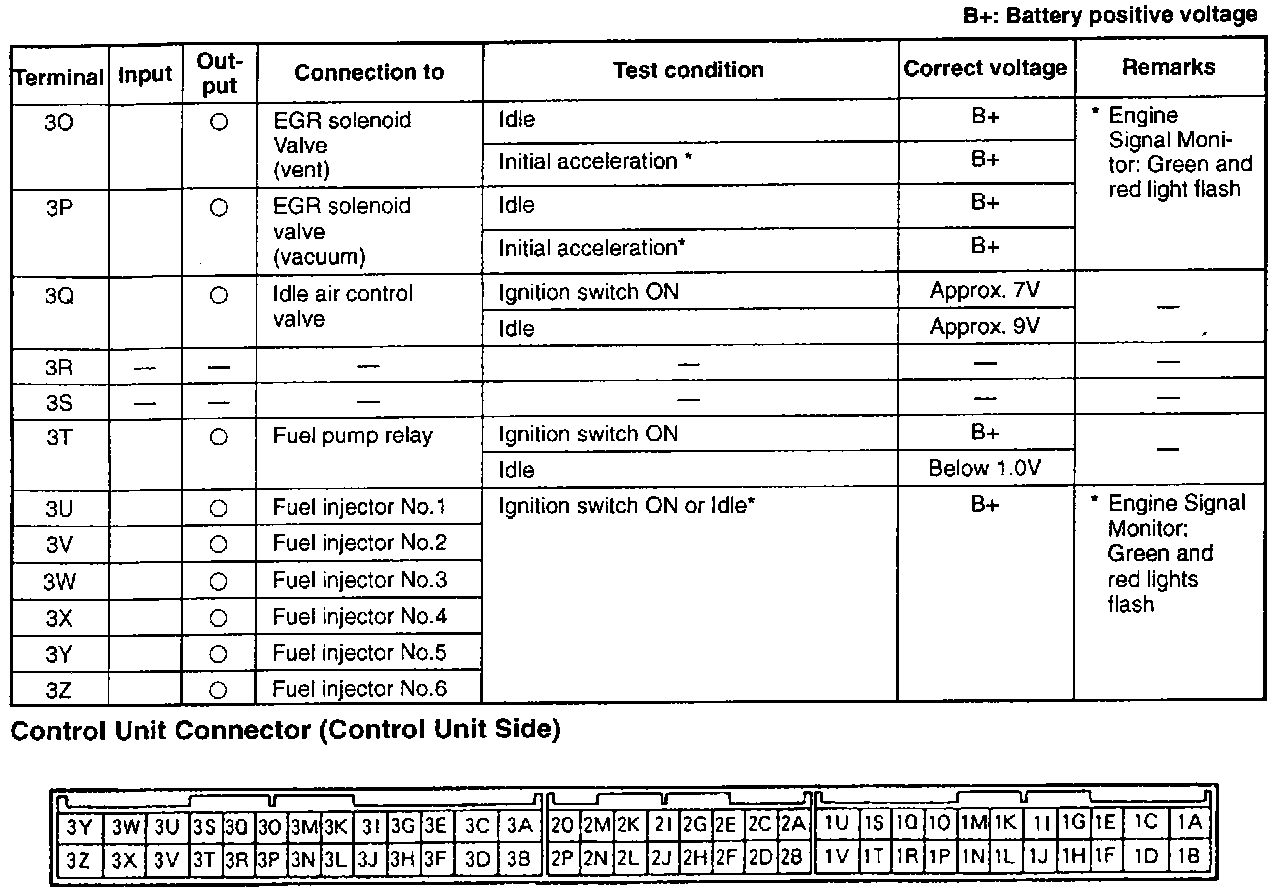

Terminal Voltage (Part 4):
