Neutral Switch (MTX)

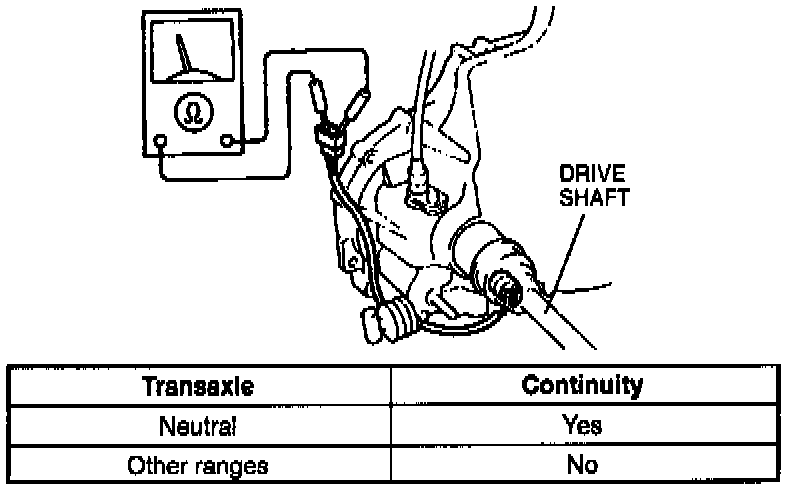

Neutral Switch: Test Connections and Specifications:

1. Disconnect the neutral switch connector.
2. Check switch continuity with an ohmmeter.
- With transaxle in neutral, continuity should exist between switch terminals.
- With transaxle in gear, there should be NO continuity between switch terminals.
3. If not as specified, replace switch.
