Neutral Switch (MTX)

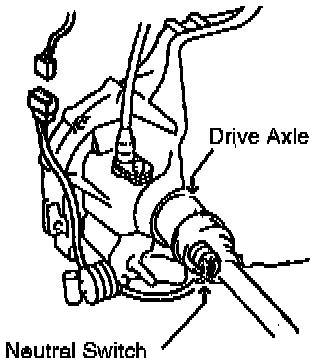

View: Neutral Switch:

REMOVAL
1. Disconnect the neutral switch connector.
2. Remove the bracket.
3. Remove the neutral switch.

INSTALLATION
1. Install new switch and tighten to 20 - 29 Nm (15 - 21 ft.lb.)
2. Install previously removed bracket.
3. Reconnect neutral switch connector.

NOTE: Check and top off transaxle fluid level as necessary, following neutral switch replacement.
