Dechoke Control System

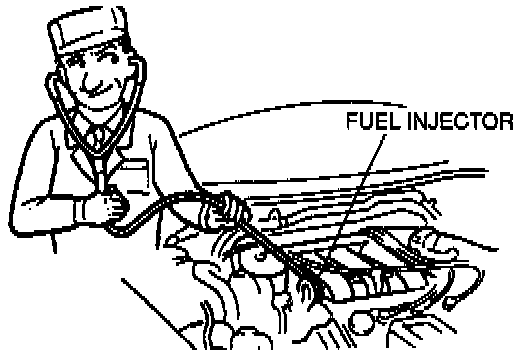

Listen For Injector Operating ("Click") Sound:

SYSTEM INSPECTION
1. Turn the ignition switch to START and verify that the fuel injector operating sound is heard.
2. Depress the accelerator pedal fully and turn the ignition switch to START Verify that no fuel injector operating sound is heard.
3. If fuel injector operating sound is heard, check powertrain control module engine (PCME) terminal 1C and 2F voltage.

Refer to Normal Scan Data Values - Control Module Pinout Values.
