Federal Model

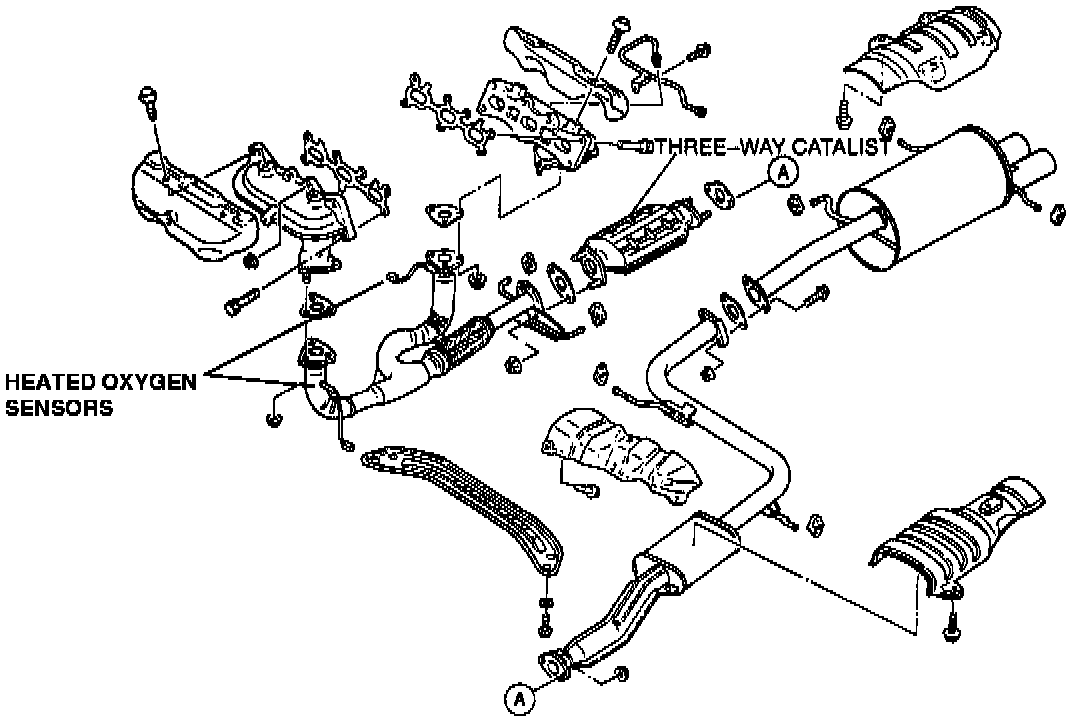

View: Heated Oxygen Sensors:




Located in the exhaust "Y" pipe below each exhaust manifold, one per engine bank.
