Component Locations

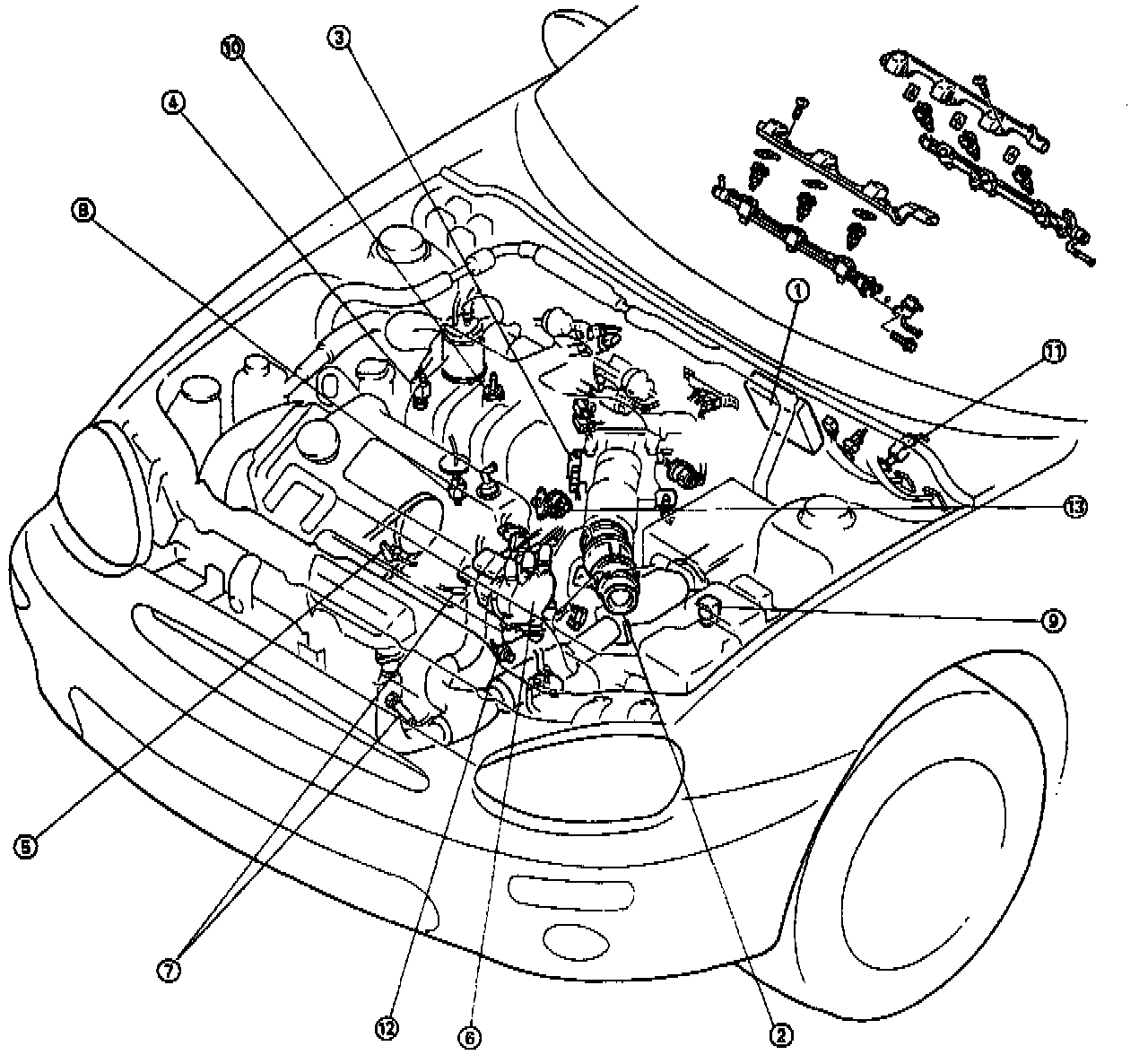

View: Control System Components:

1. Powertrain control module (engine) (PCME)
2. Volume airflow sensor
3. Throttle position sensor
4. Engine coolant temperature sensor
5. Crankshaft position sensor 2
6. Crankshaft position sensor 1
7. Heated oxygen sensor
8. Knock sensor
9. Main relay
10. Steering pressure sensor
11. Clutch switch
12. Neutral switch
13. EGR function sensor
