Home >> Mazda >> 1994 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Torque Specifications

Torque Specifications

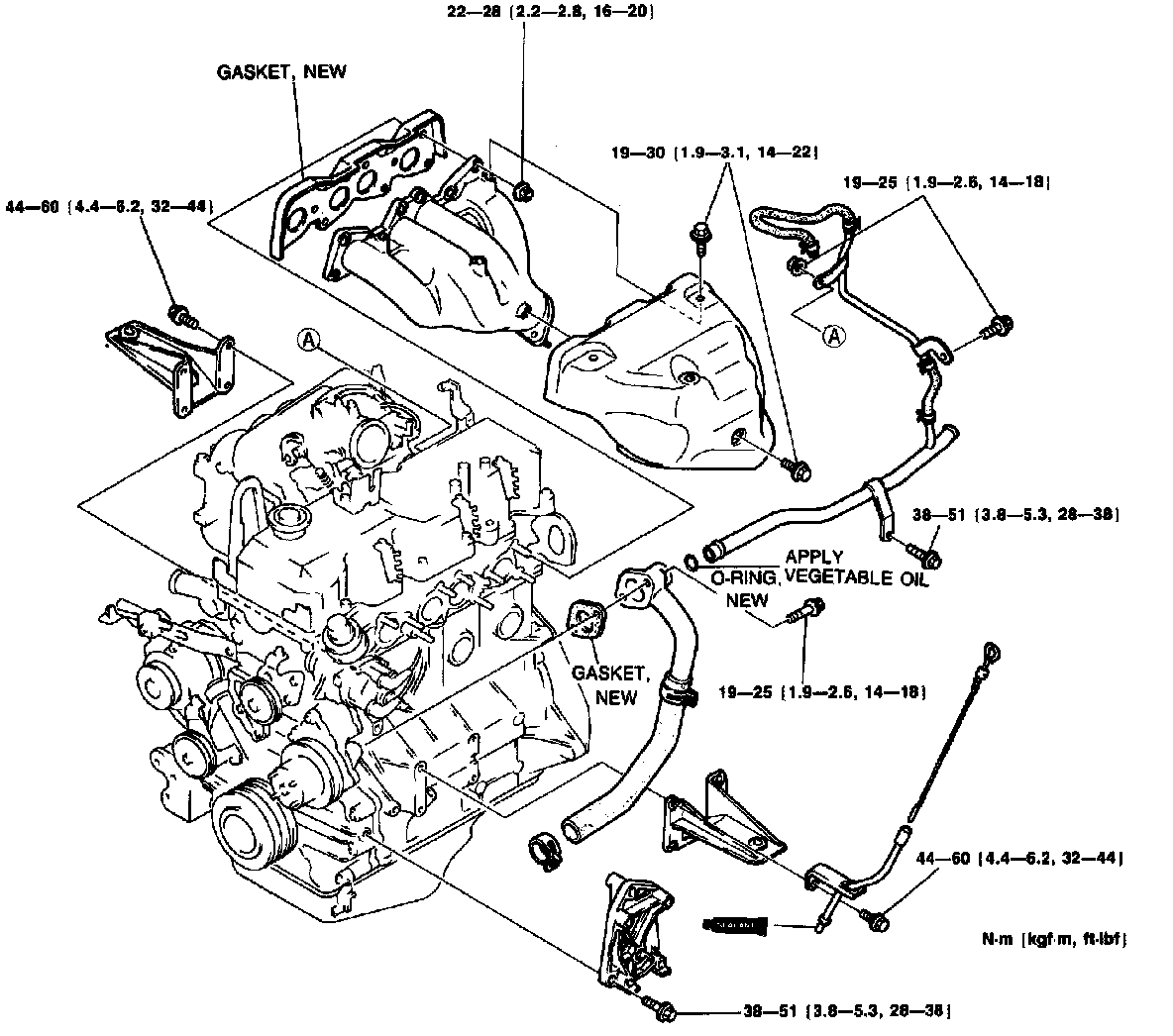

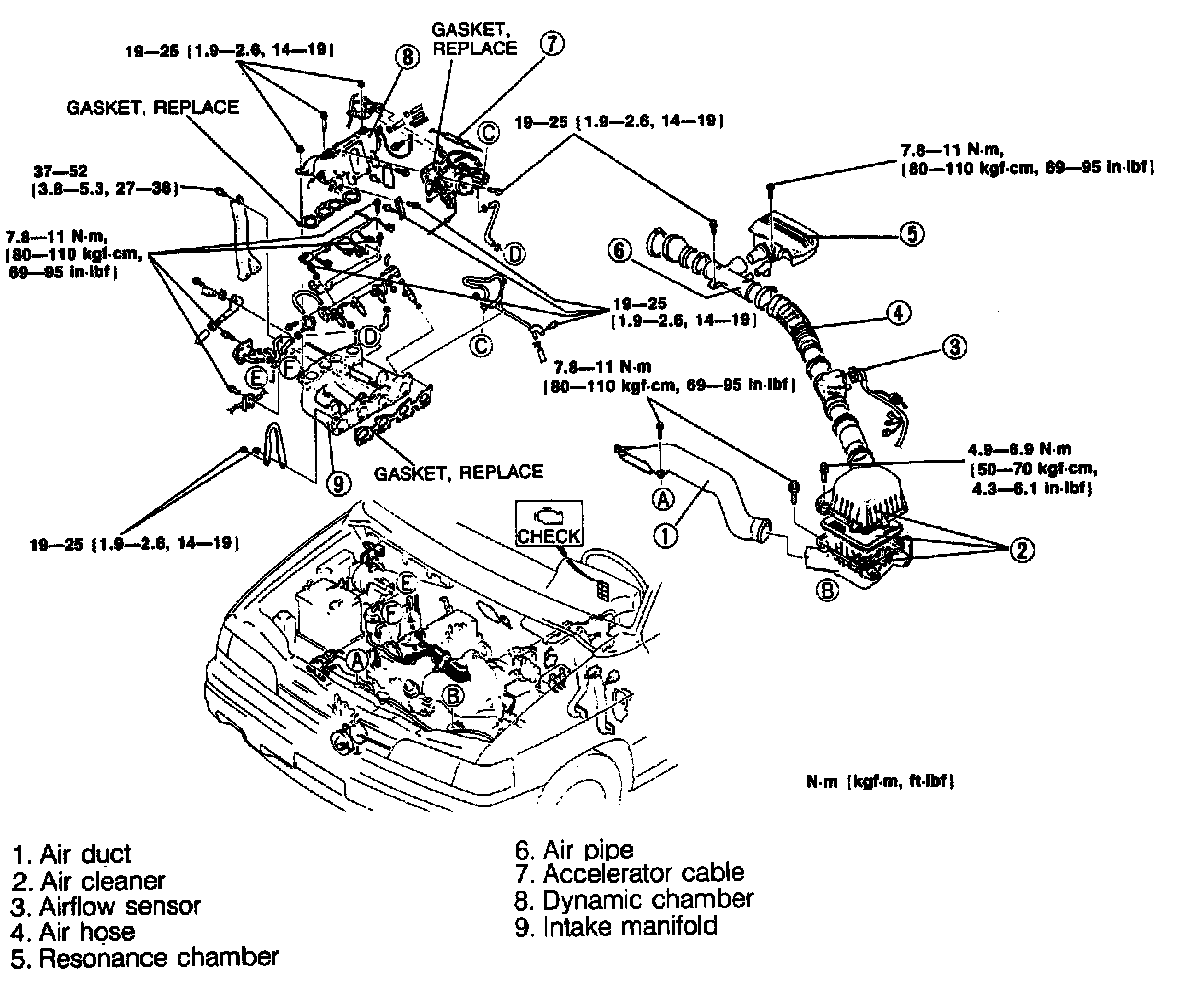

Intake:

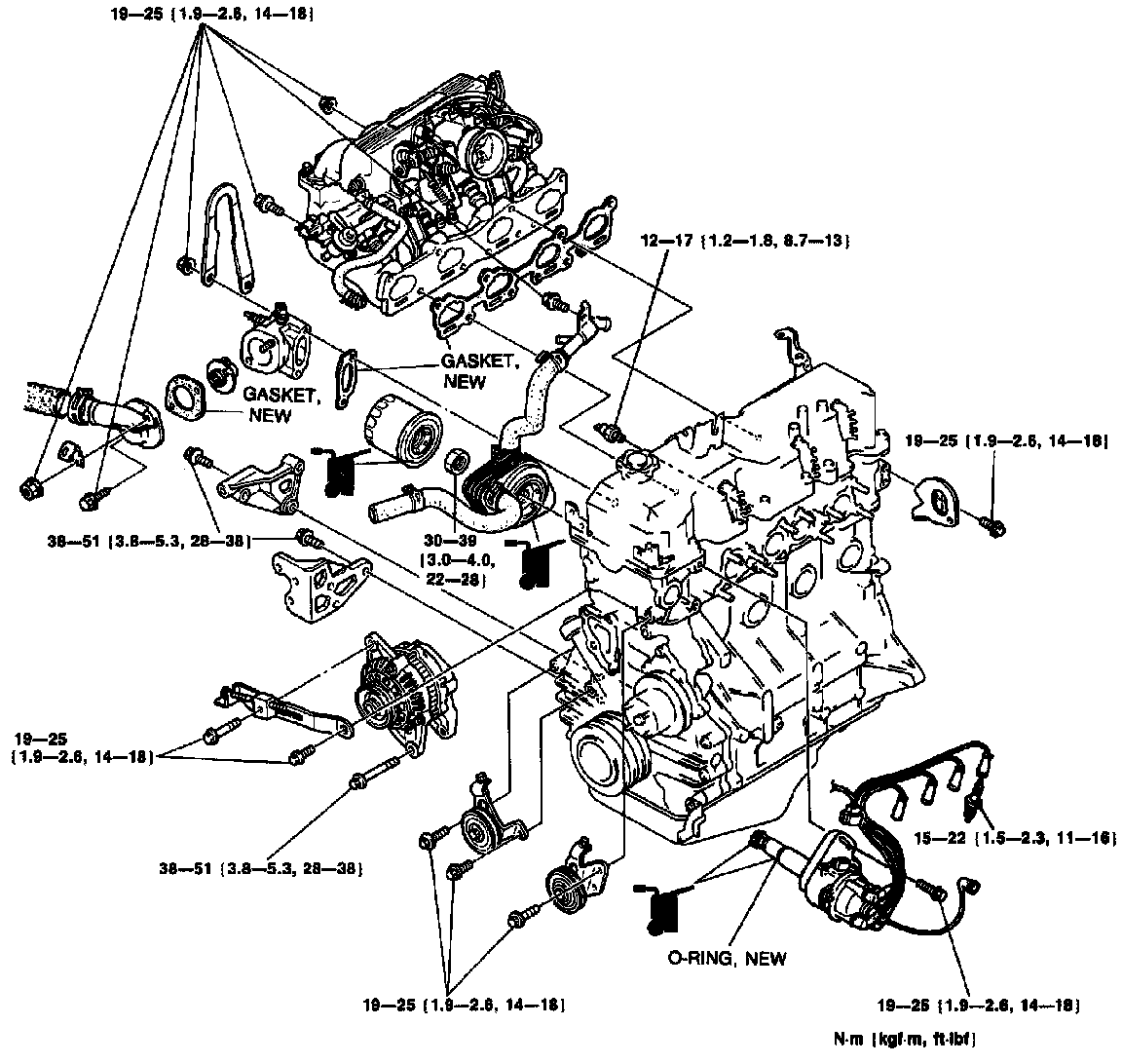

Upper Engine:

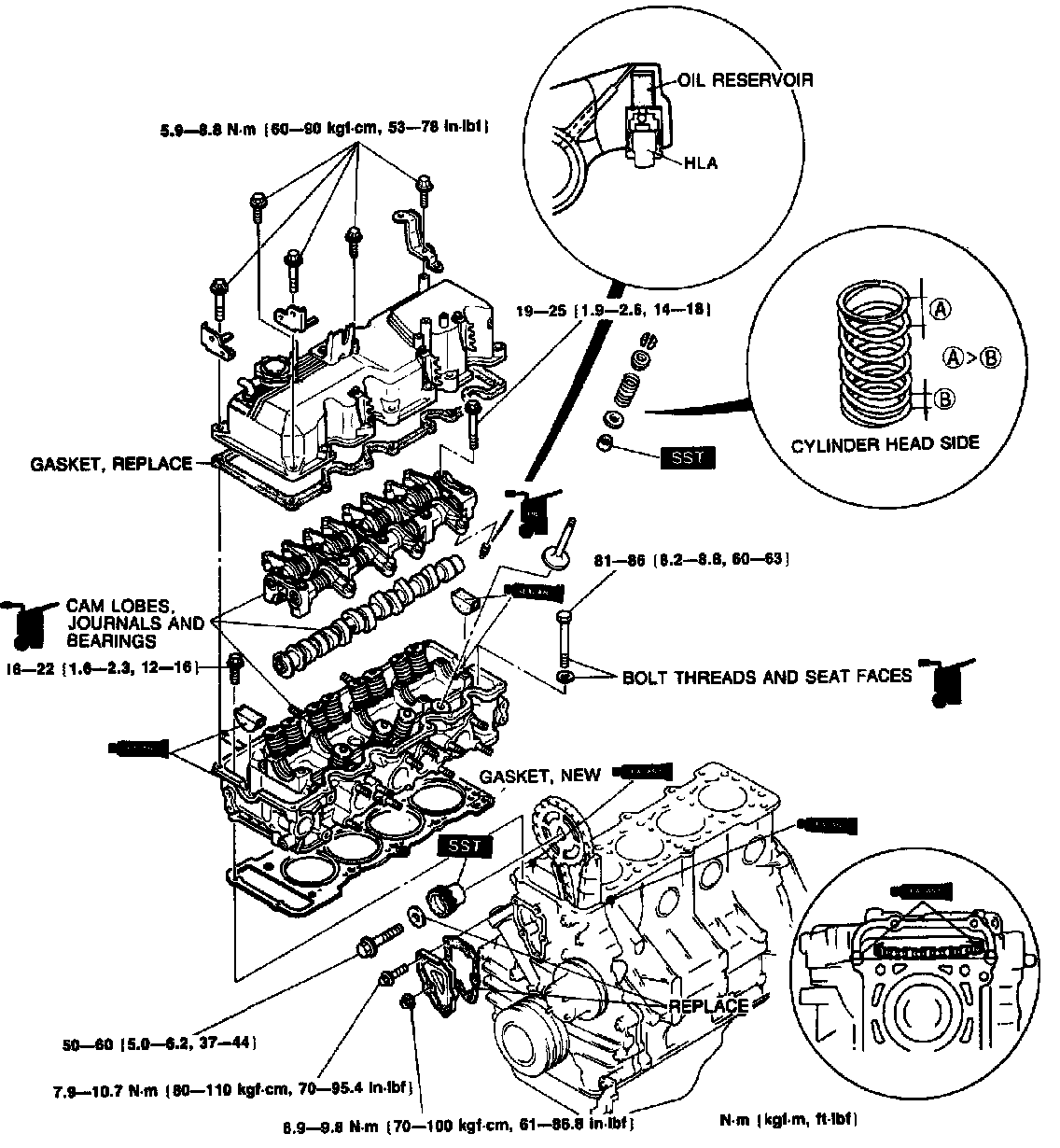

Head Bolt Torque/Sequence:
