Camber & Caster

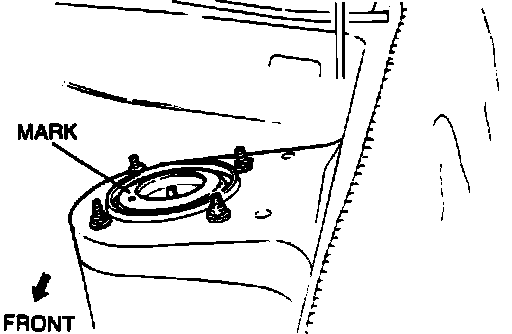

Fig. 1 Front Camber & Caster Adjustment:

1. Raise and support front of vehicle, then open hood.
2. Remove four shock absorber mounting block to fender attaching nuts.
3. Push mounting block downward and turn it until specified angles are obtained, Fig. 1.
4. Install four shock absorber mounting block to fender attaching bolts. Torque bolts to 22-27 ft. lbs.
