Torque Specifications

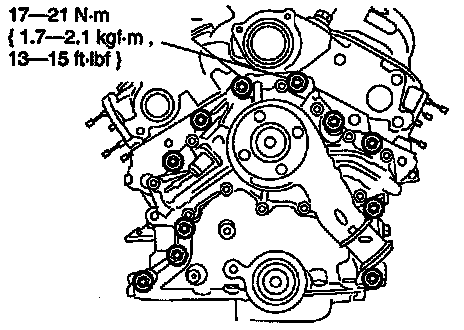

Timing Cover:

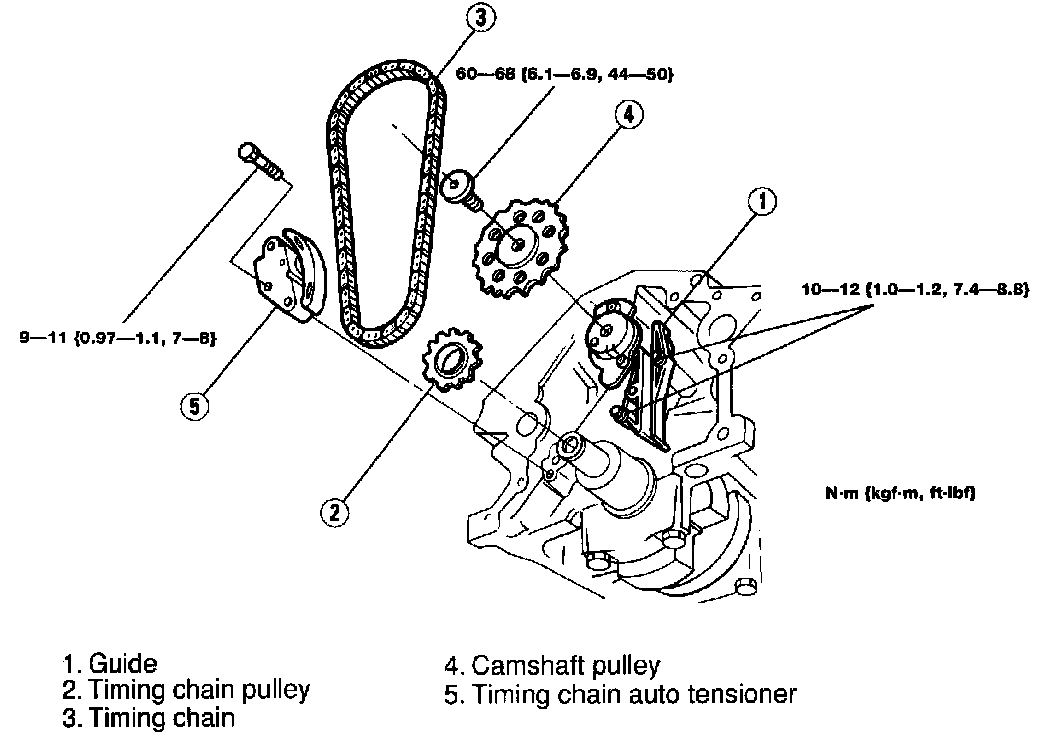

Timing Components:

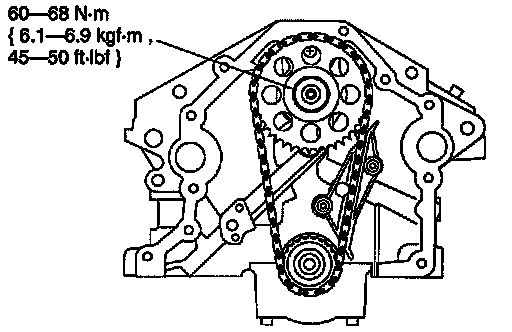

Camshaft Bolt:

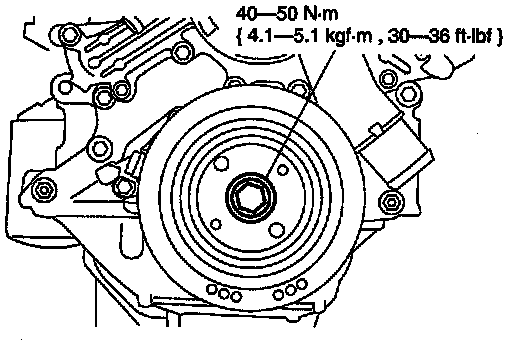

Vibration Dampner:

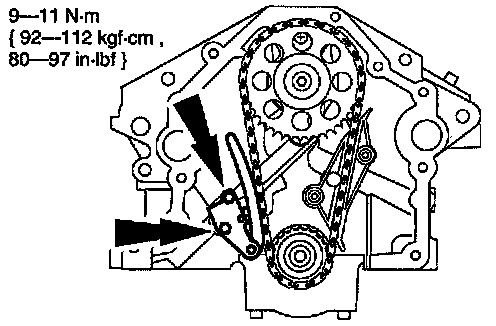

Timing Tensioner:

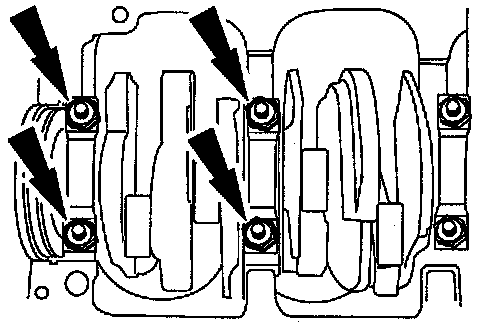

Crankshaft Bearing Caps:

Tighten the five bolts and the three studs in pairs in two steps:
1) Tighten to 35 Nm (25 ft. lbs.).
2) Tighten an additional 57 degrees.

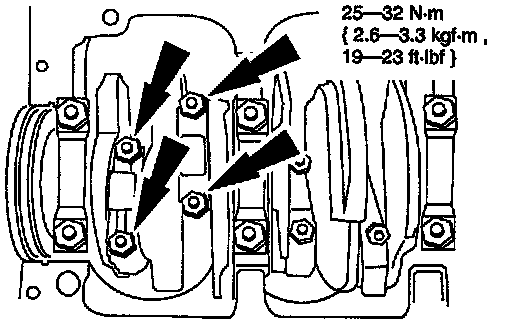

Connecting Rod Nuts:

1) Tighten the nuts in pairs.

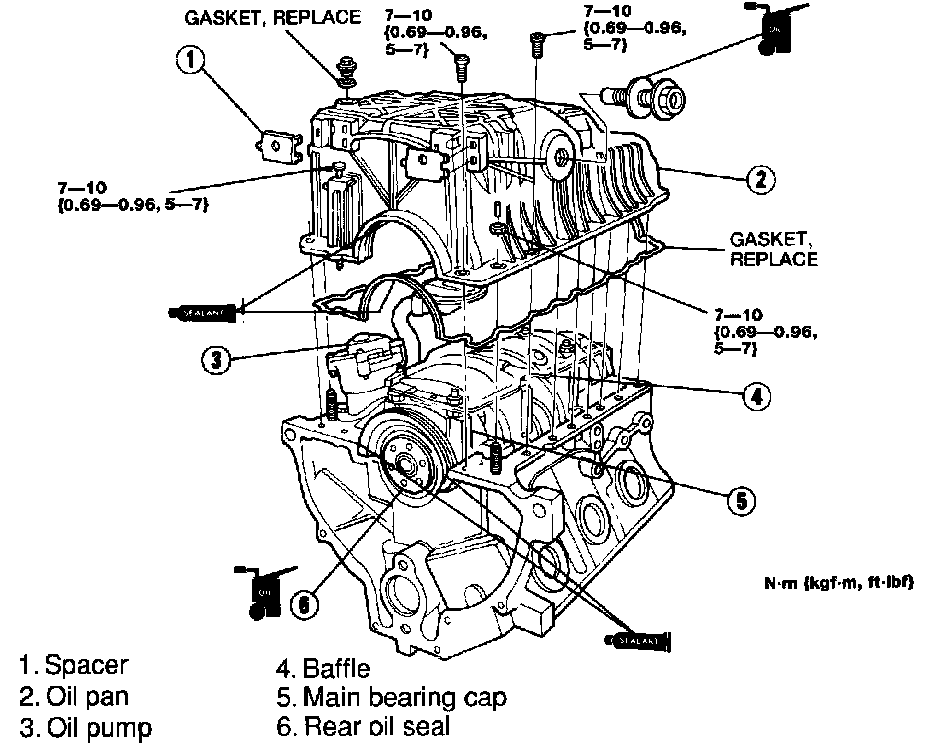

Oil Baffle:

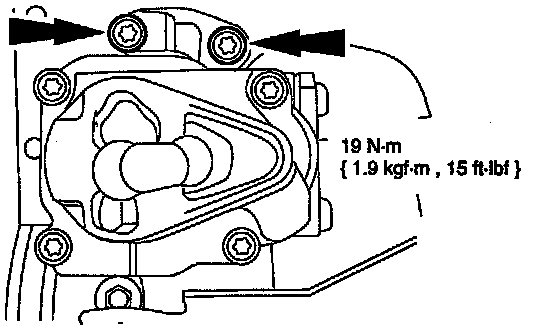

Oil Pump Bolts:

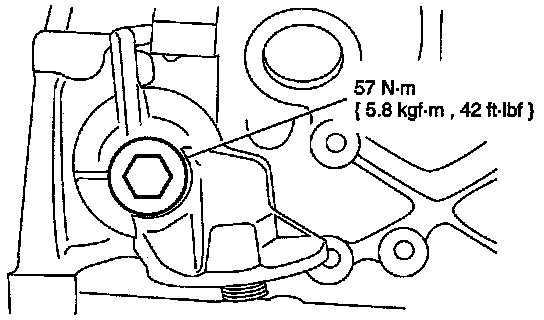

Oil Filter Adapter:

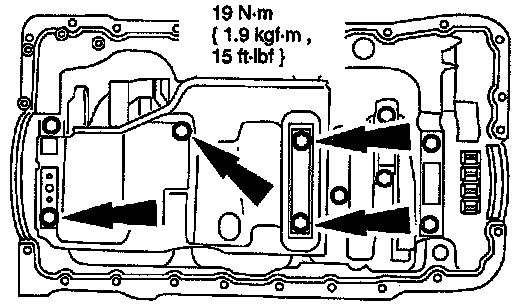

Oil Pan:

Flex Plate (A/T) Torque/Sequence:

Flywheel (M/T) Torque/Sequence:
