B3000 4WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
Engine Control Module
>>
PCM Pins 52 Through 60

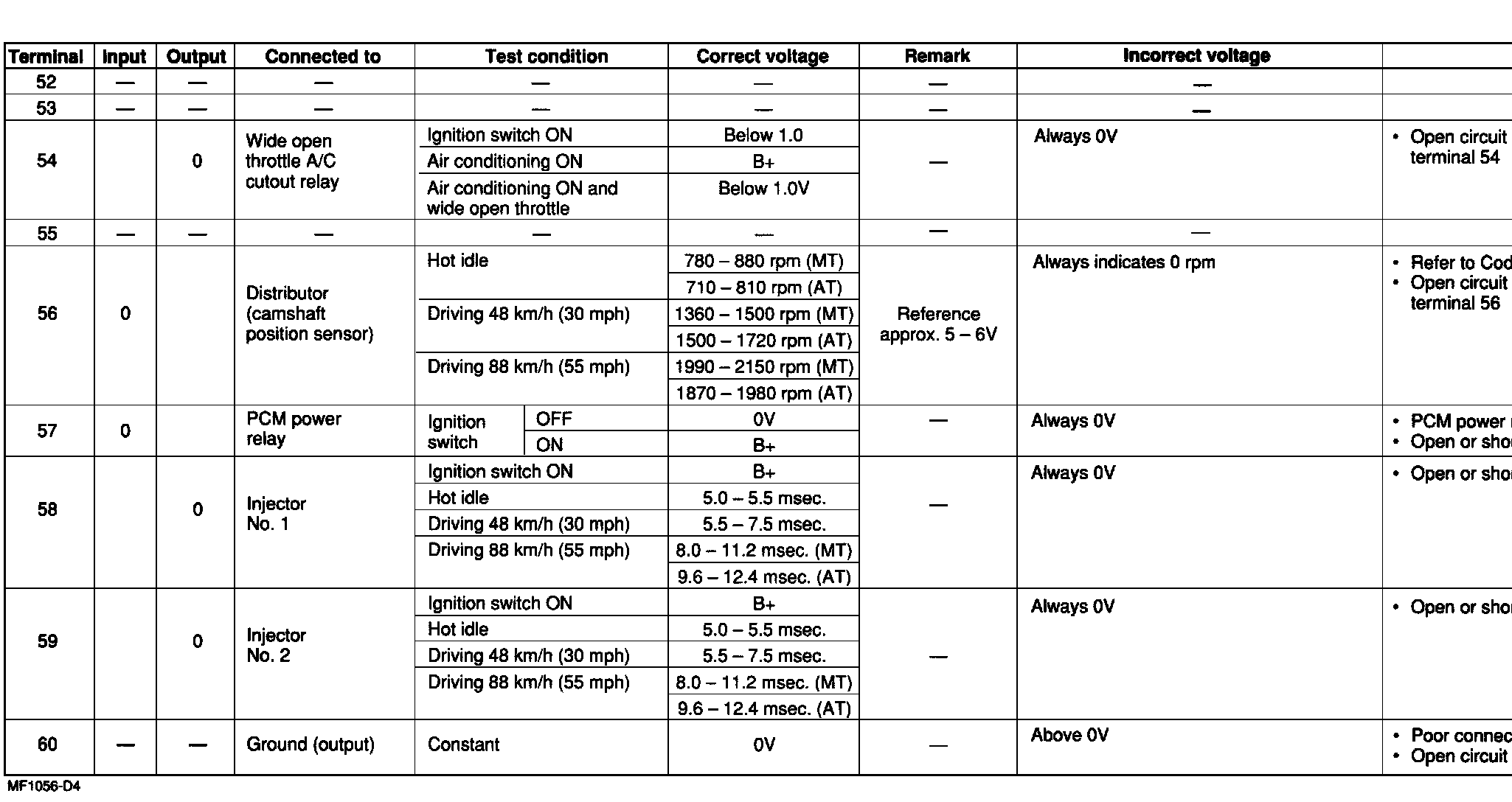

PCM Pins 52 Through 60
�� PCM Pins 52 Through 60 NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values may vary with axle ratios and tire size.:
