Spark Plug: Testing and Inspection

INSPECTION
Check the following points. If a problem is found, replace the spark plug.

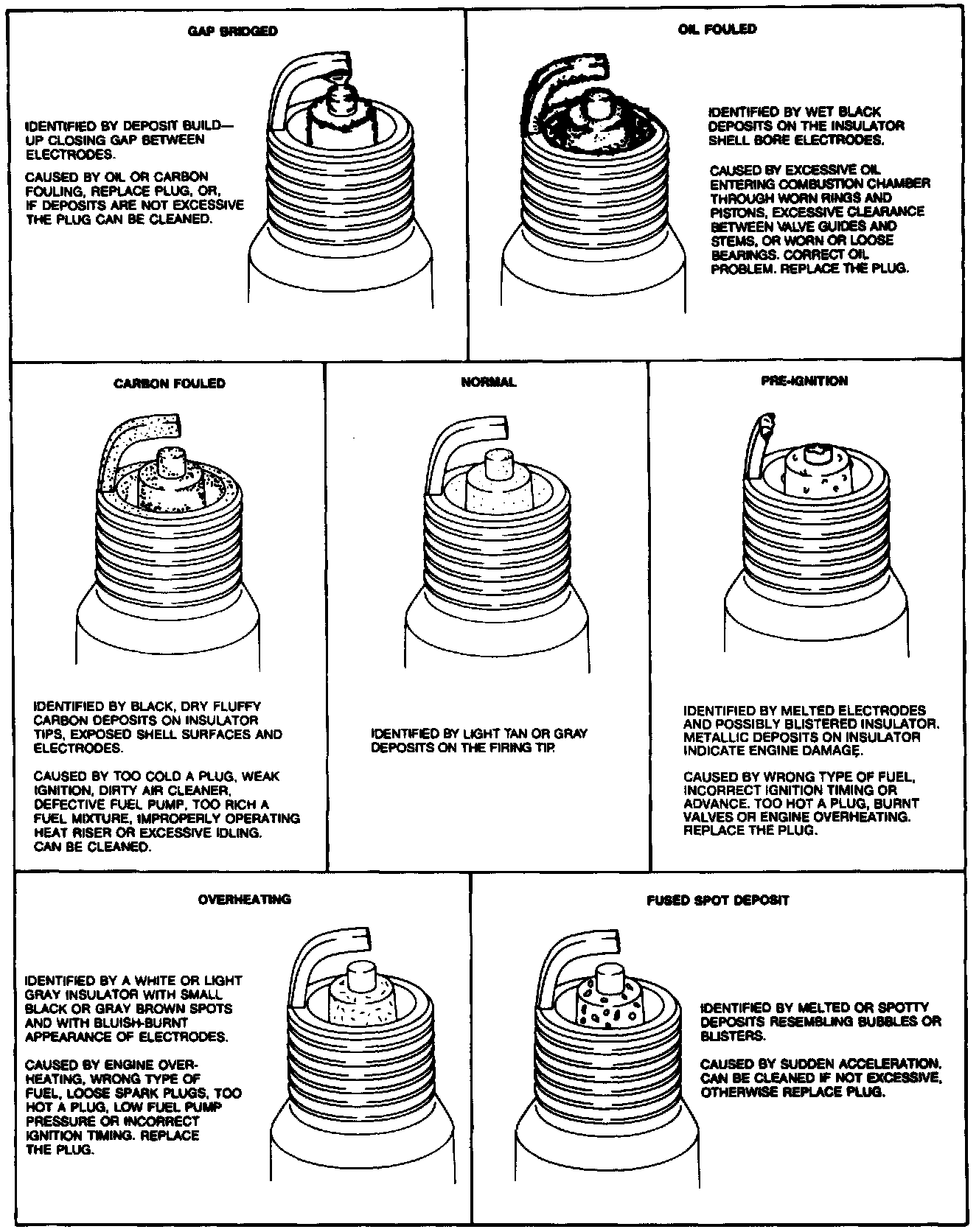

Spark Plug Inspection:





- Damaged insulation
- Worn electrodes
- Carbon deposits. If cleaning is necessary, use a plug cleaner or a wire brush. Clean the upper insulator, also.
- Damaged gasket
- Burnt
