LEMON Manuals: Even more car manuals for everyone
Home >> Mazda >> 1994 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Flowchart 1

Flowchart 1

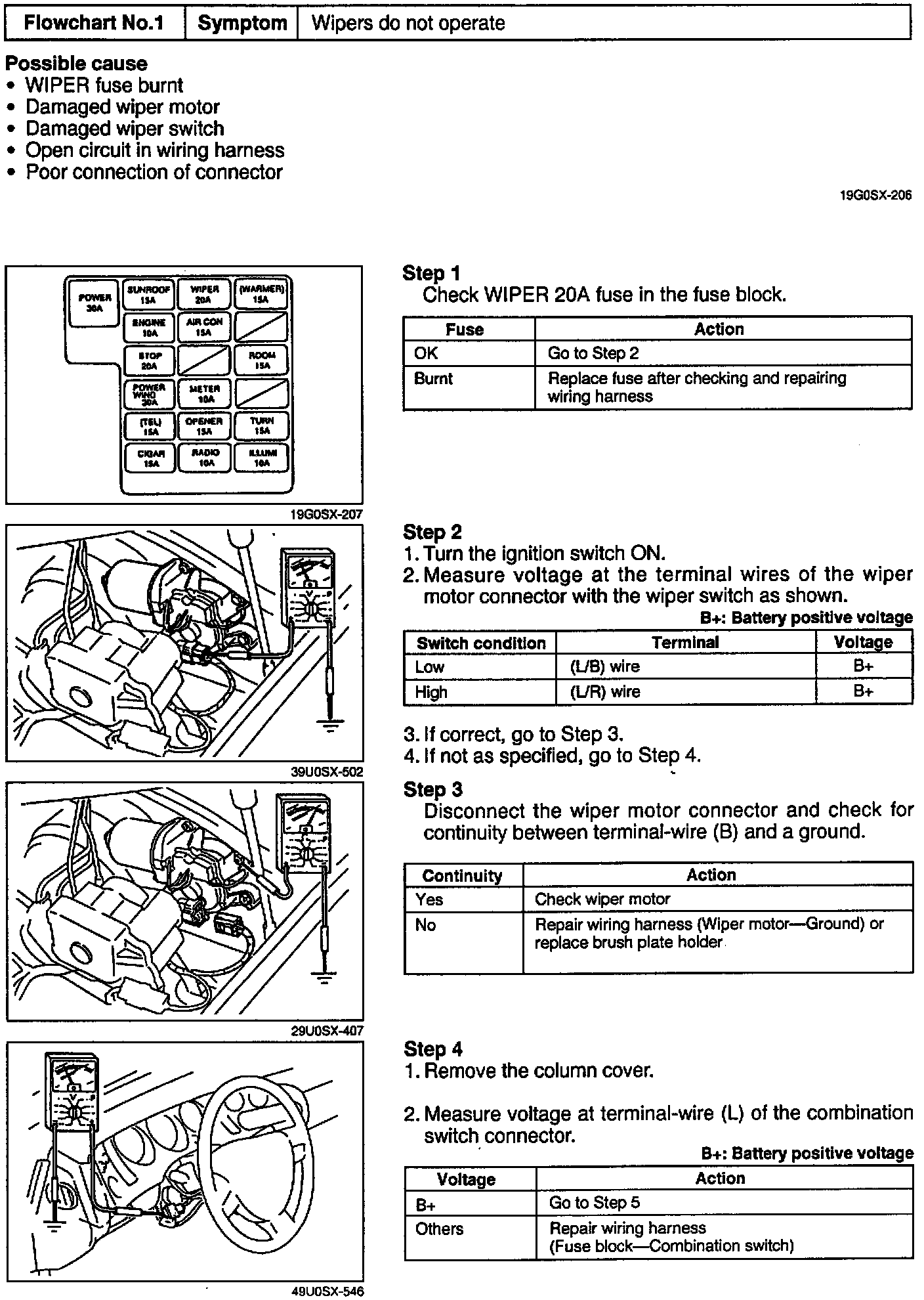

Flowchart 1 - Wipers Do Not Operate (Part 1):

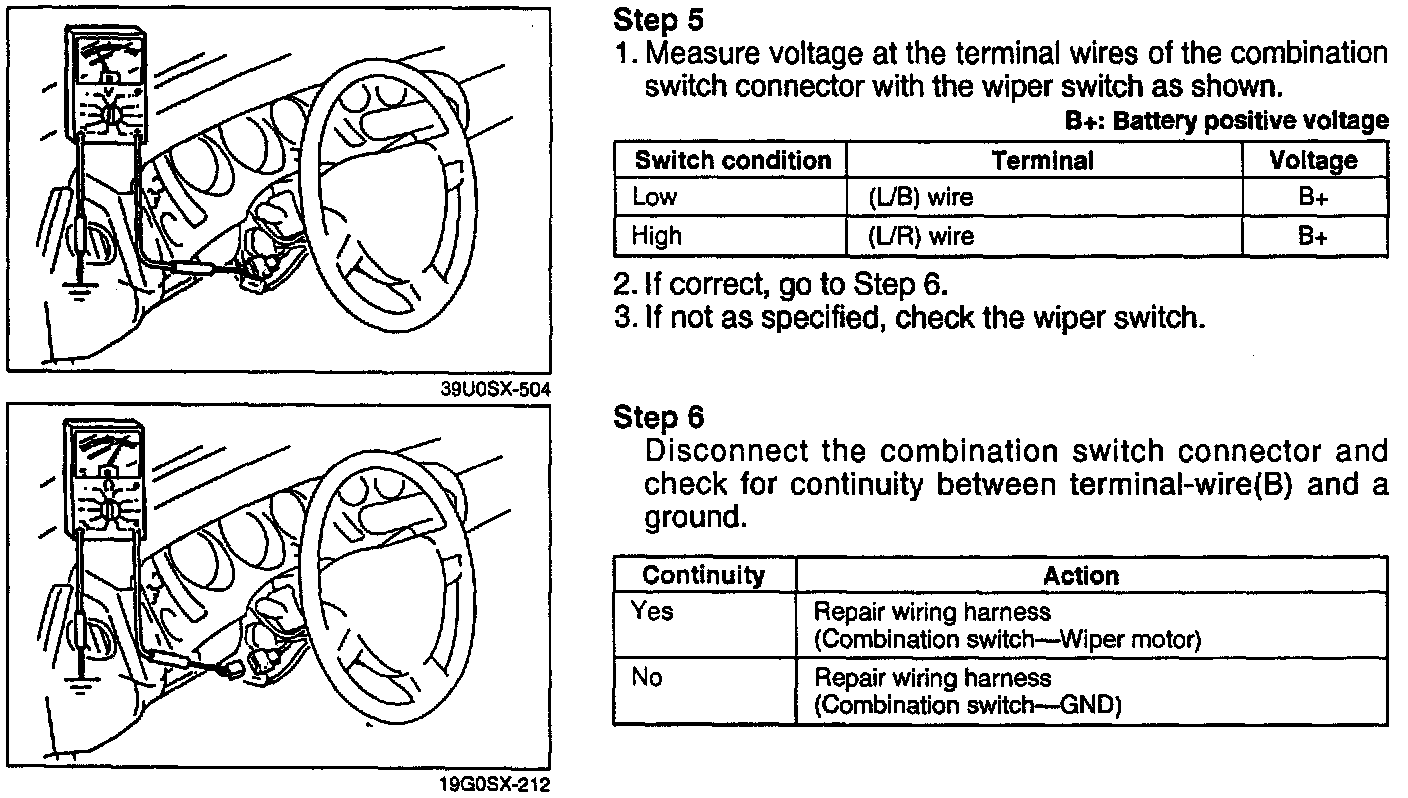

Flowchart 1 - Wipers Do Not Operate (Part 2):
