Home >> Mazda >> 1994 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Terminal 1O Through 1T

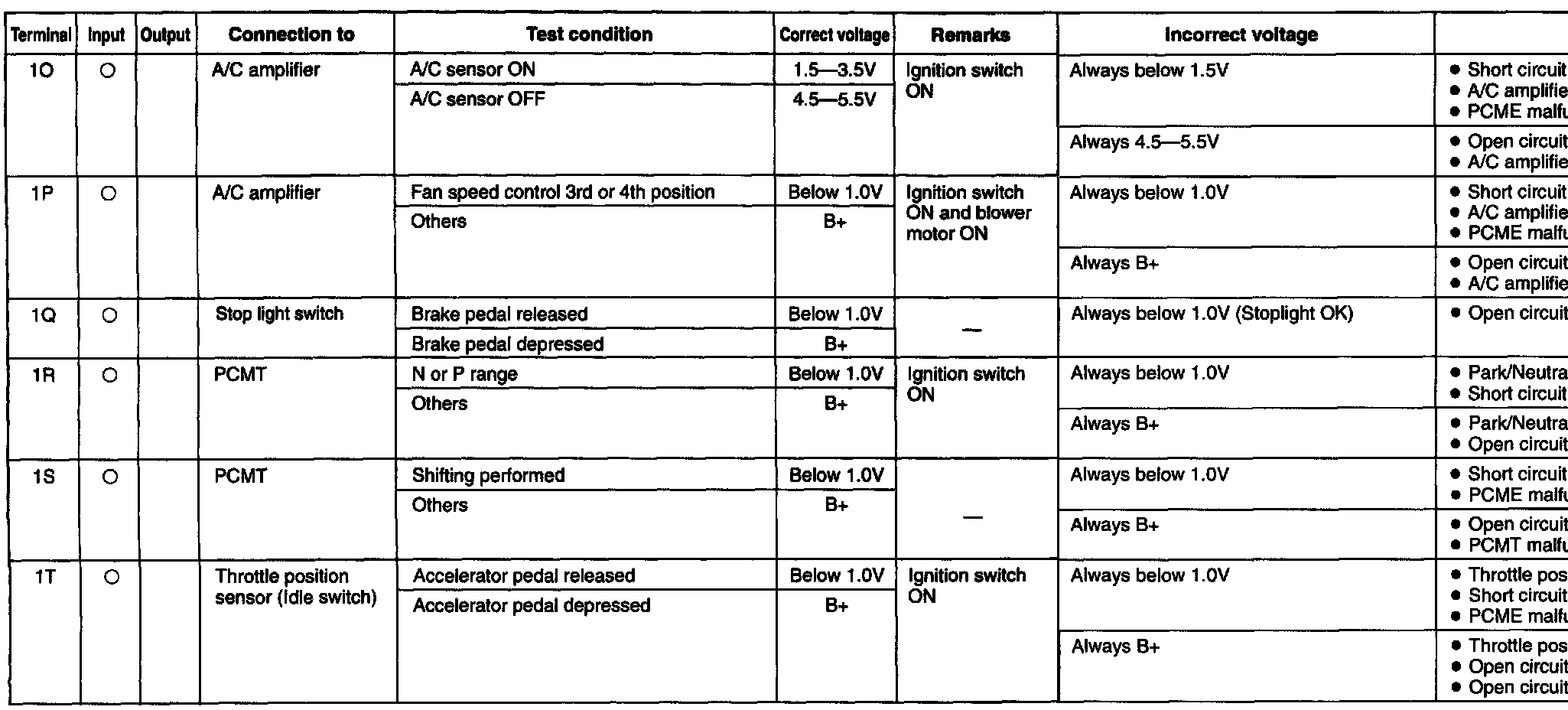

Terminal 1O Through 1T
