Cruise Control

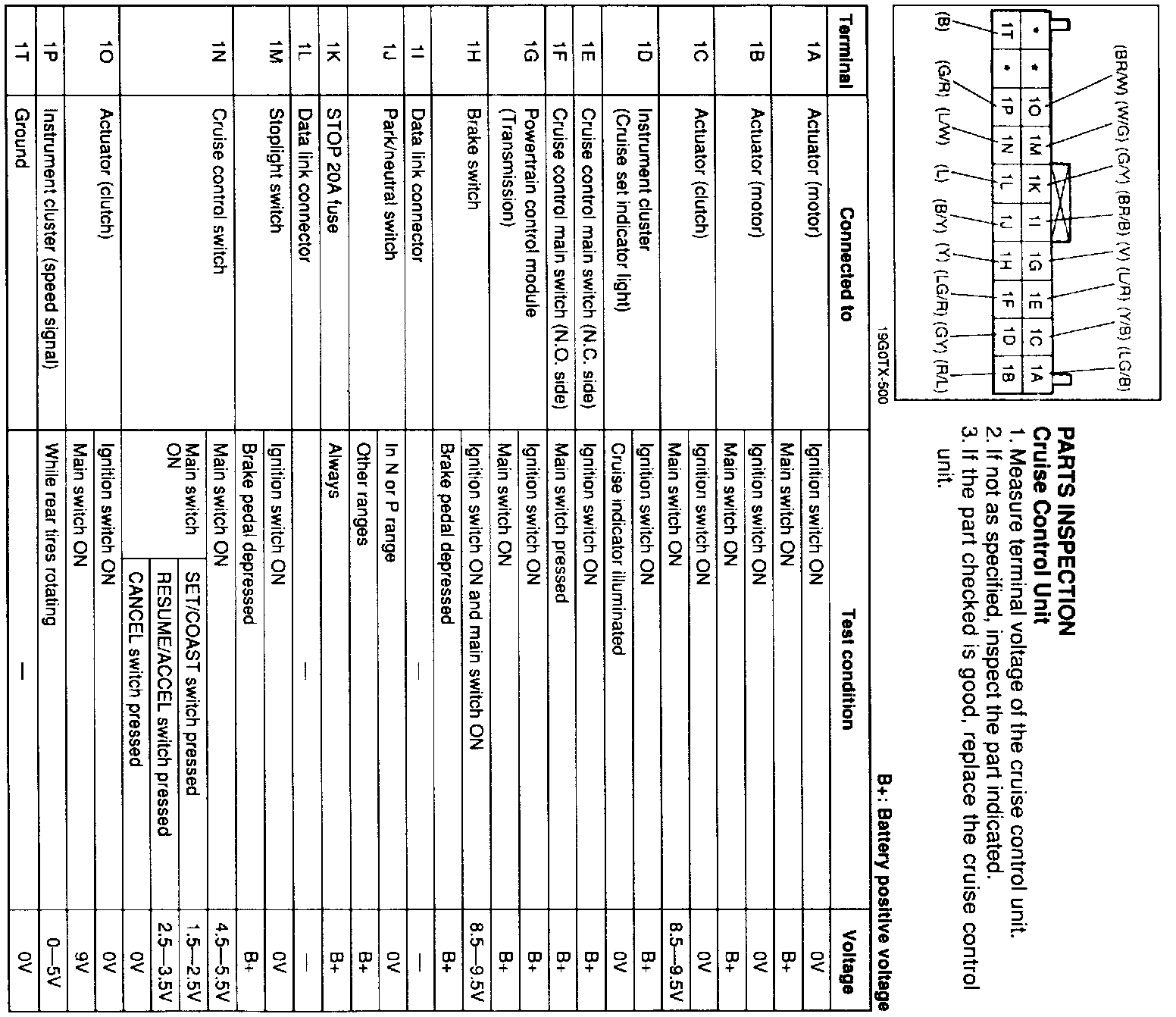

Terminal Voltage Chart:

Cruise Control Unit
1. Measure terminal voltage of the cruise control unit.
2. If not as specified, inspect the part indicated.
3. If the part checked is good, replace the cruise control unit.
