Home >> Mazda >> 1994 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Terminals 2D-2L

Terminals 2D-2L

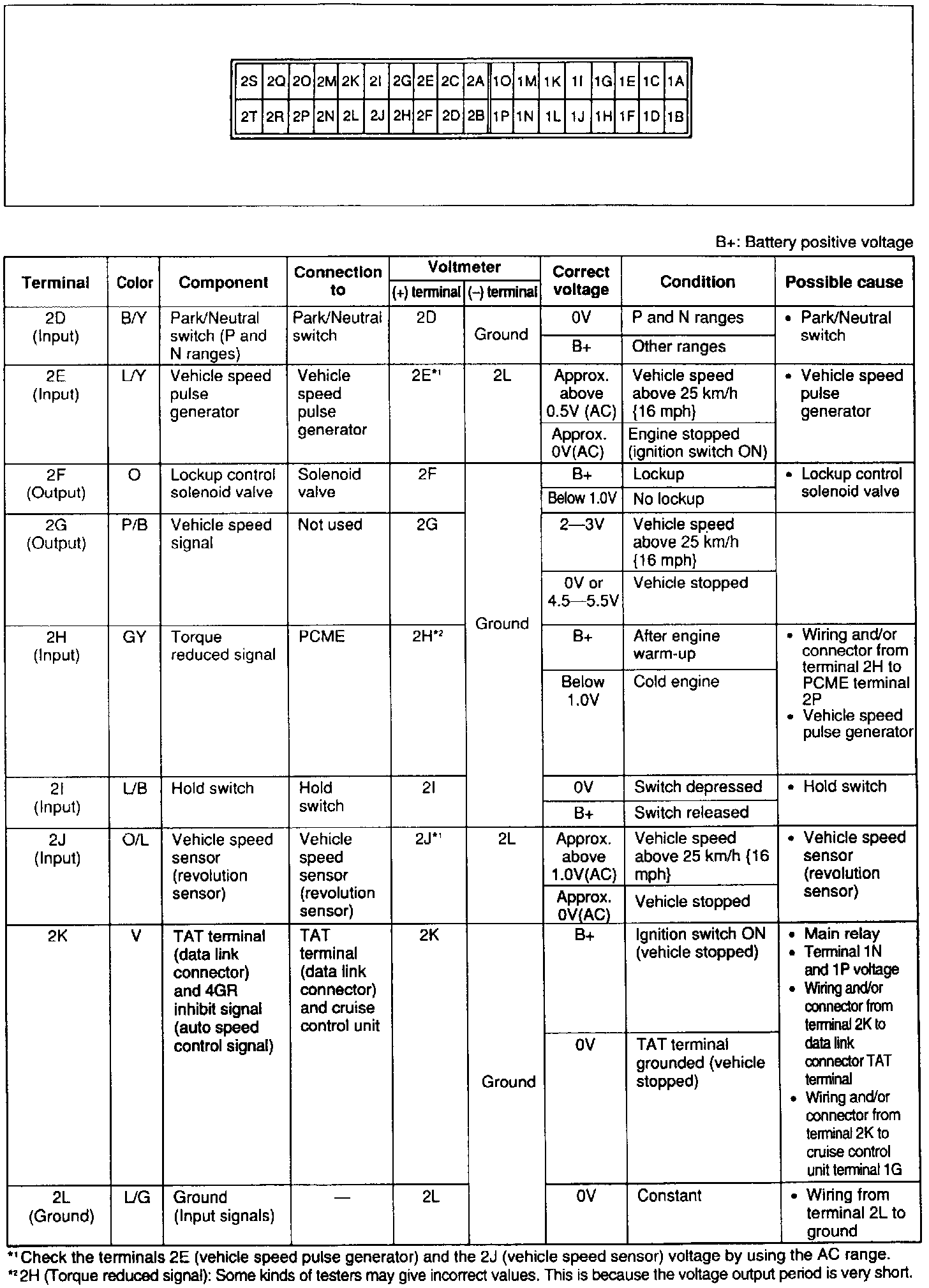

Terminal Voltage Chart:
