General Module

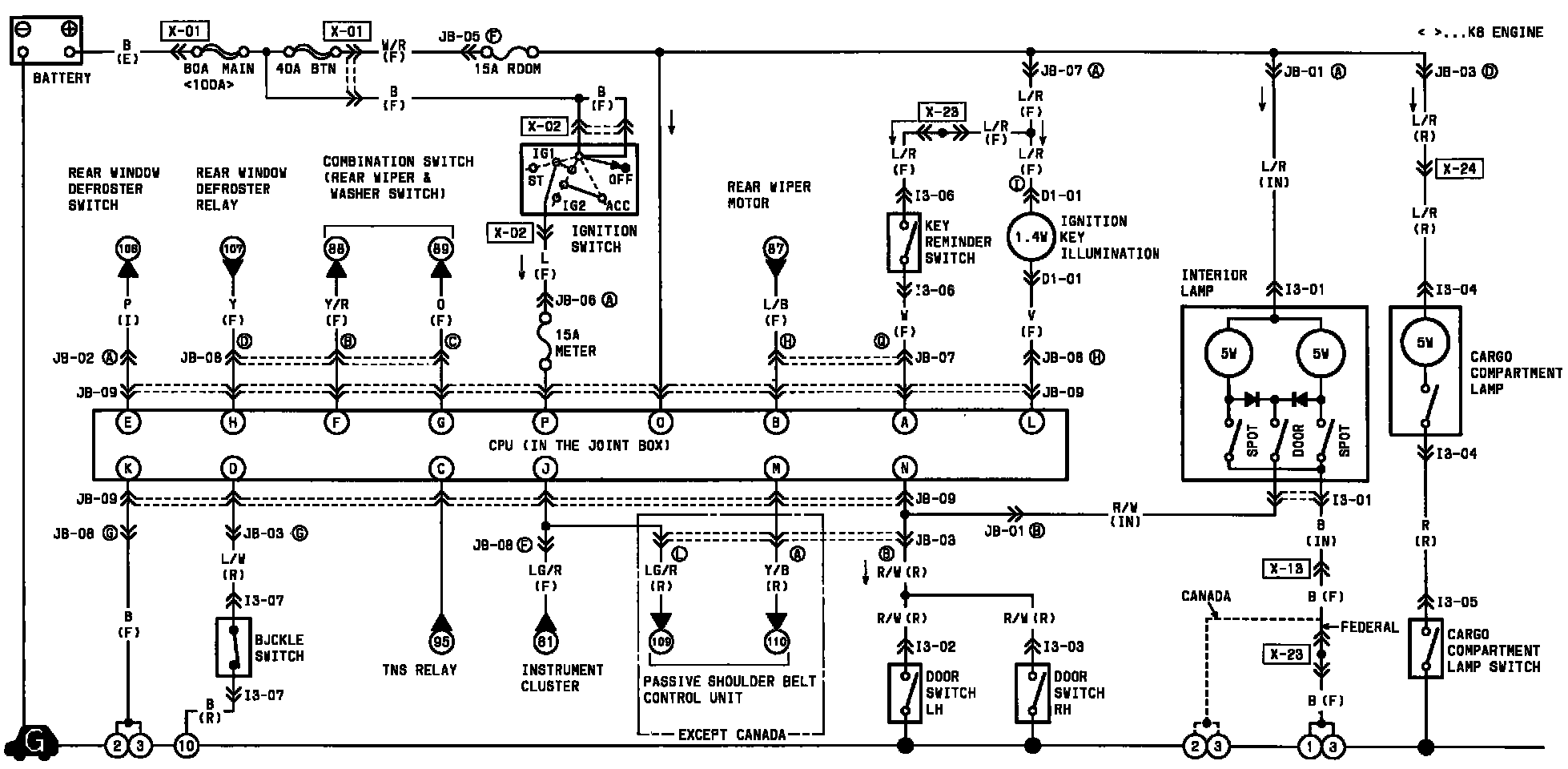

Interior Lamp, Cargo Compartment Lamp, Ignition Key Illumination, And Central Processing Unit (CPU:
