Body Control Module

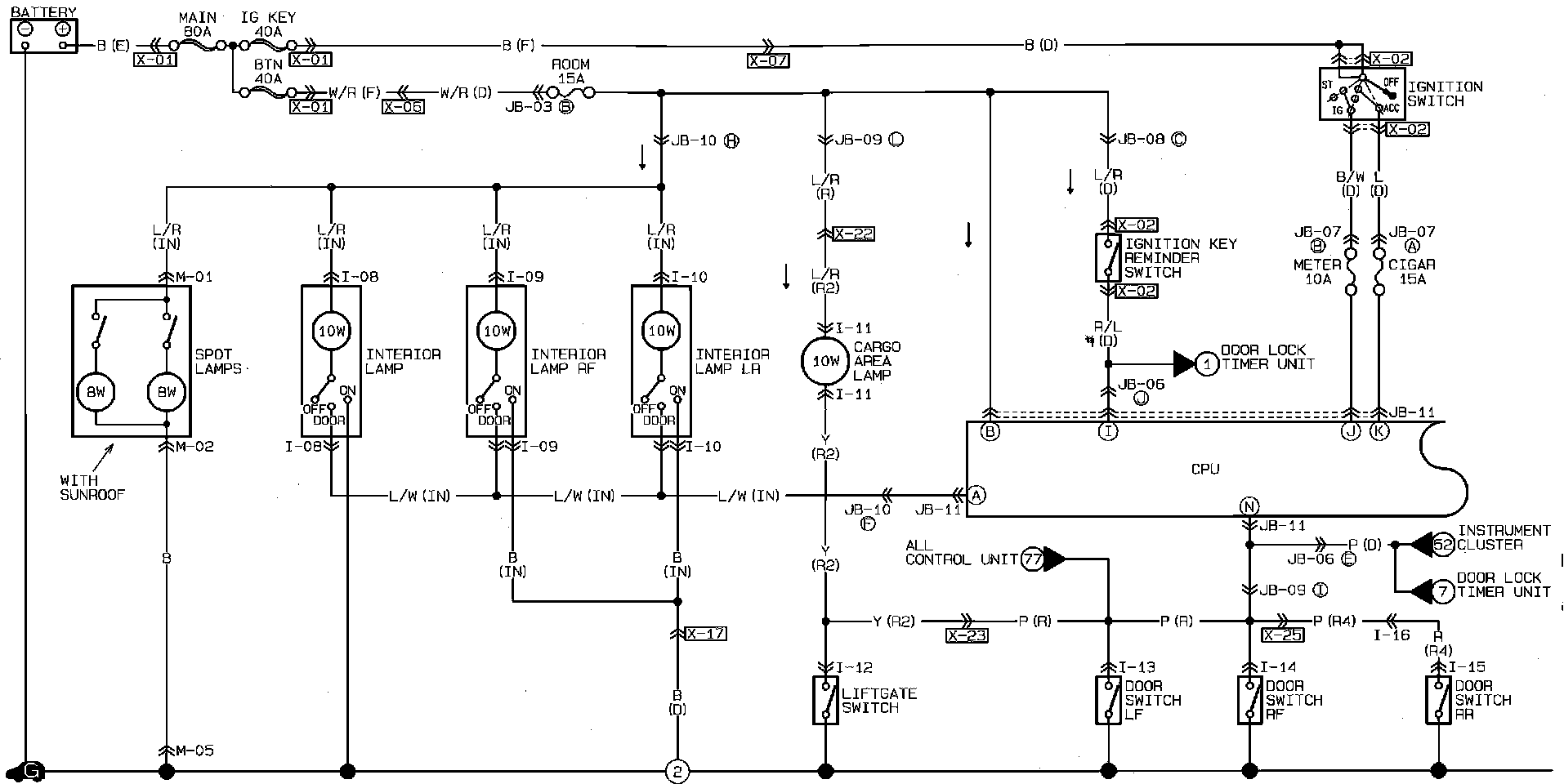

Interior Lamps, Spot Lamps, And Central Processing Unit (CPU):

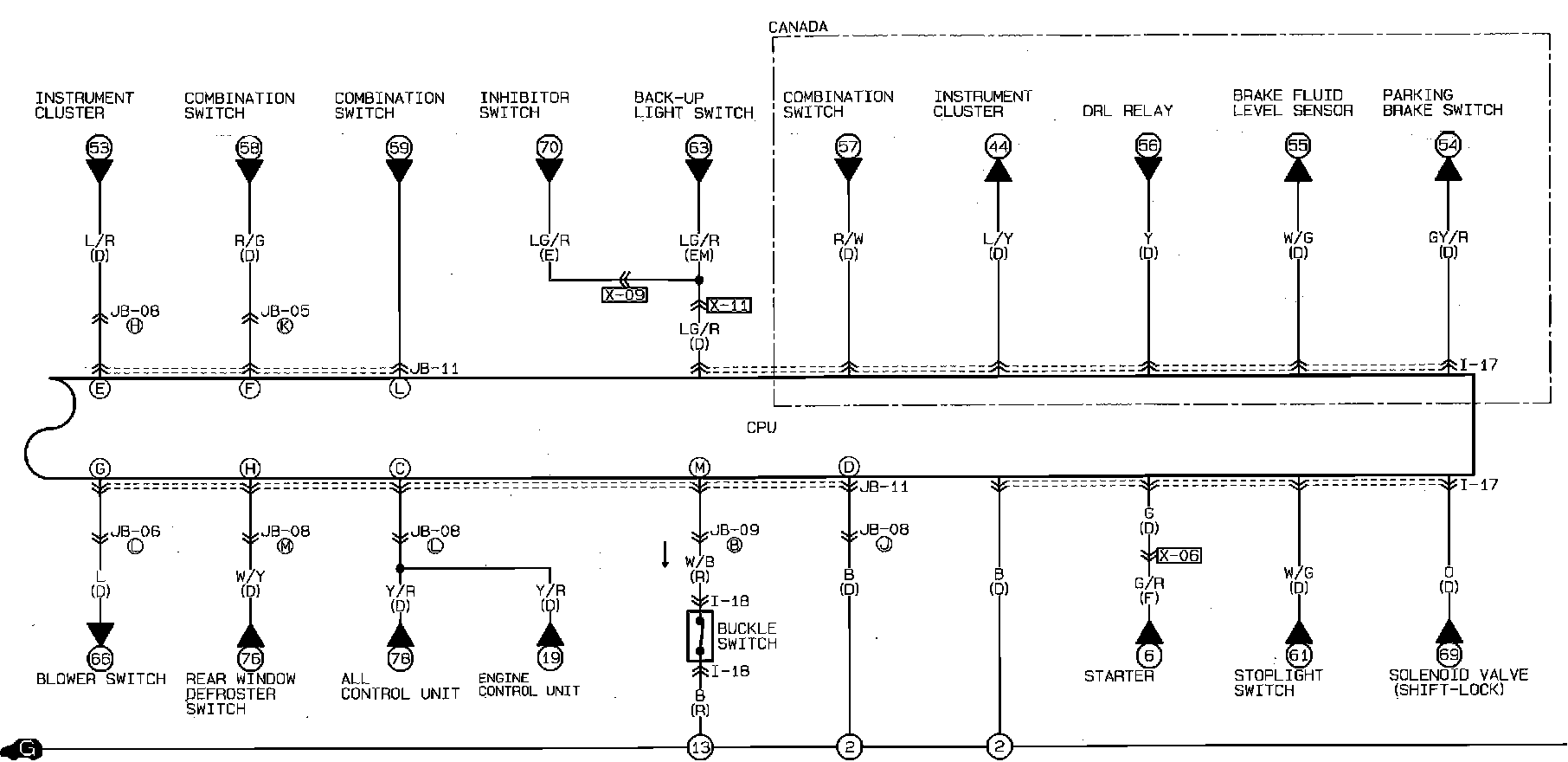

Central Processing Unit (CPU):
