LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
1993
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

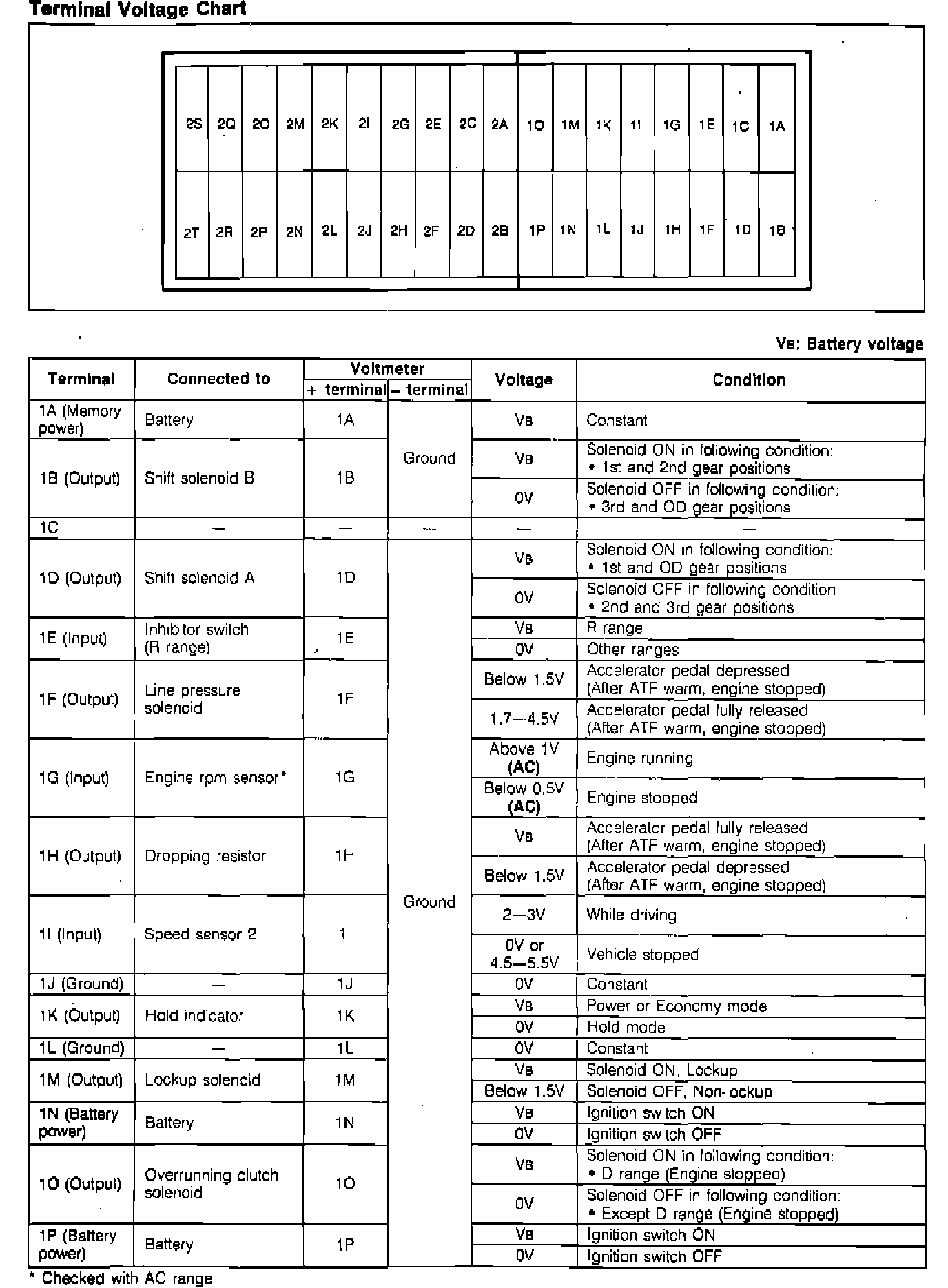

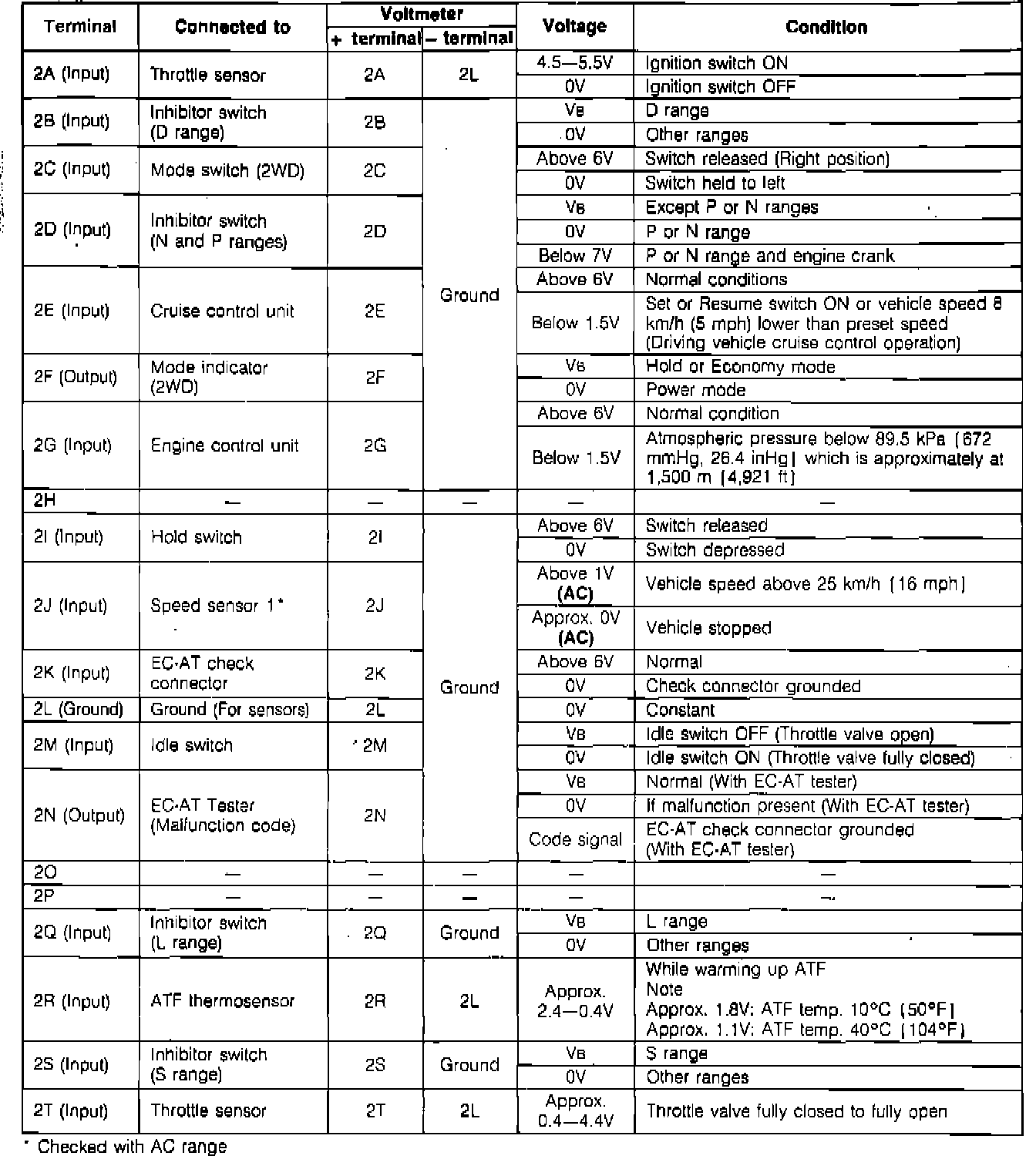

ECU Pin Voltage Chart:
ECU Pin Voltage Chart:
