Home >> Mazda >> 1993 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Part 1 of 4

Part 1 of 4

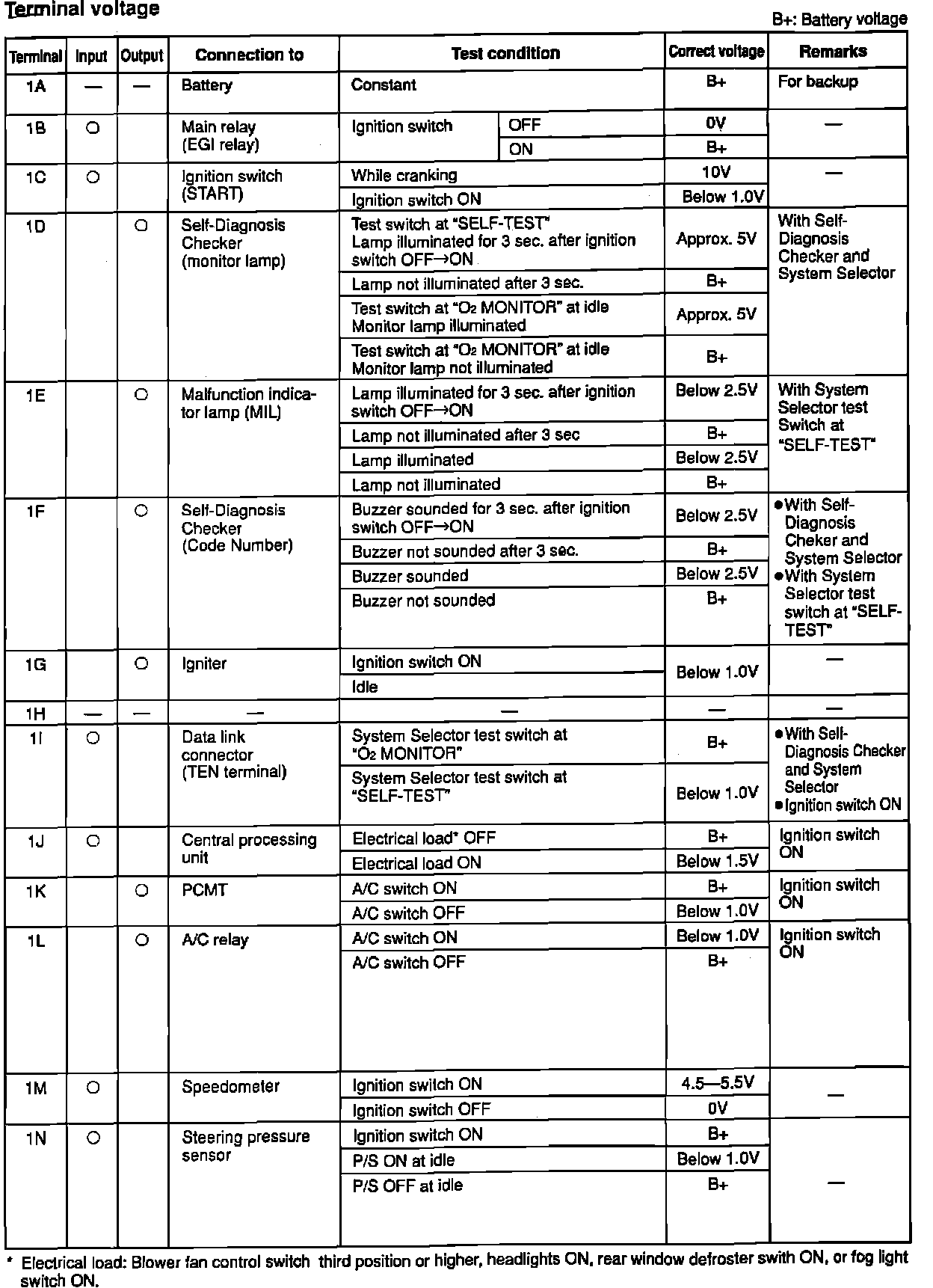

ECU Pin Voltage Chart:
