Home >> Mazda >> 1993 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

Automatic Transmission/Transaxle

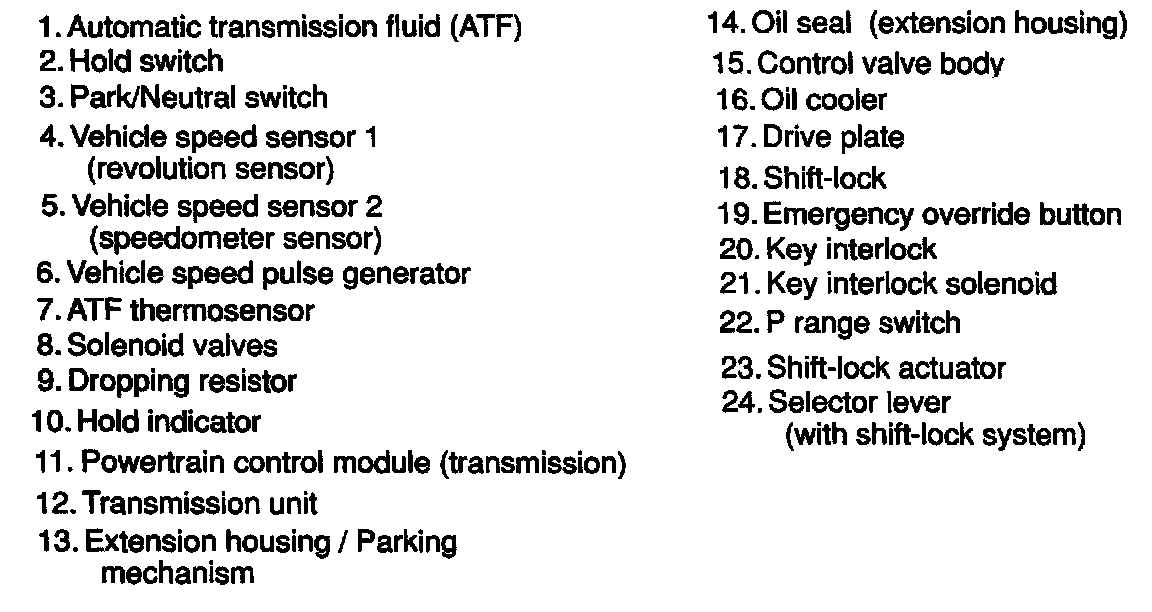

Part 1:

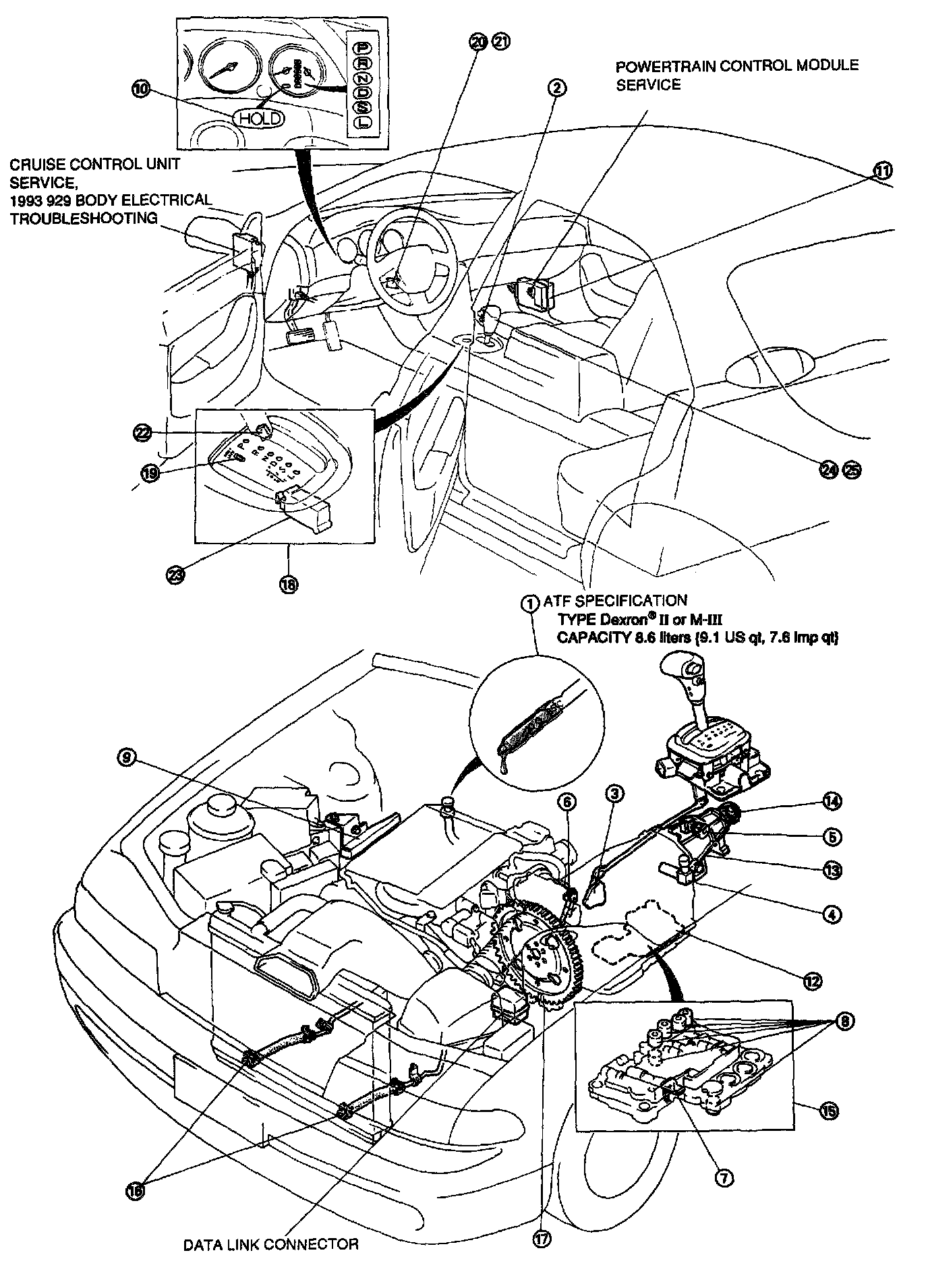

Part 2:
