Home >> Mazda >> 1993 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module

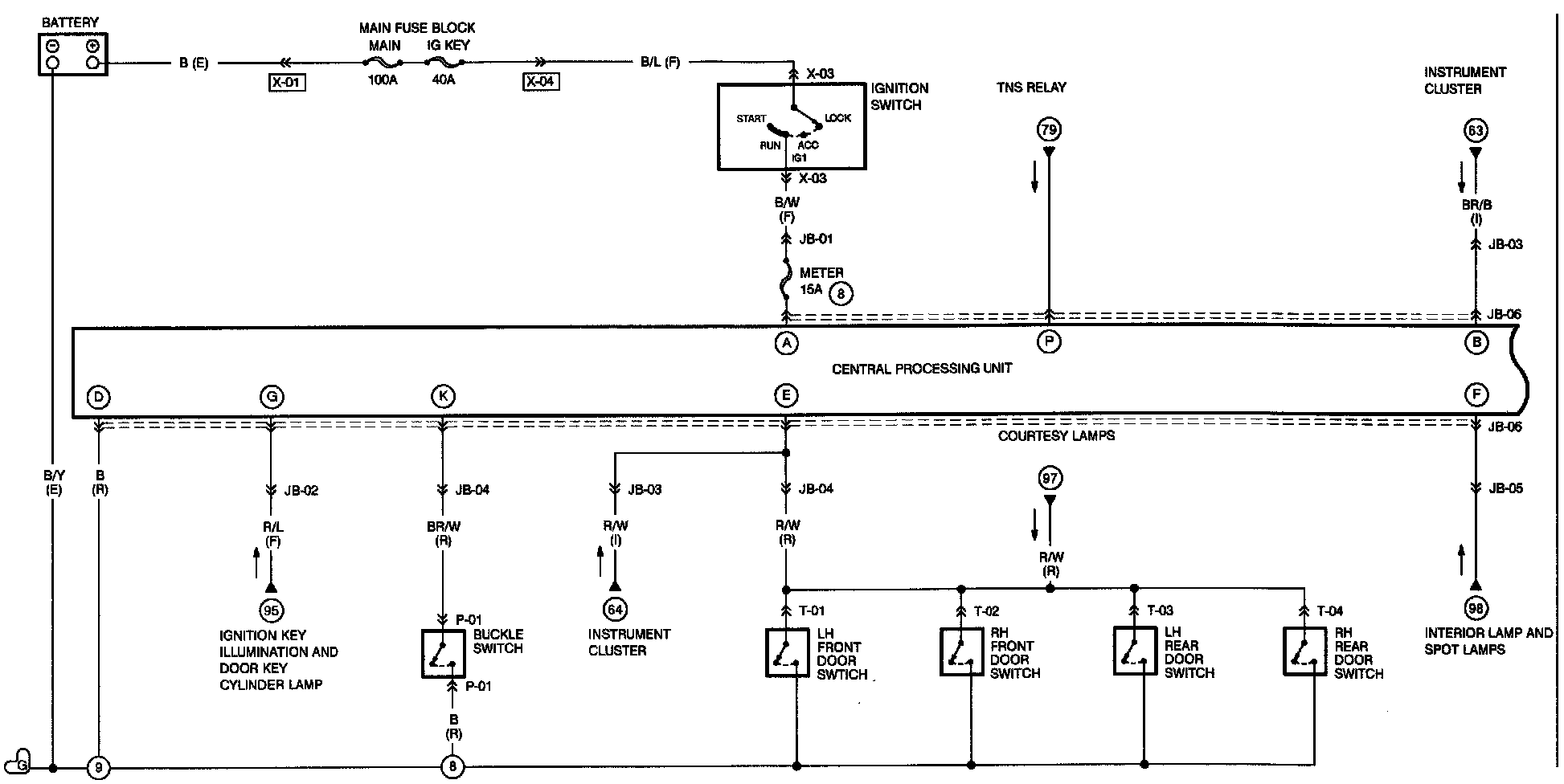

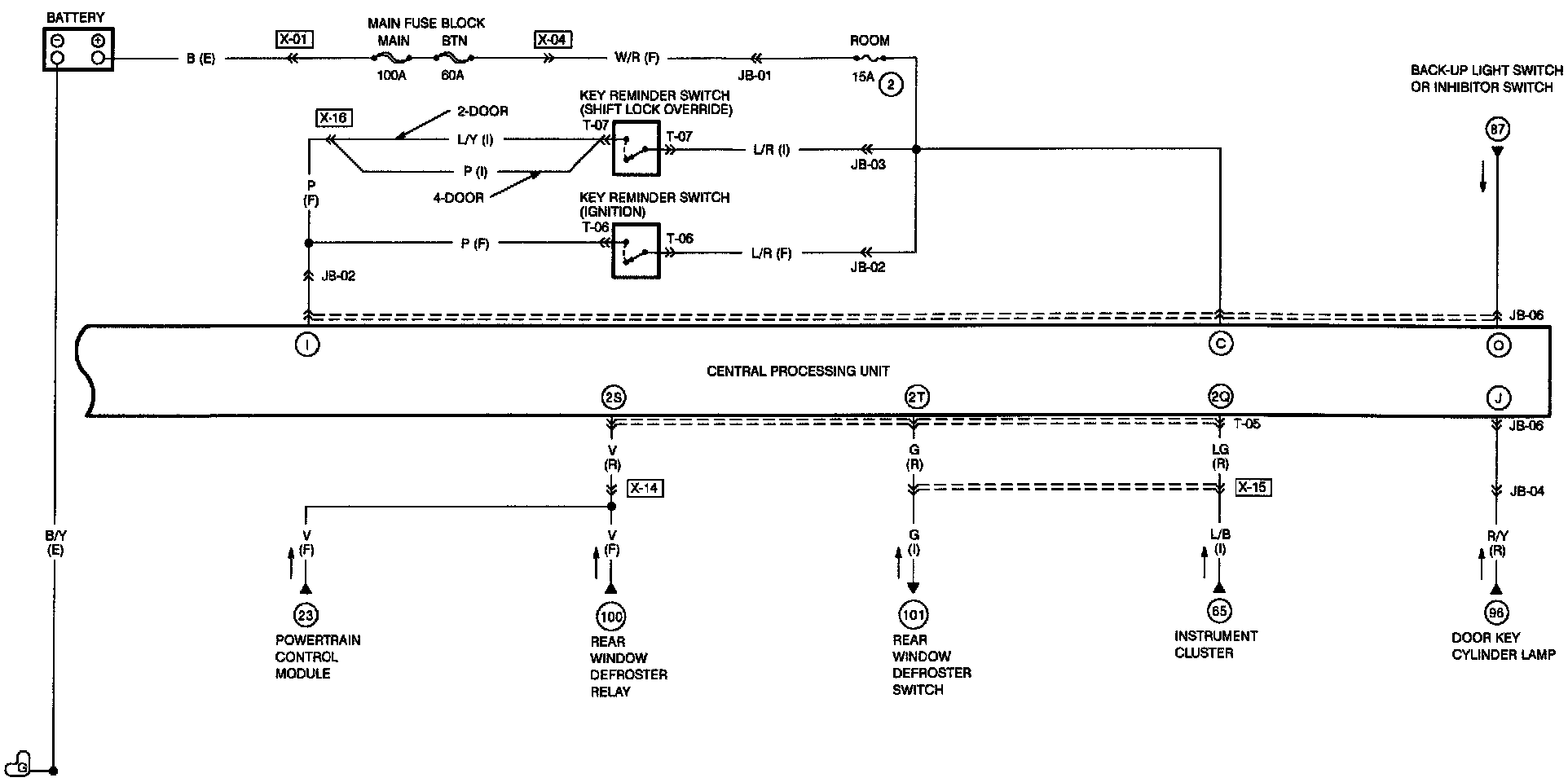

Central Control Module

Central Processing Unit:



Central Processing Unit:
