Central Control Module

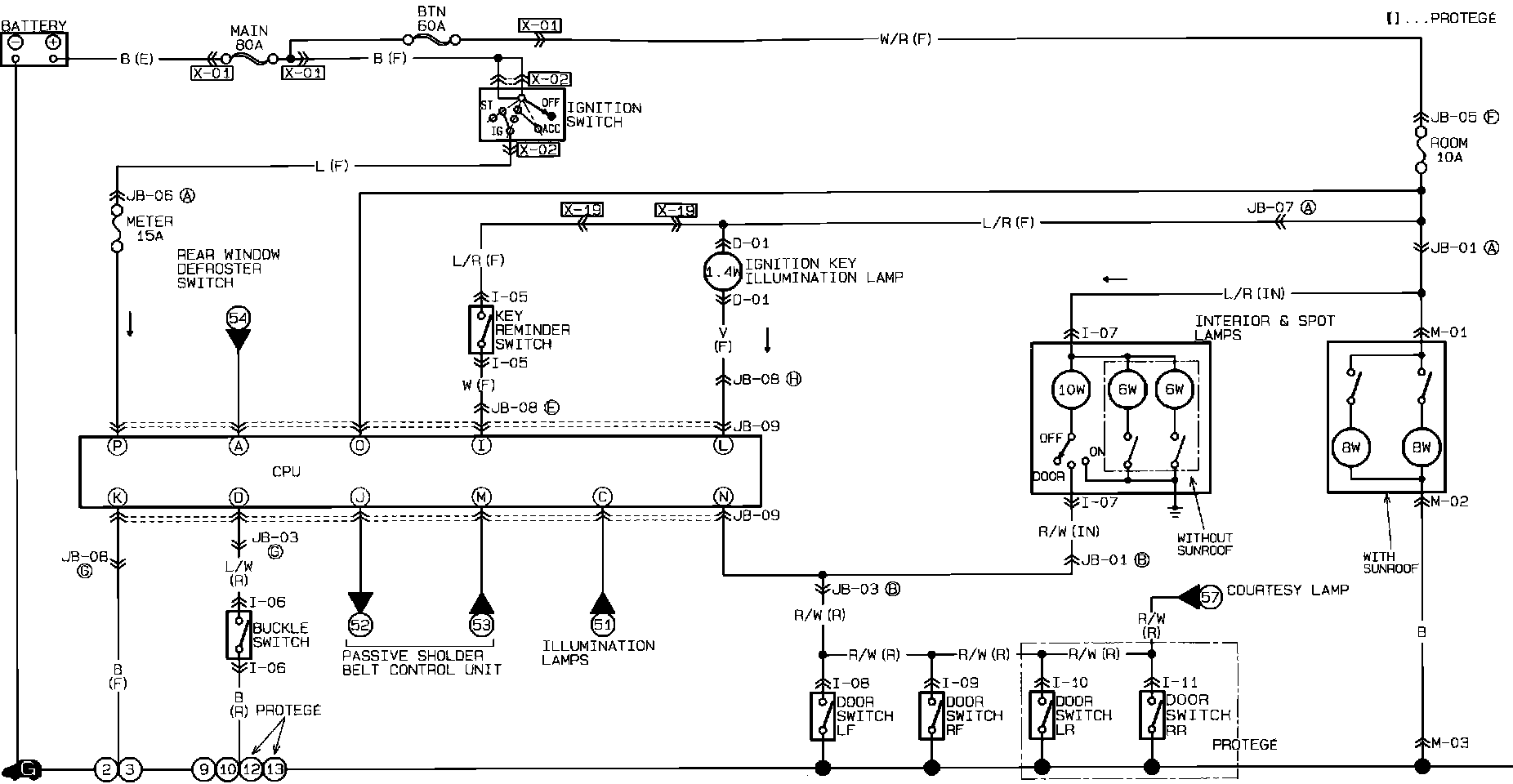

Interior, Spot, Central Processing Unit (CPU), And Ignition Key Illumination Lamps:
