Code 10: Intake Air THERMOSENSOR
Code 10: Intake Air THERMOSENSOR

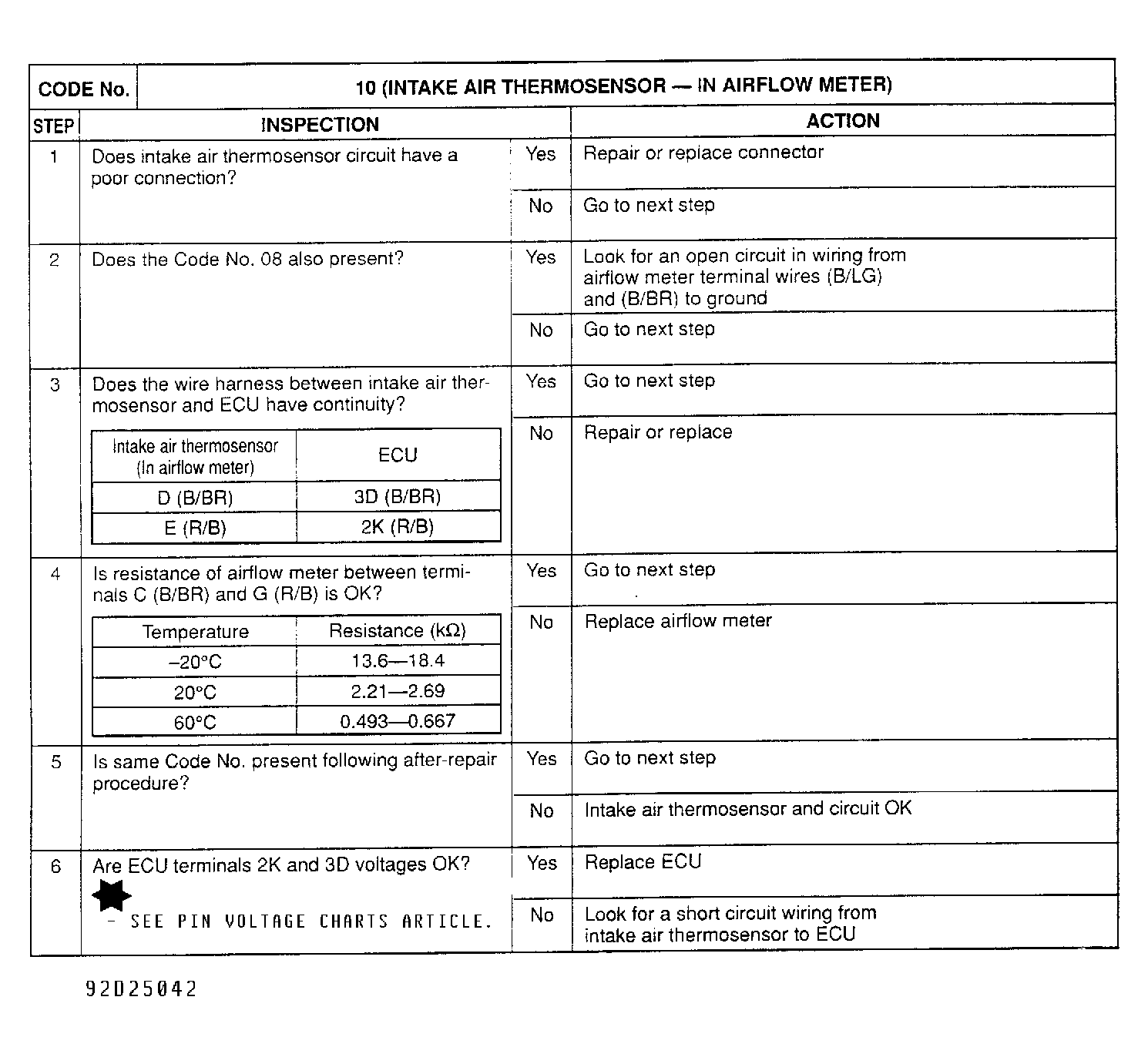

Fig 1: Trouble Code No. 10 Intake Air Thermosensor
Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Intake Air Thermosensor
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
