Code 4: Ne1 Signal-Distributor
Code 4: Ne1 Signal-Distributor

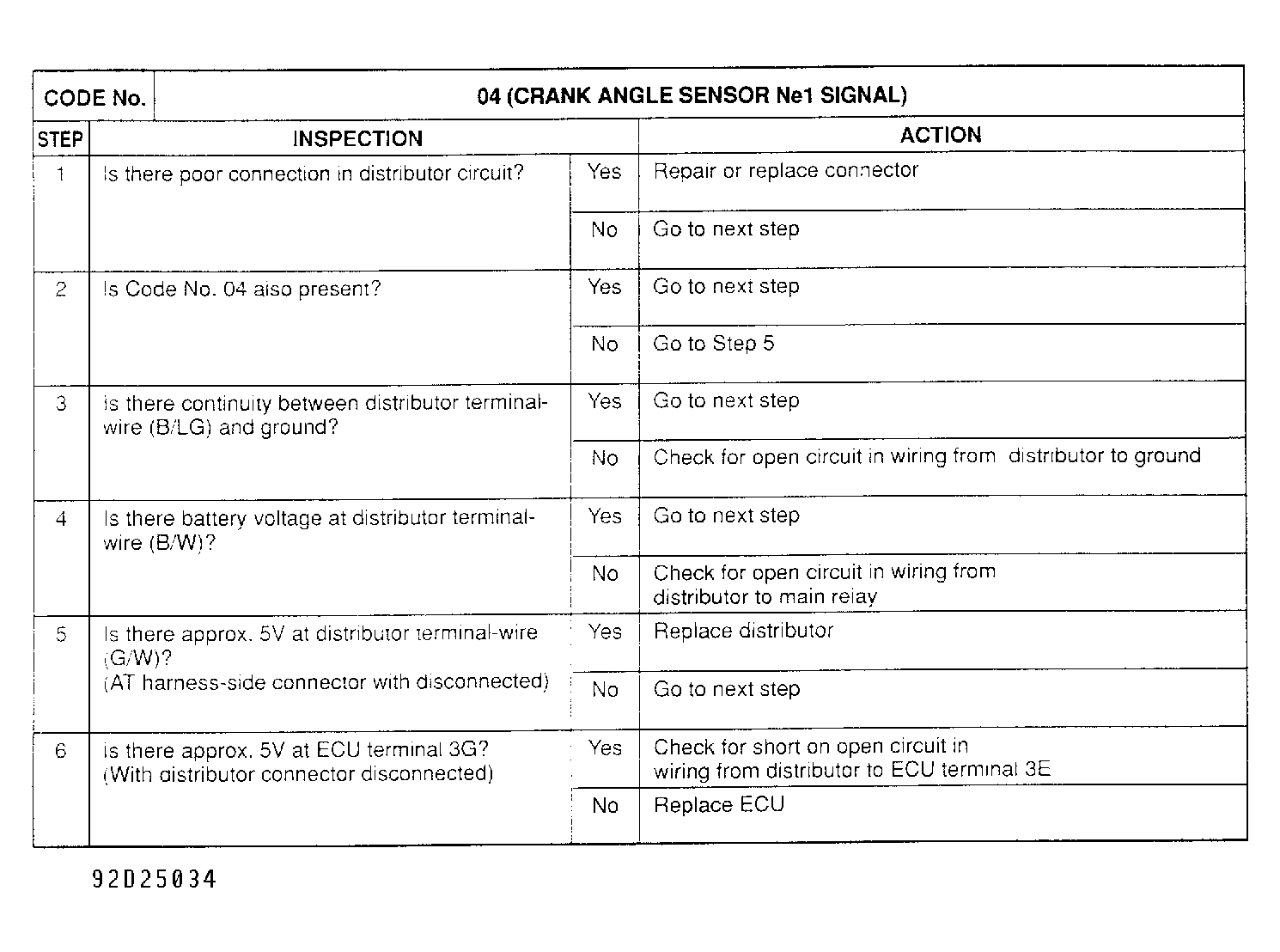

Fig 1: Trouble Code No. 4 Ne1 Signal-distributor
Courtesy of MAZDA MOTORS CORP.

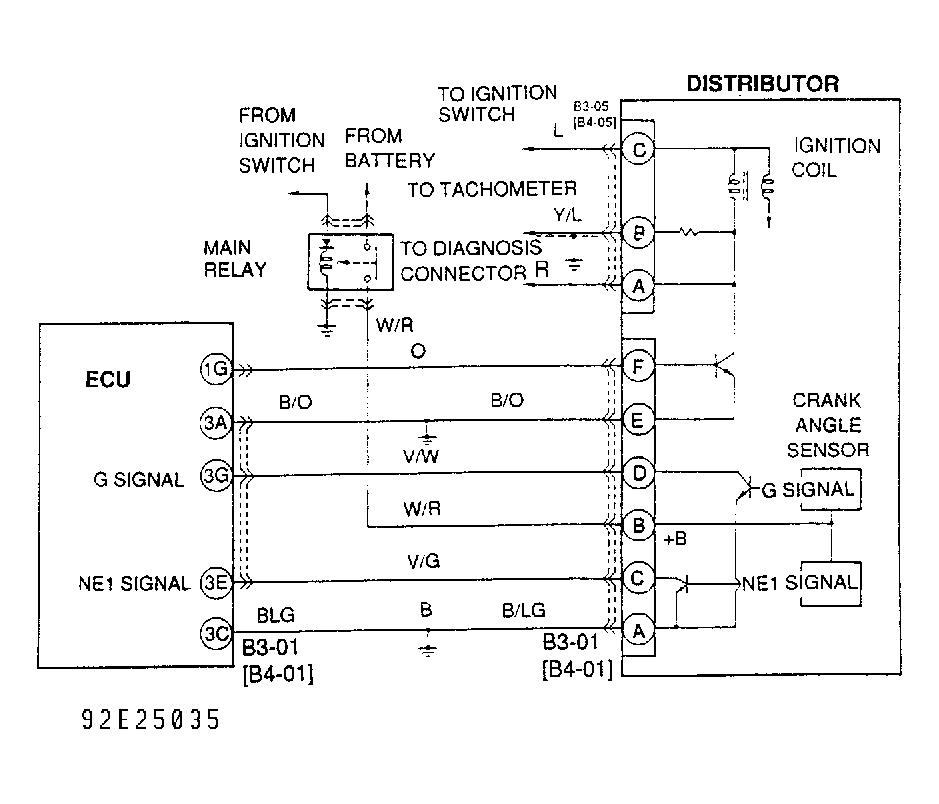

Fig 2: Circuit Diagram, Ne1 Signal-distributor
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
