Home >> Mazda >> 1992 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations >> Connector Locations

Connector Locations

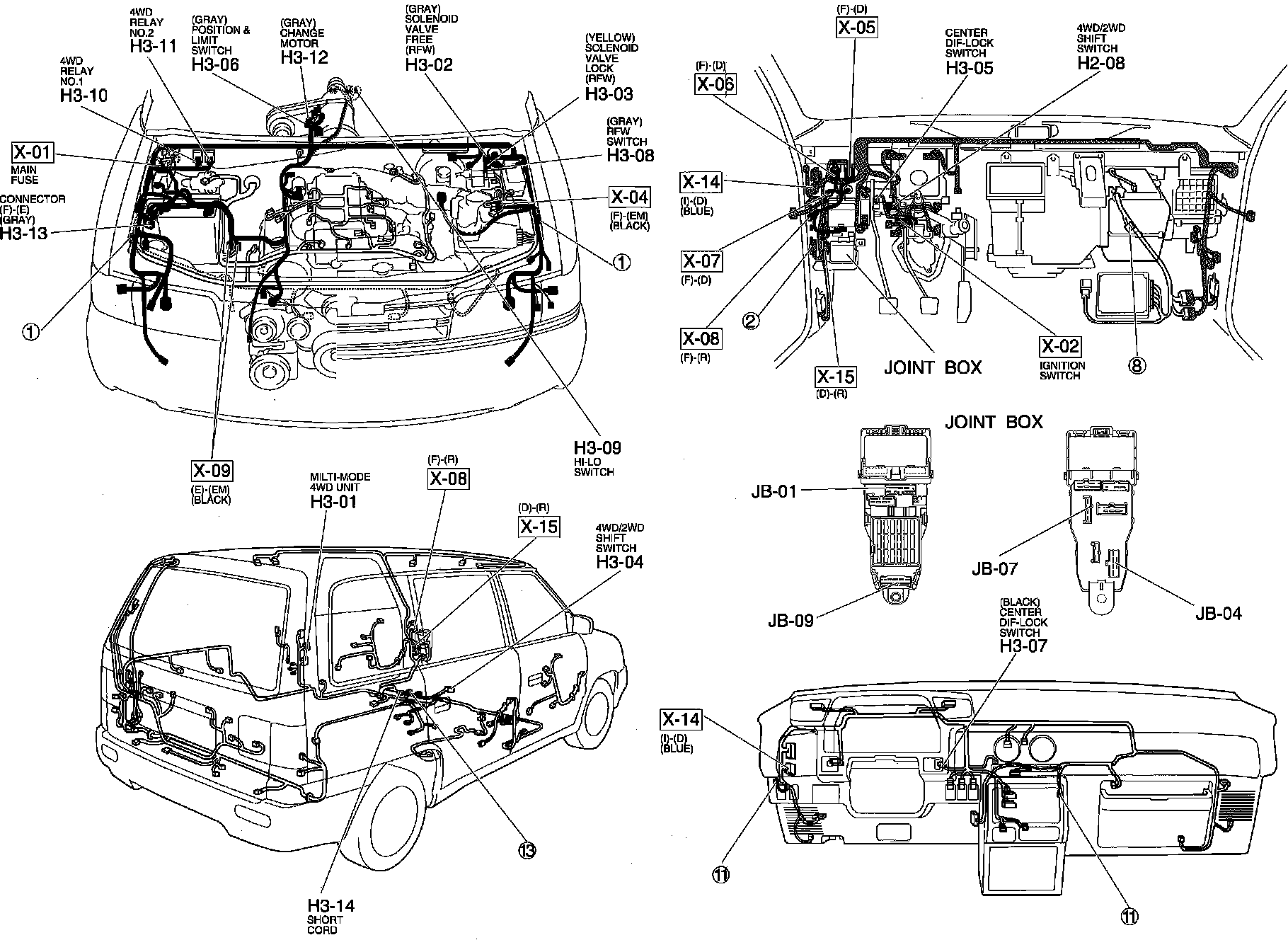

Multi-Mode 4WD System. Harness And Connector Locations:
