Home >> Mazda >> 1992 >> MPV 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Door Lock Control Module >> Locations

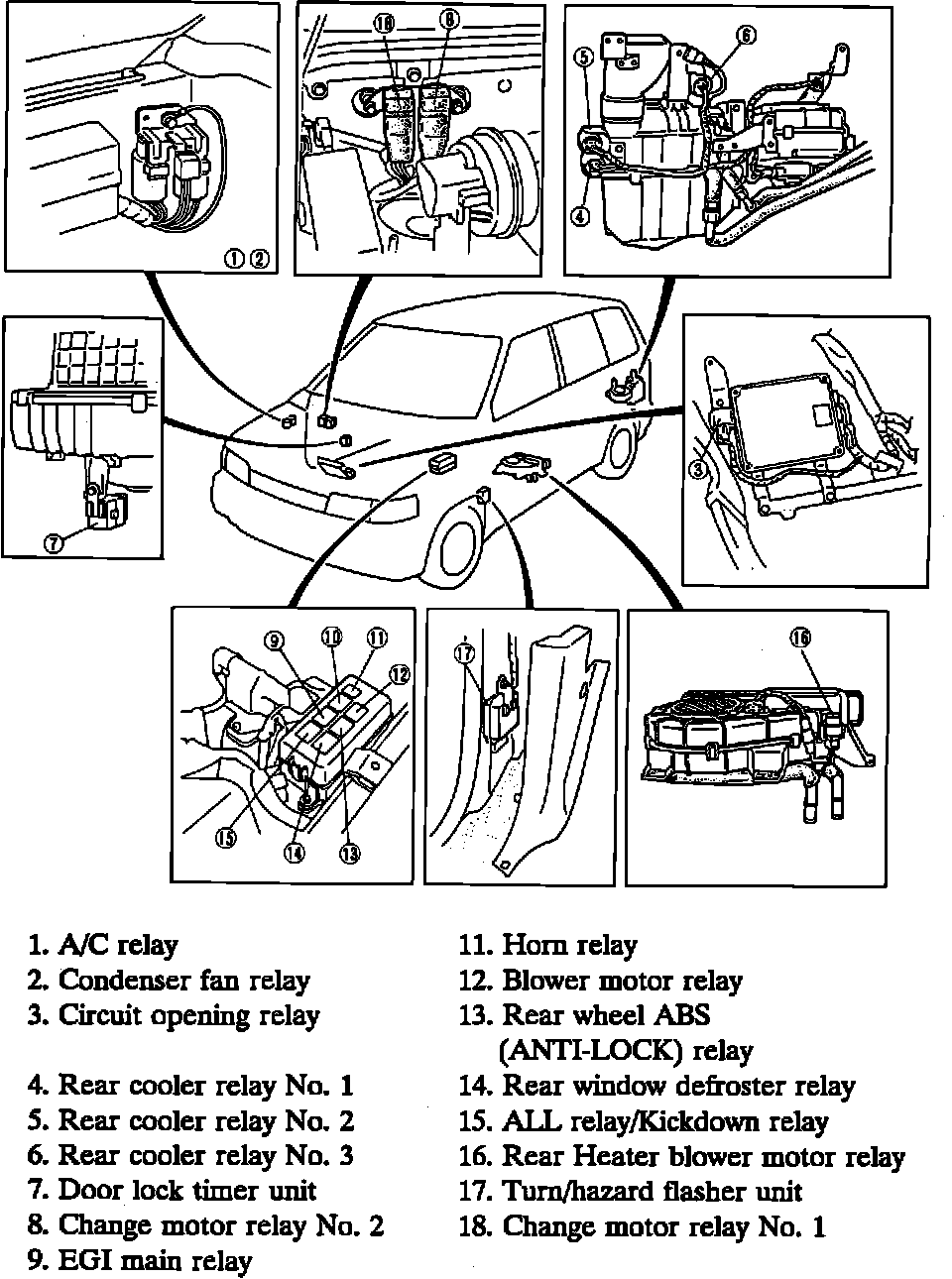

Power Door Lock Control Module: Locations

Relay Locations:




Under RH Side Of I/P
