Control System

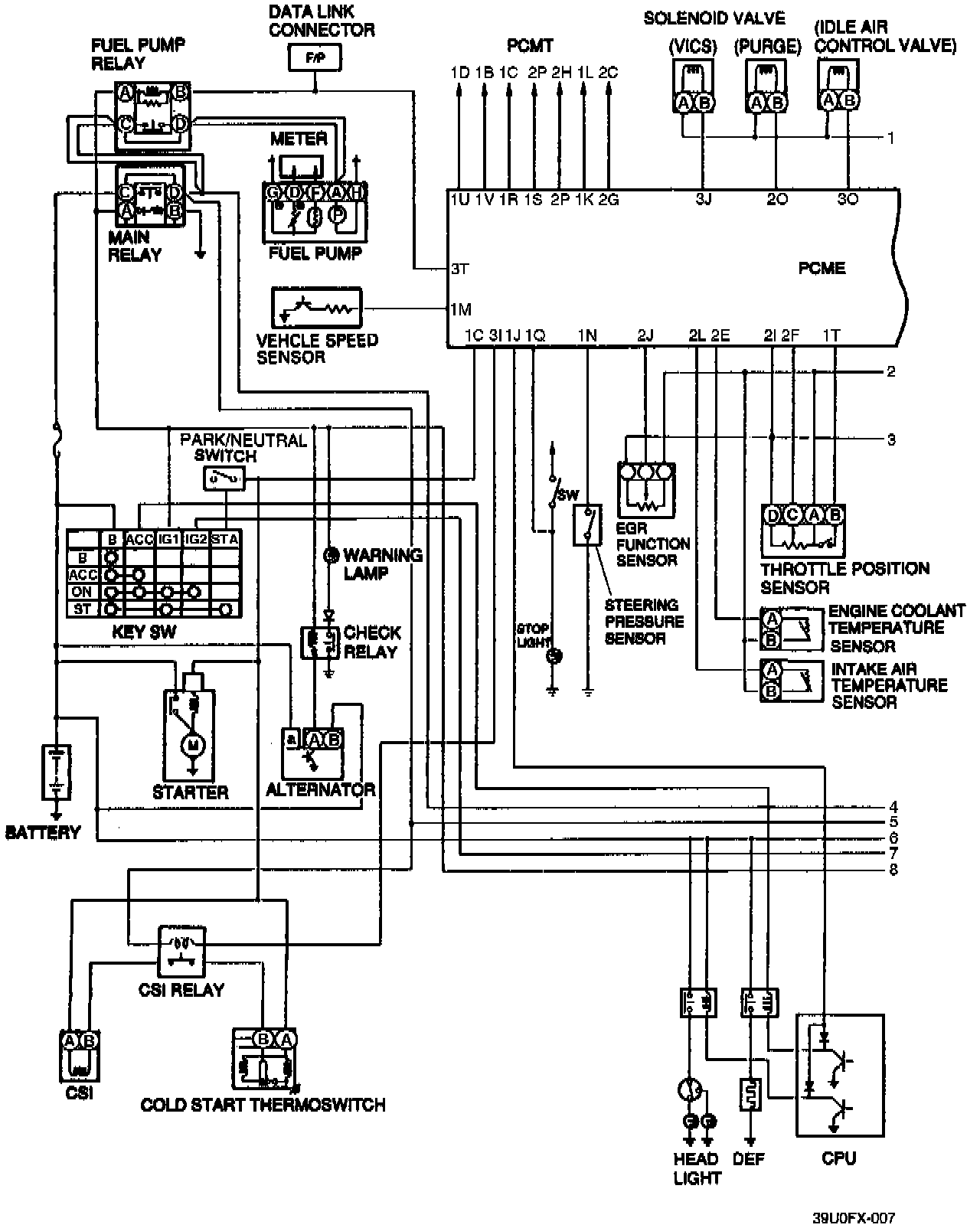

Part 1 Of 2

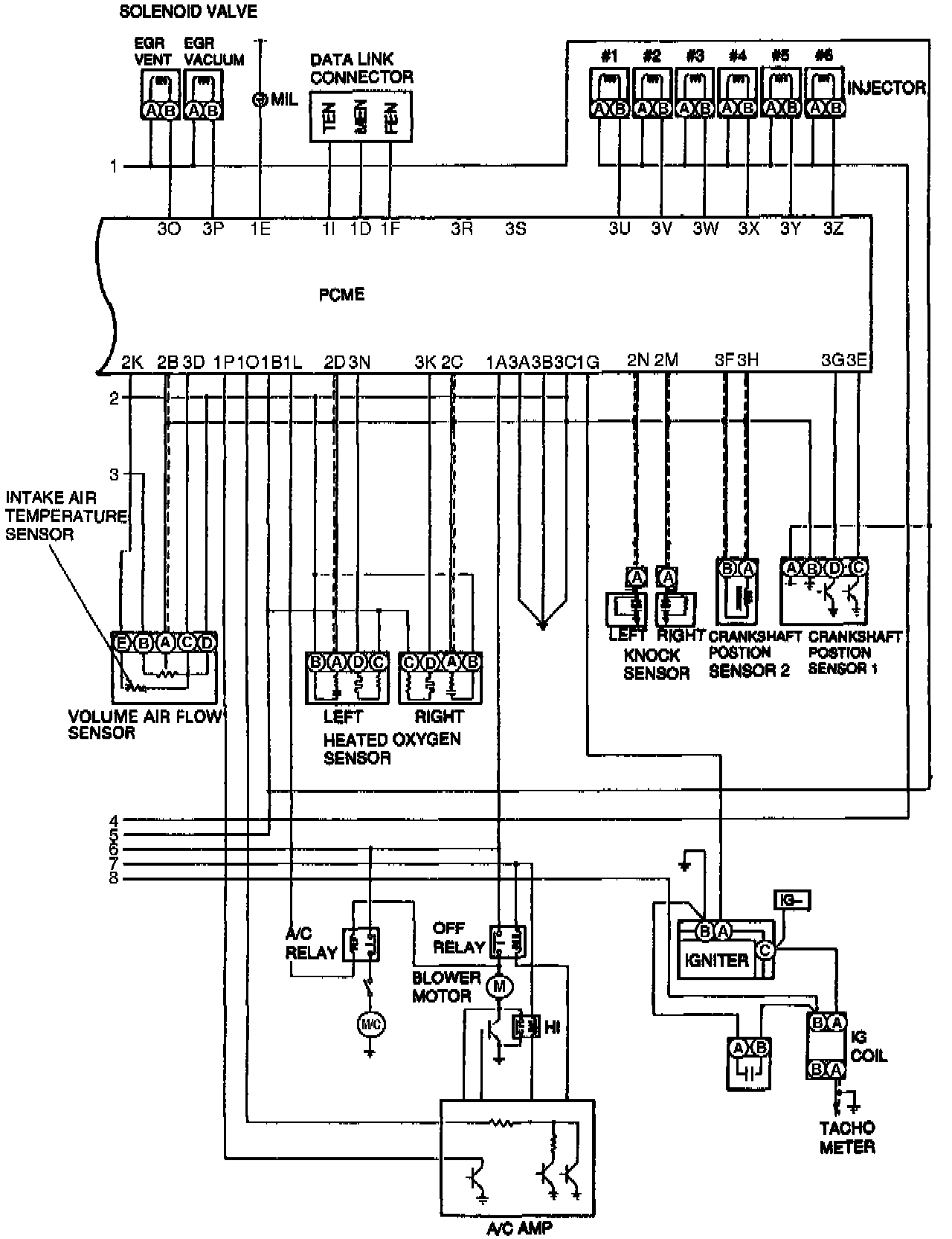

Part 2 Of 2

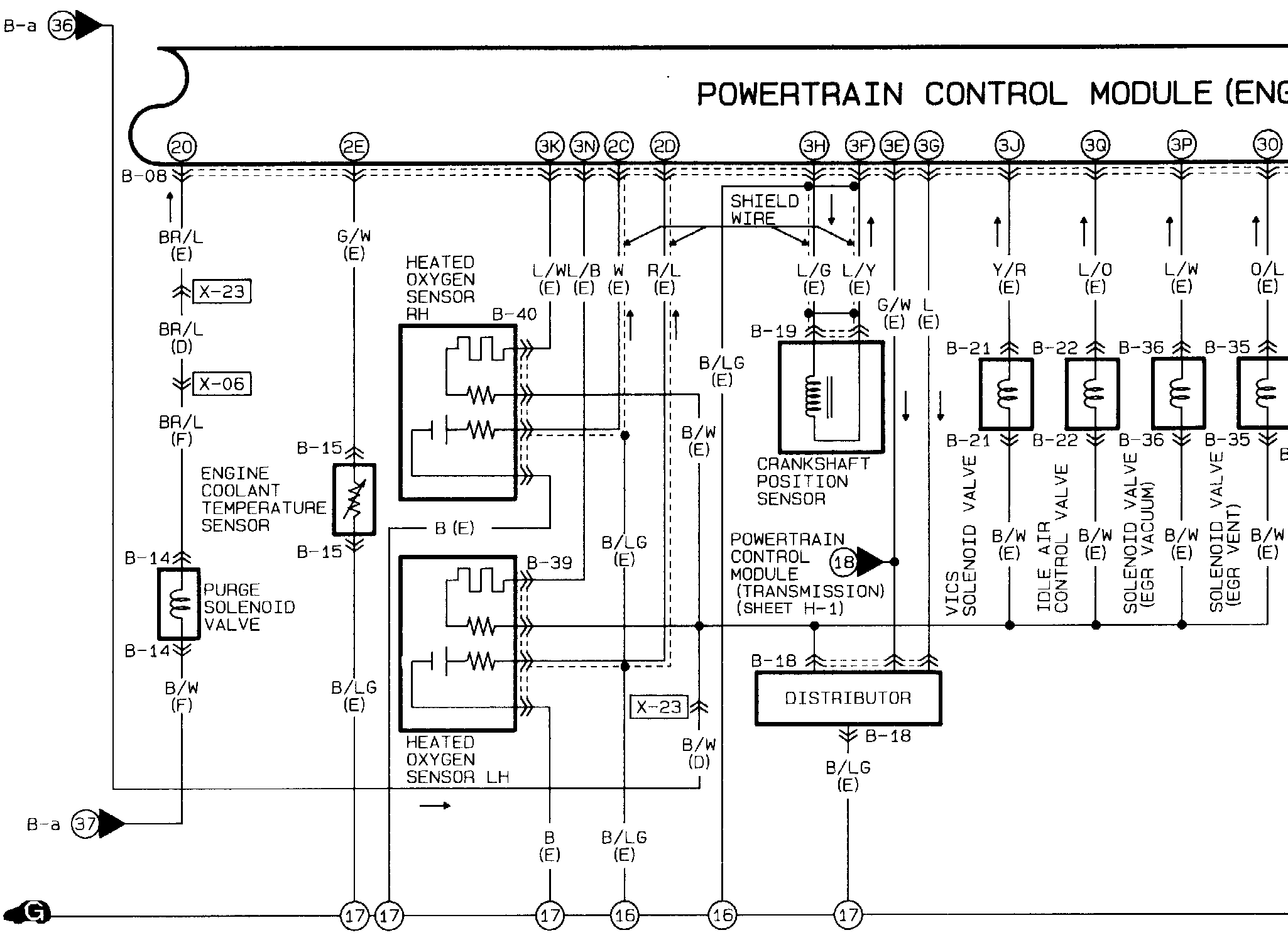

B-A

�T�EEngine Control System B-A:

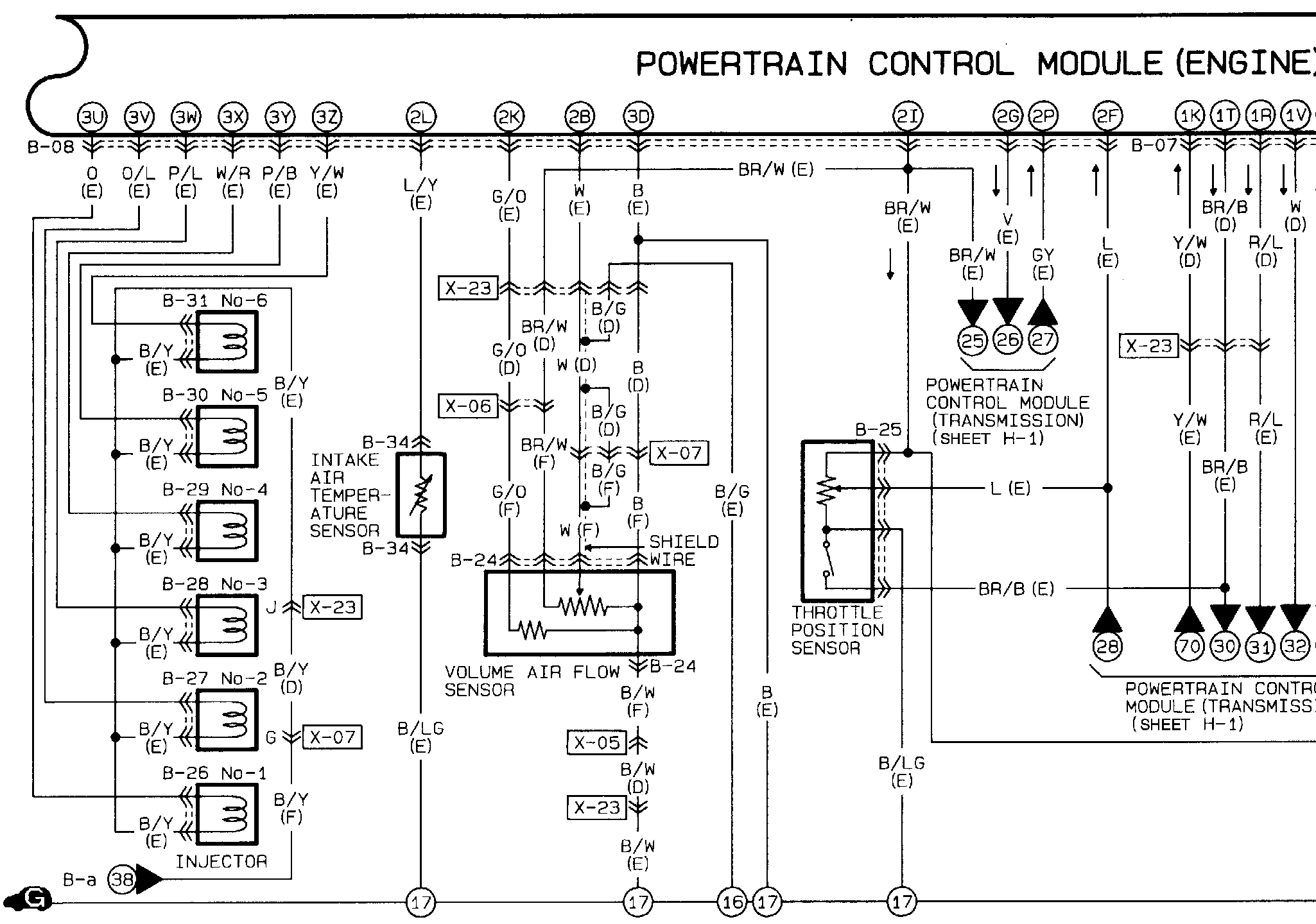

B-B

���EEngine Control System B-B:

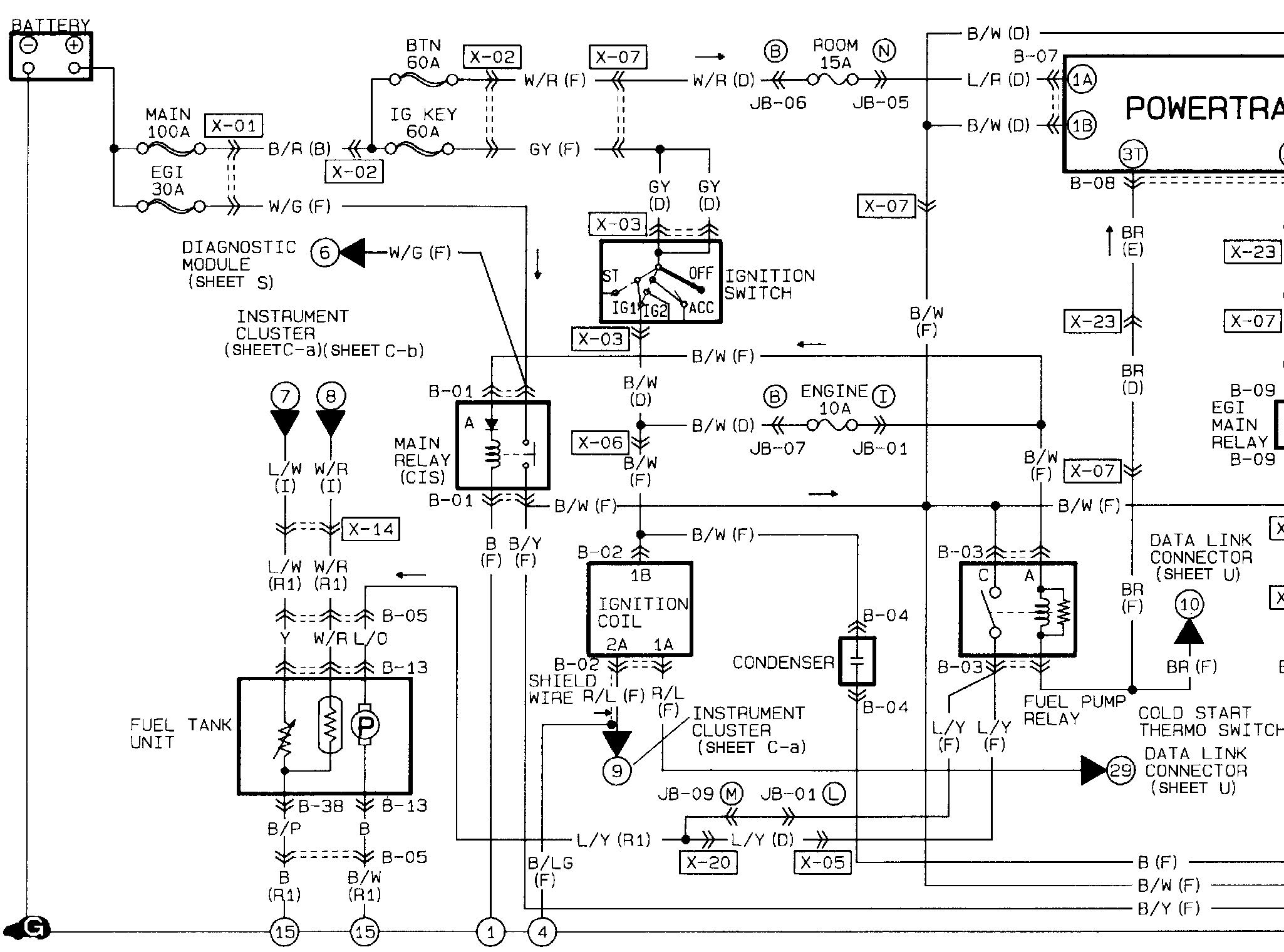

B-C

�S�EEngine Control System B-C:
