Connector Views

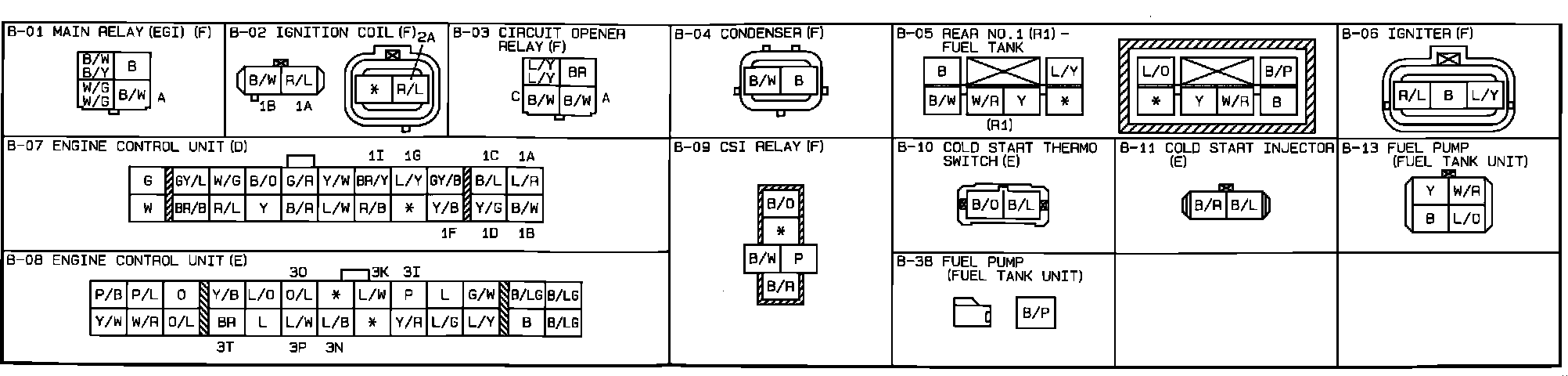

Engine Control System. Connector Identification:

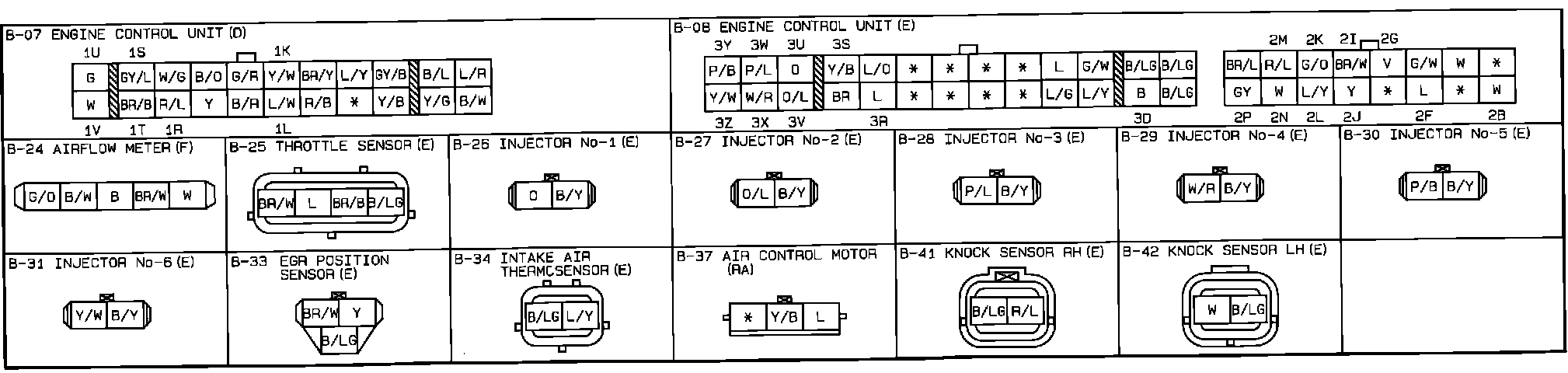

Engine Control System. Connector Identification:

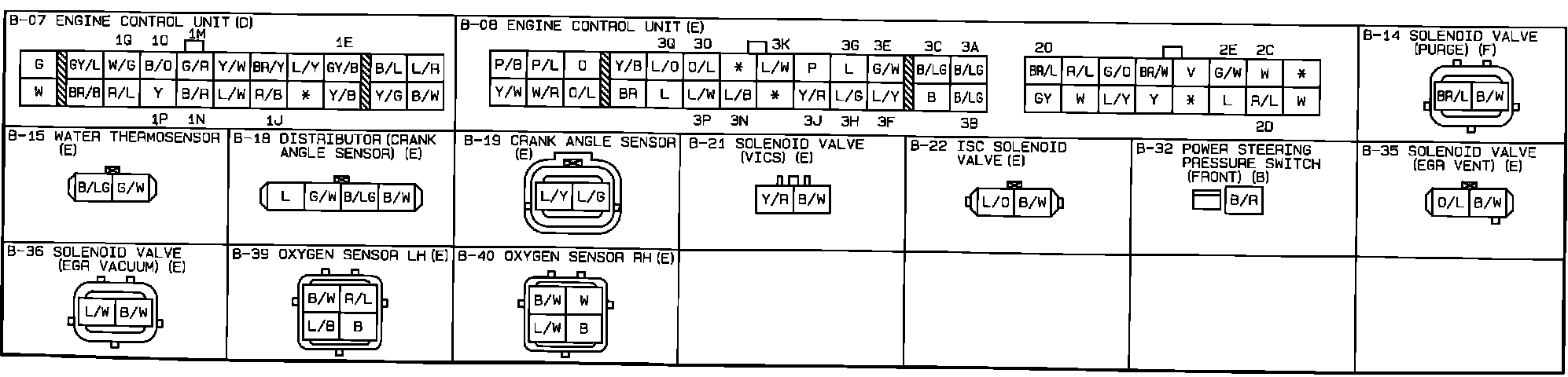

Engine Control System. Connector Identification:



Engine Control System. Harness And Connector Locations:



Engine Control System. Harness And Connector Locations:



Engine Control System. Harness And Connector Locations:
