Manual Transmission

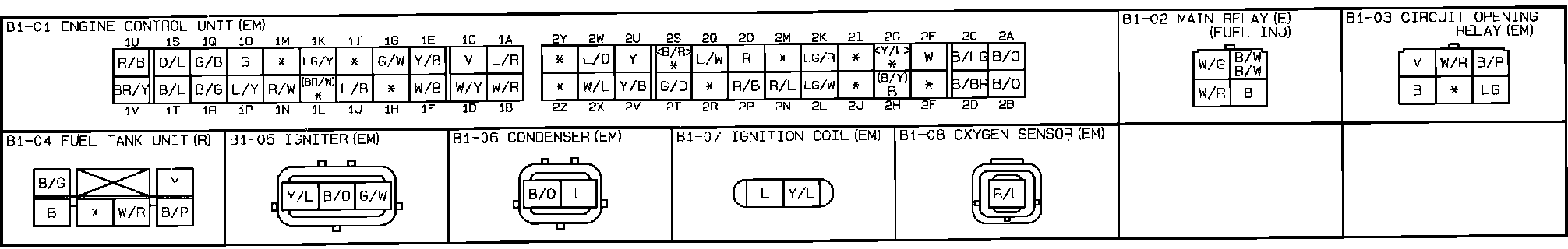

Engine Control System. M/T. Connector Identification 1 Of 3:

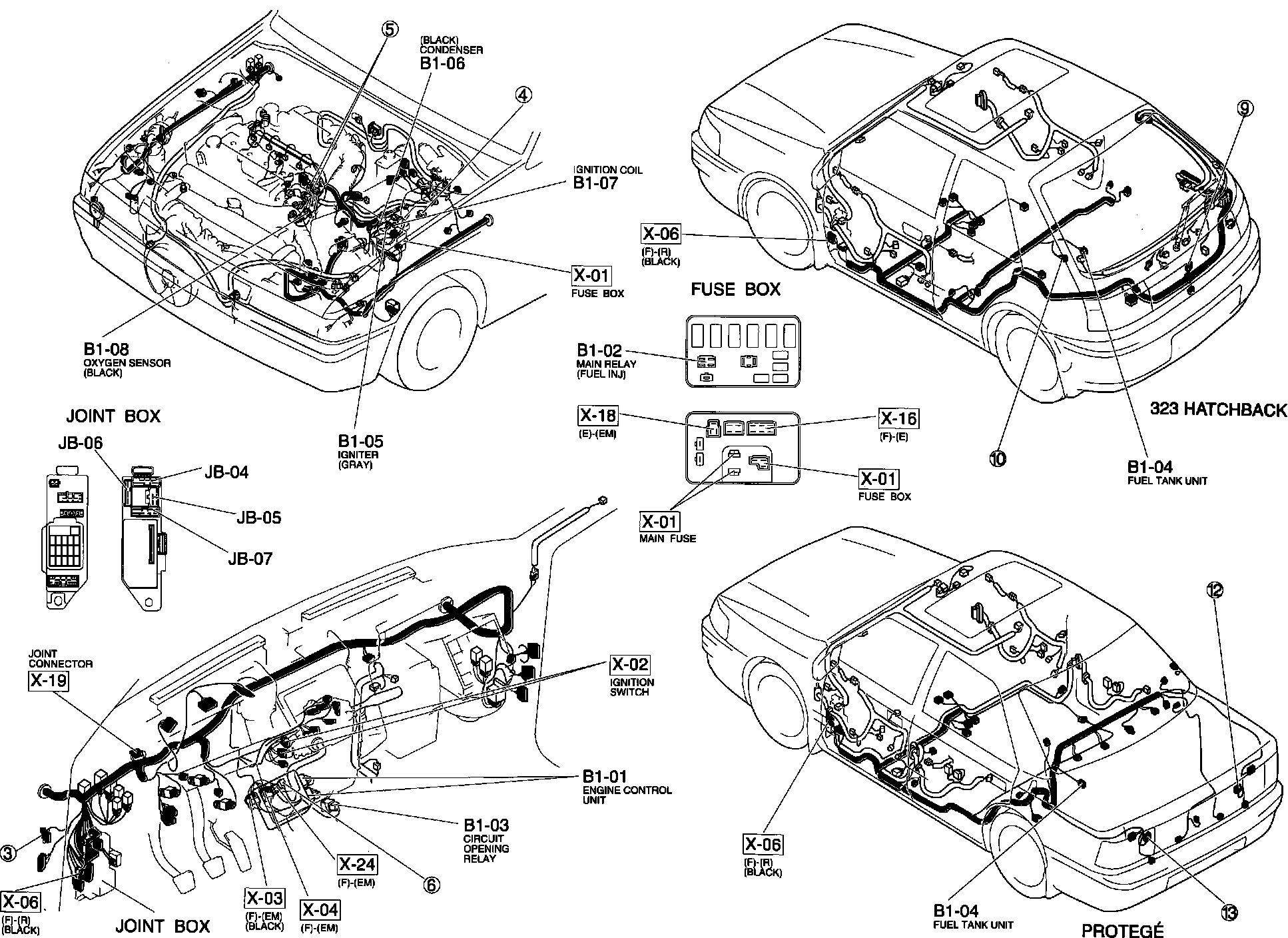

Engine Control System. M/T. Harness And Connector Locations 1 Of 3:

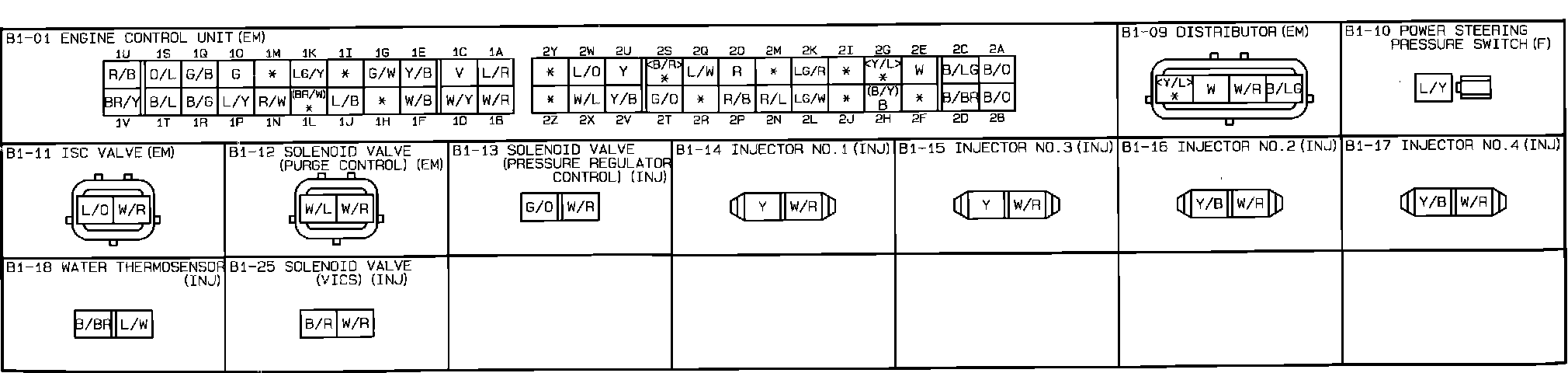

Engine Control System. M/T. Connector Identification 2 Of 3:

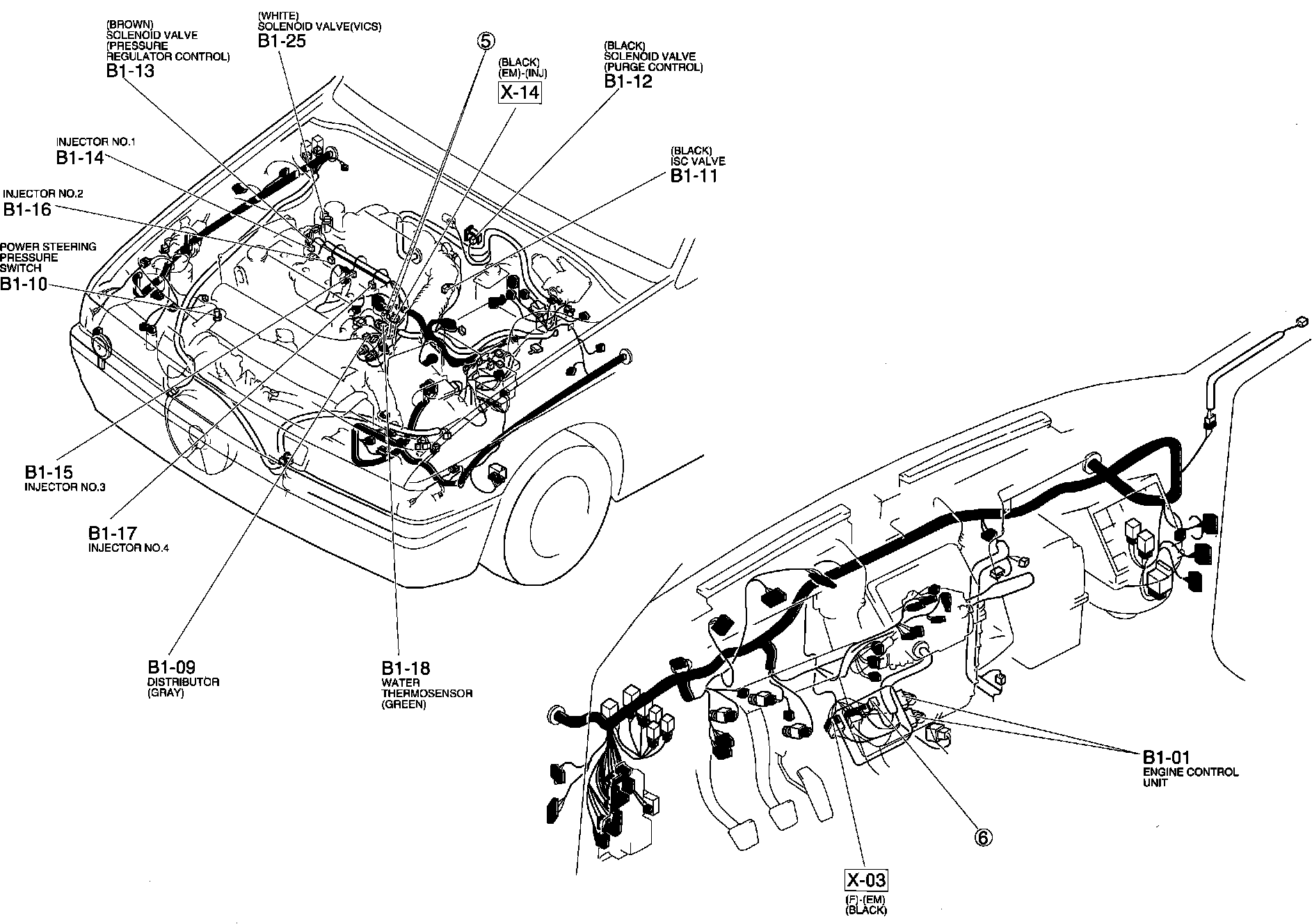

Engine Control System. M/T. Harness And Connector Locations 2 Of 3:



Engine Control System. M/T. Connector Identification 3 Of 3:



Engine Control System. M/T. Harness And Connector Locations 3 Of 3:
