Home
>>
Mazda
>>
1992
>>
323 Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Door Locks
>>
Component Tests
>>
Door Lock Control
Door Lock Control
For testing procedure, see
Fig 1
.

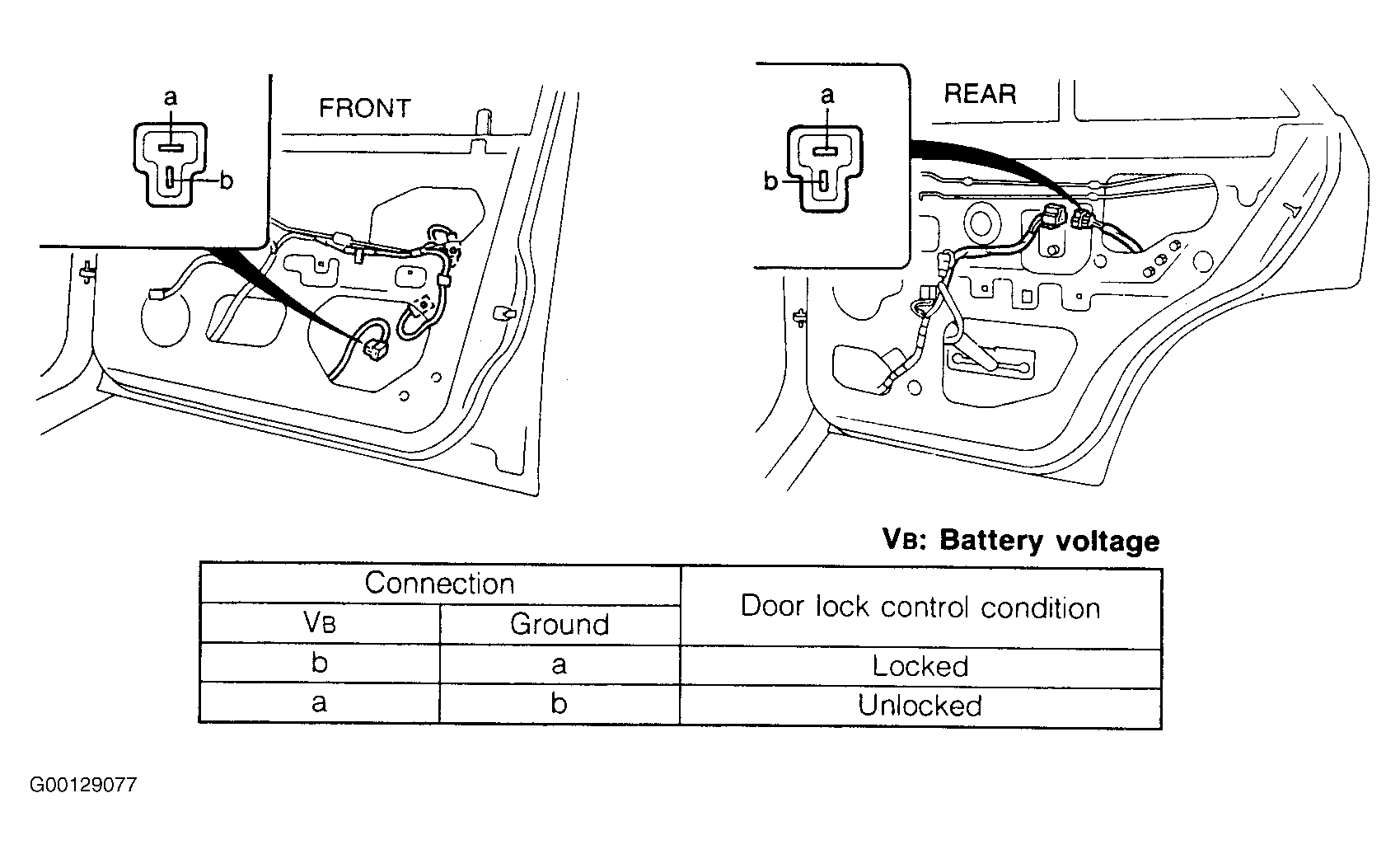

Fig 1: Door Lock ControlTesting Procedure
Courtesy of MAZDA MOTORS CORP.
