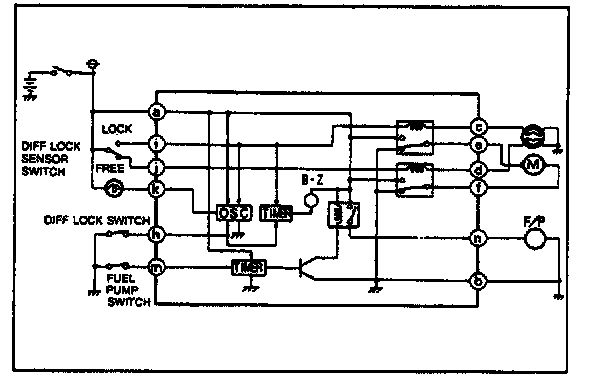

Control Module: Testing and Inspection

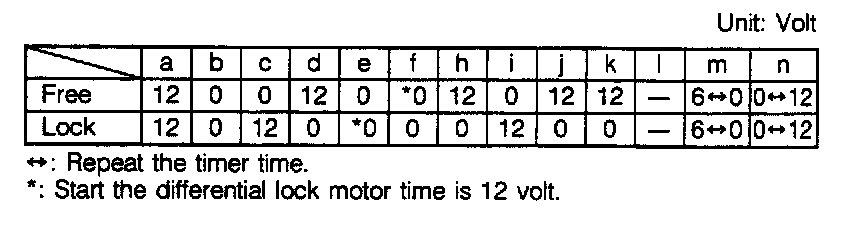

Terminal Voltage
1. Turn the ignition switch ON.

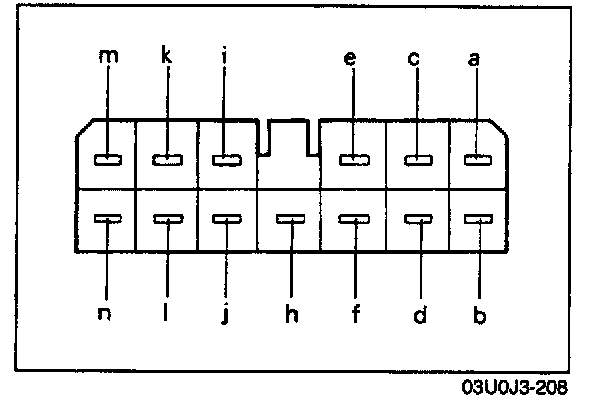

2. Measure the voltage at each terminal.
