Home >> Mazda >> 1991 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Identification

Connector Identification

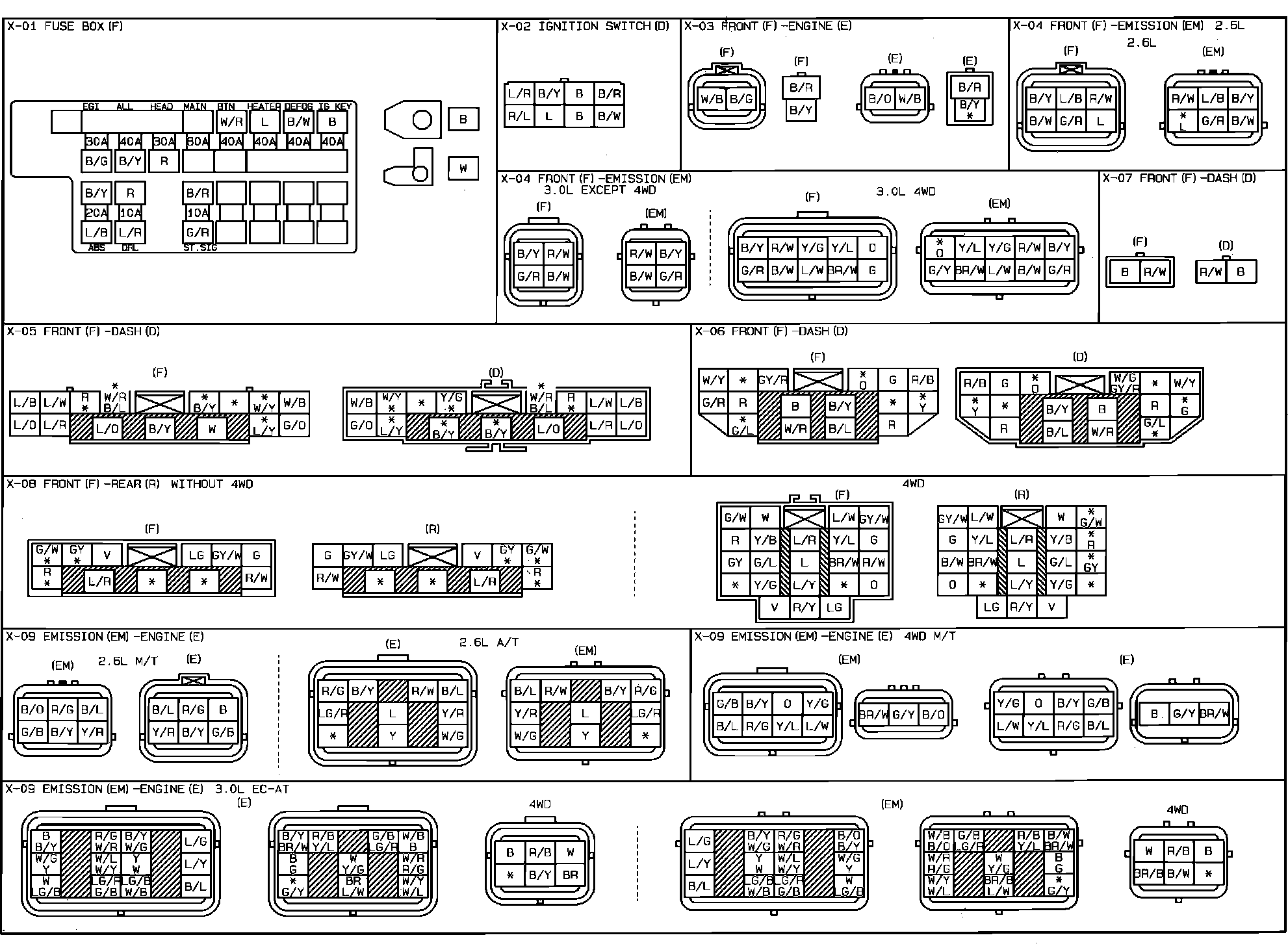

Common Connector List:

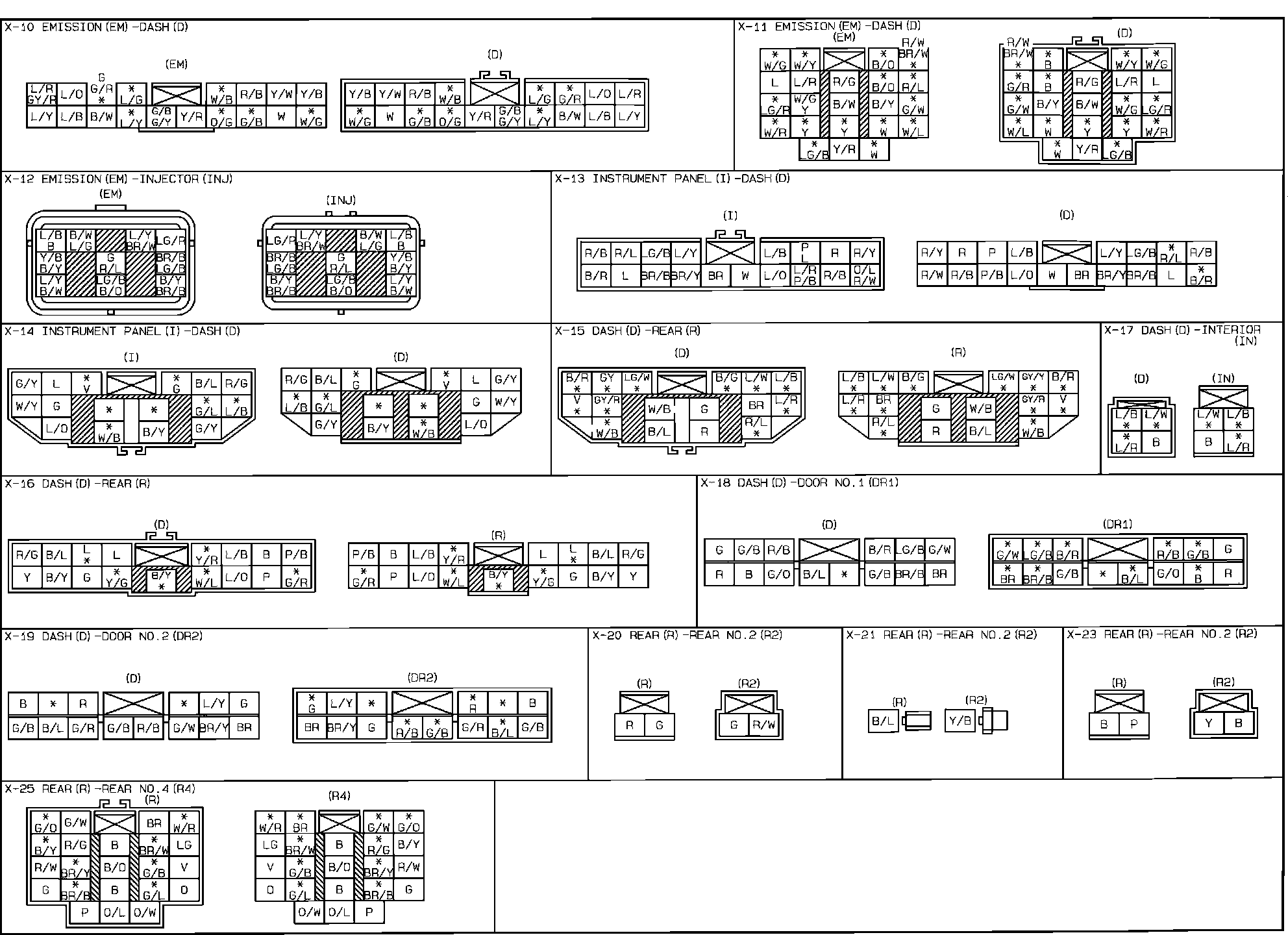

Common Connector List:
