LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
1991
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

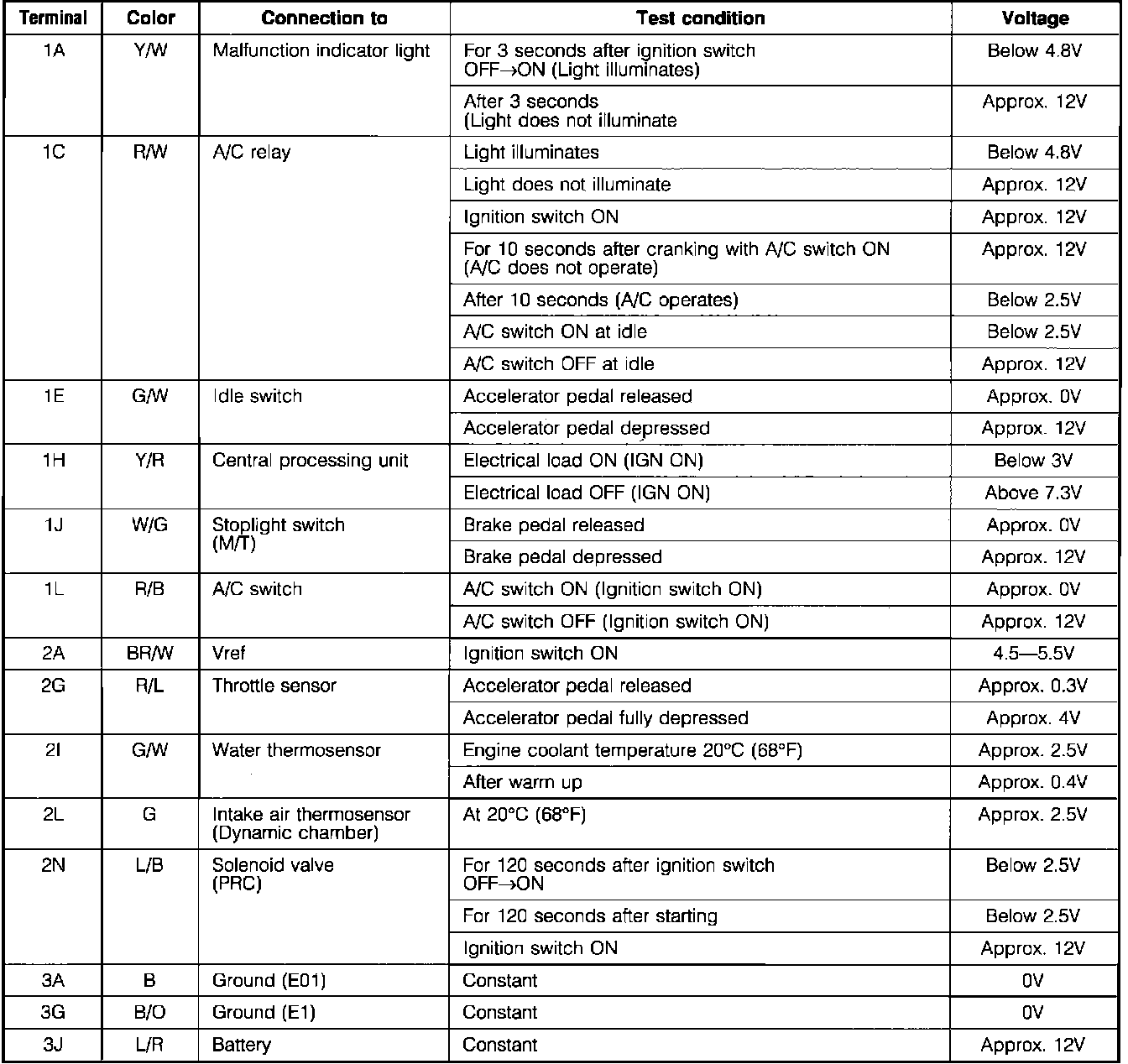

Engine Control Unit. ECU Pin Voltage Chart:

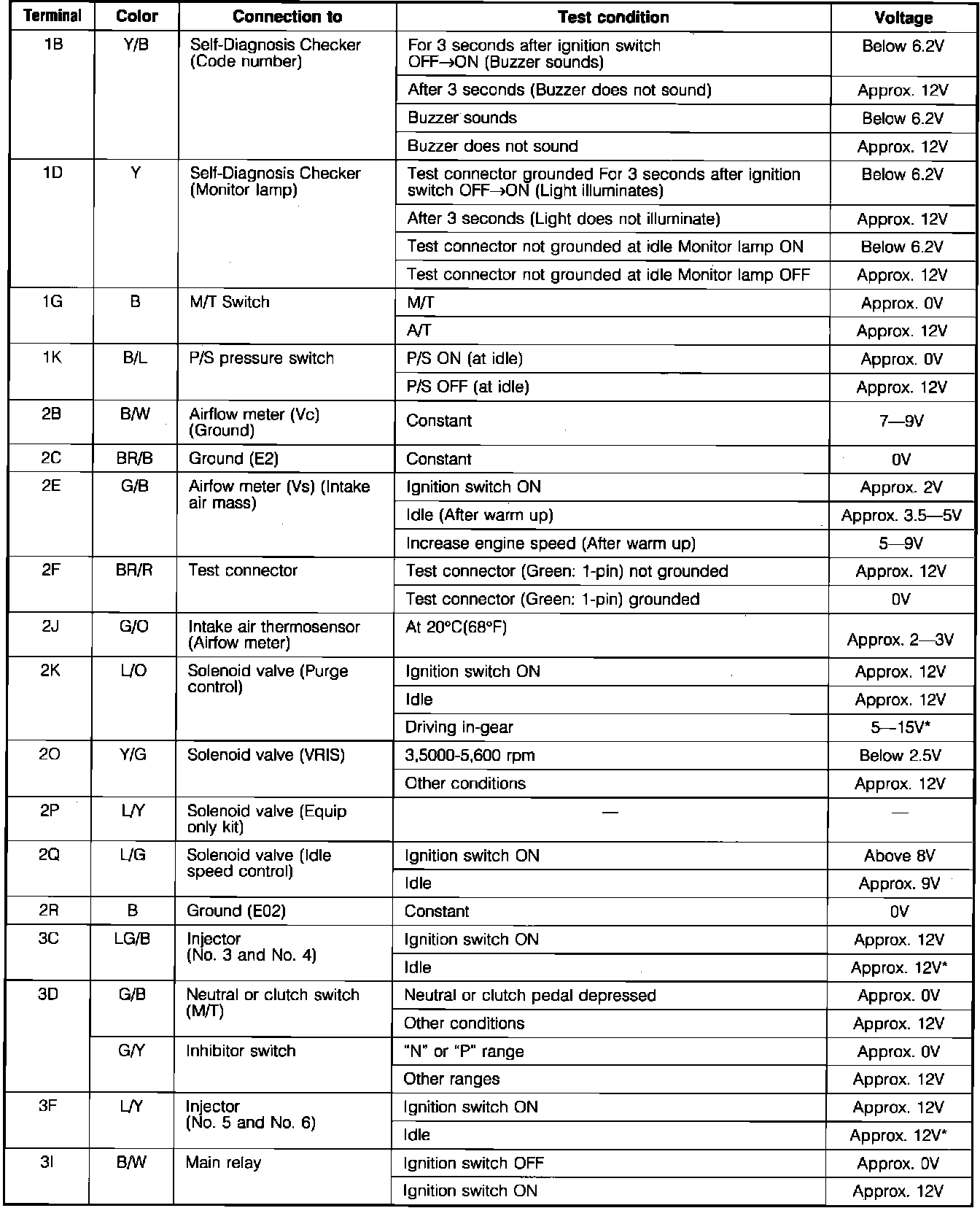

Engine Control Unit. ECU Pin Voltage Chart:
Engine Control Unit. ECU Pin Voltage Chart:
