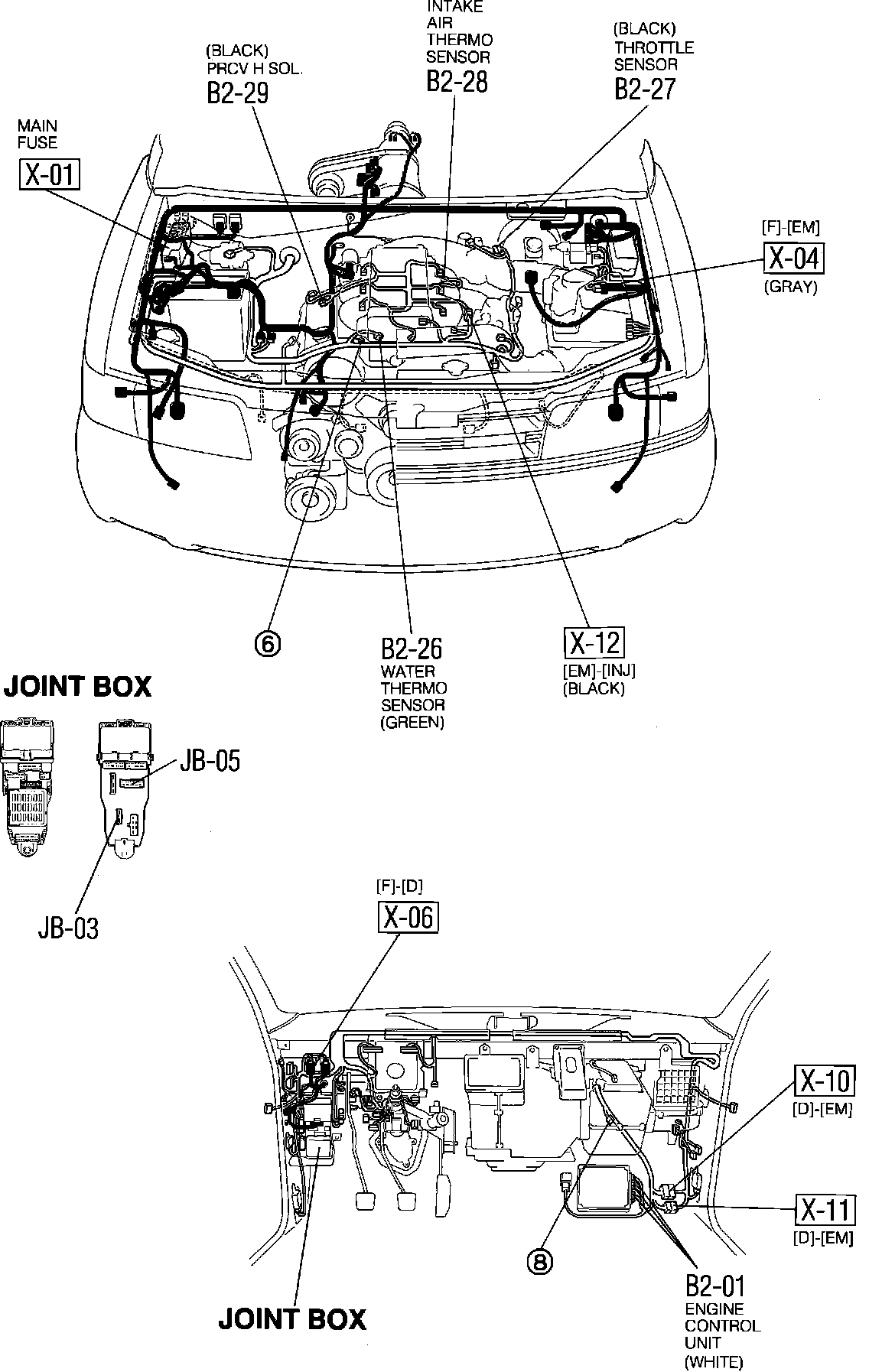

Engine Control System. Harness And Connector Locations:

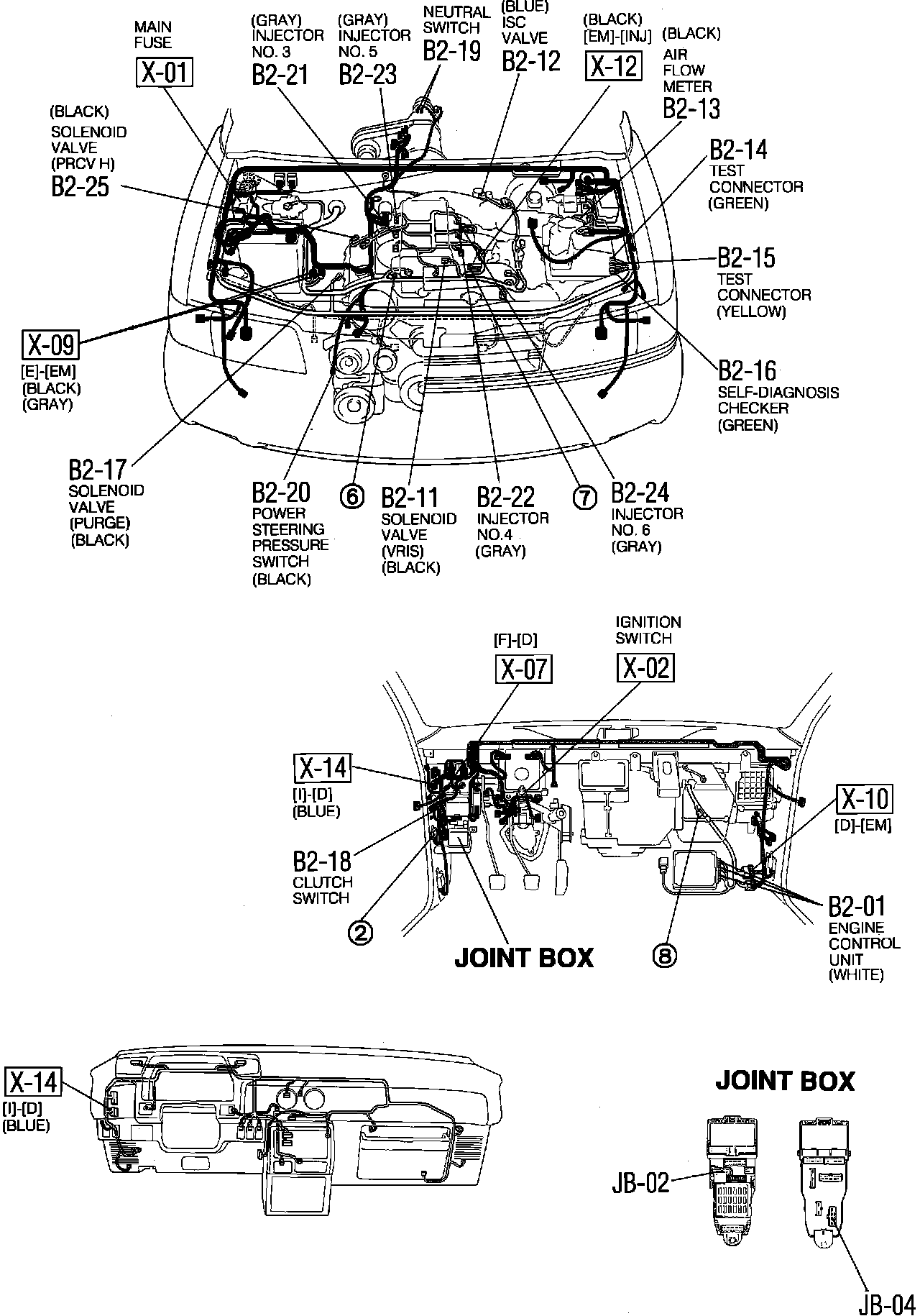

Engine Control System. Harness And Connector Locations:
Engine Control System. Harness And Connector Locations:
