Engine Control Module

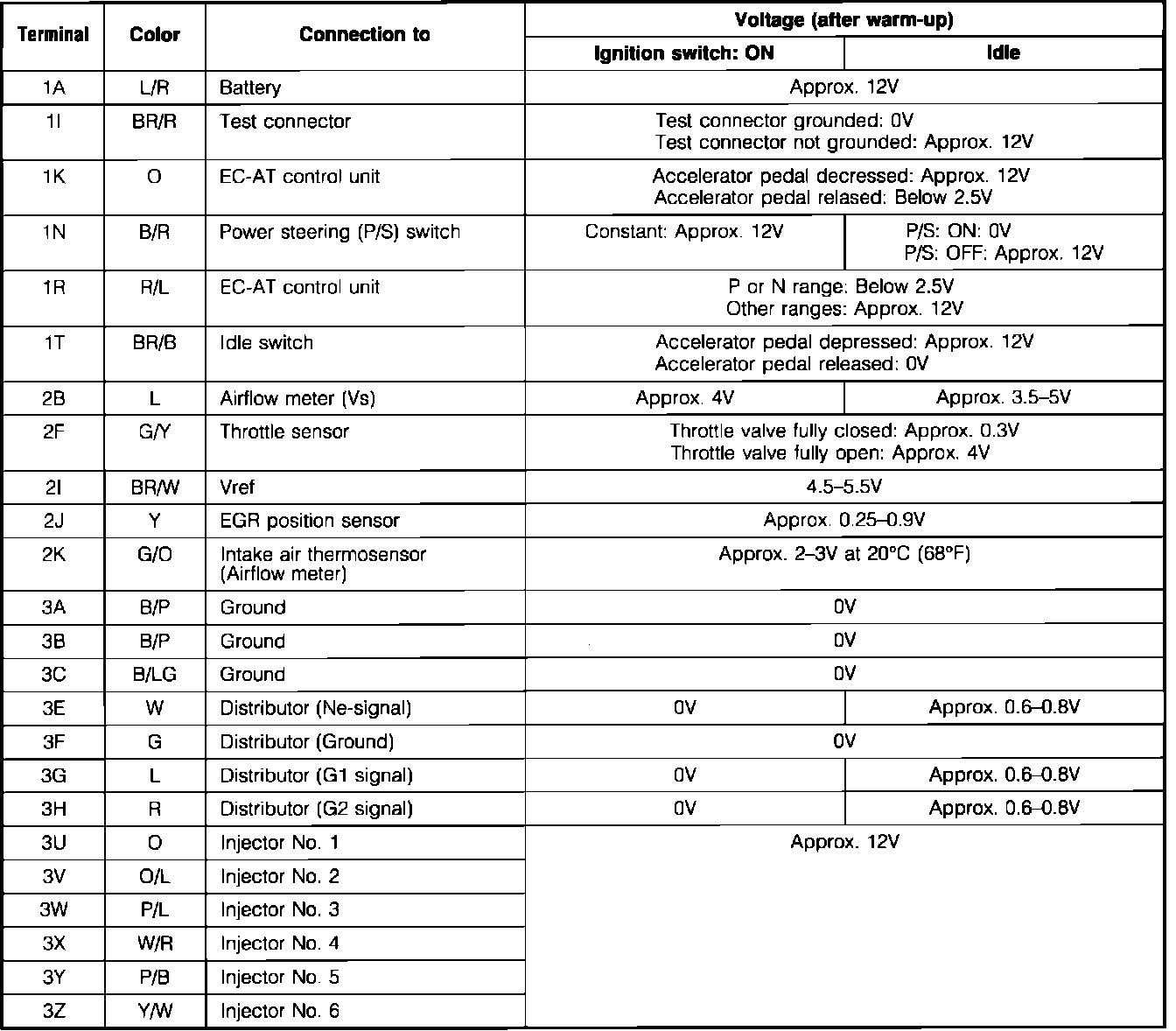

Engine Control System. DOHC. ECU Pin Voltage Chart:

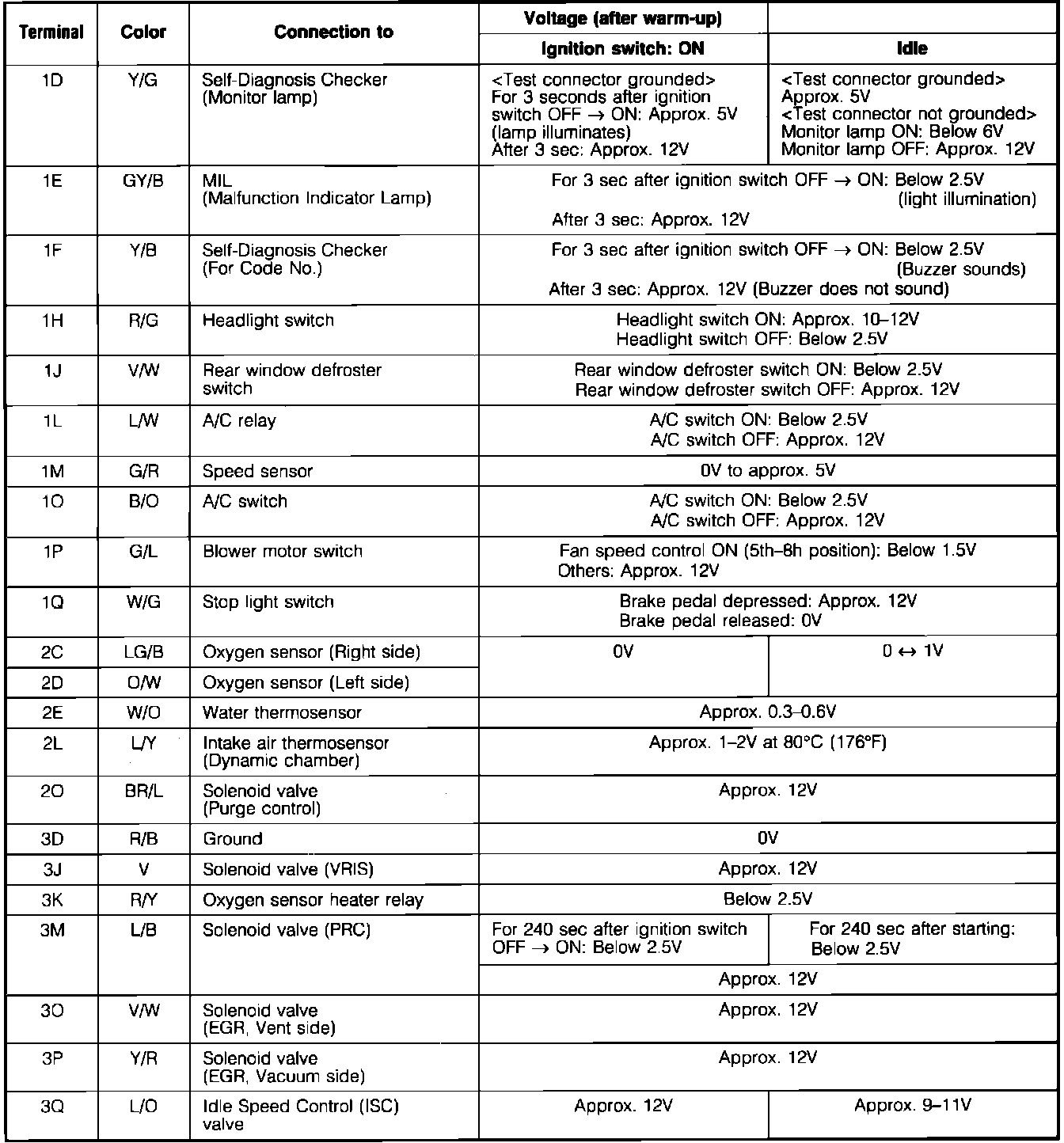

Engine Control System. DOHC. ECU Pin Voltage Chart:



Engine Control System. DOHC. ECU Pin Voltage Chart:
