LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
1991
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting System
>>
Ignition Switch
Ignition Switch

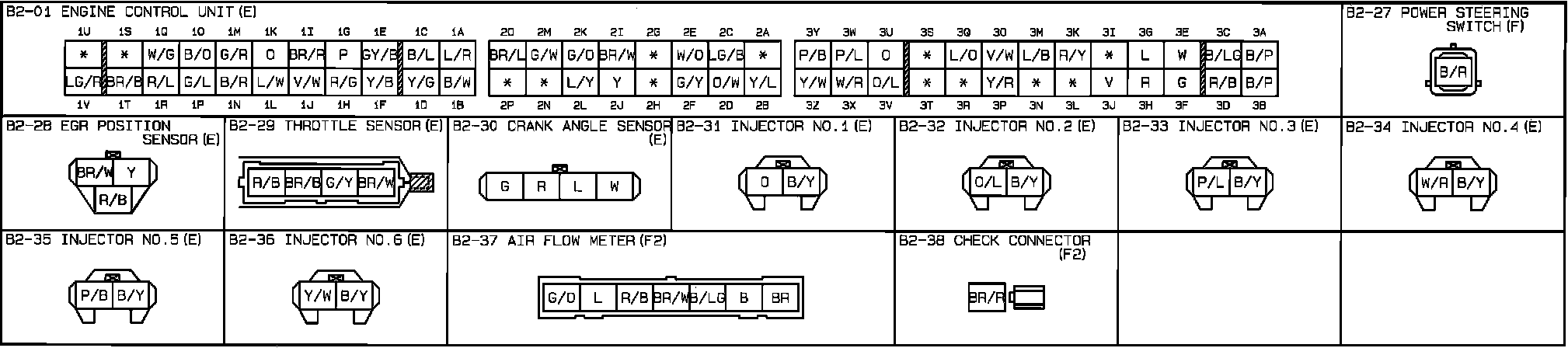

Engine Control System. DOHC. Connector Identification:

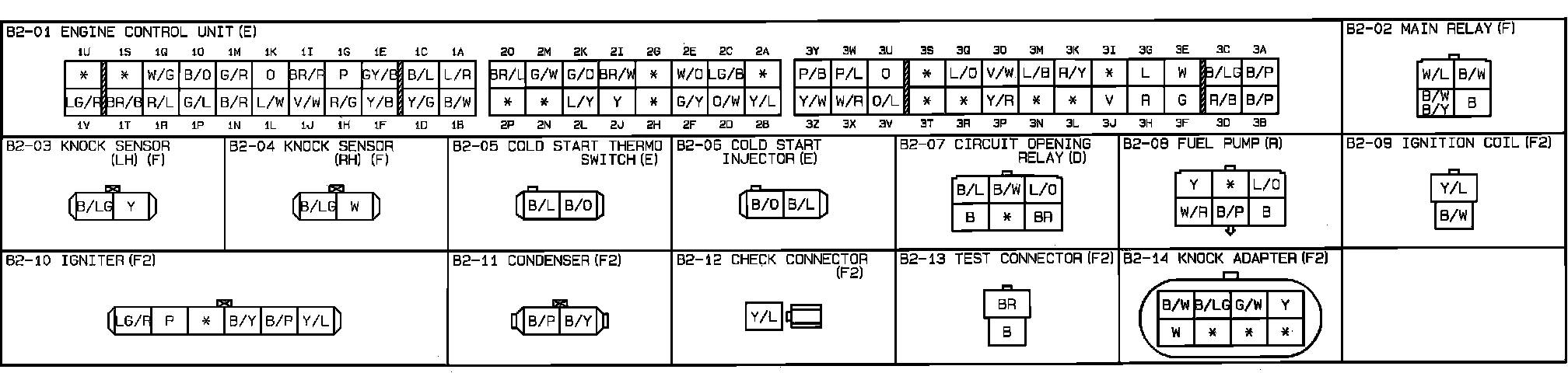

Engine Control System. DOHC. Connector Identification:

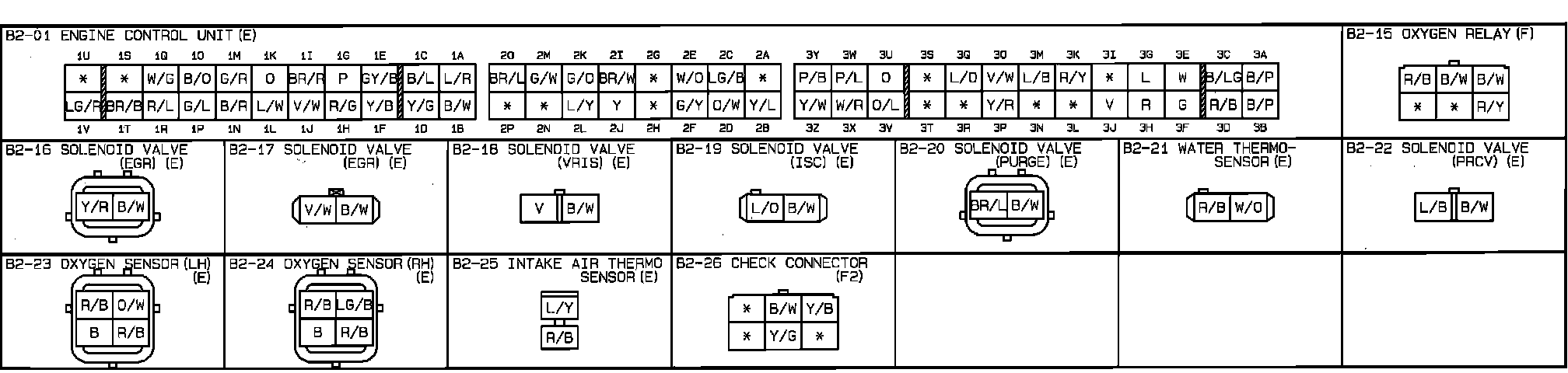

Engine Control System. DOHC. Connector Identification:
