2WD

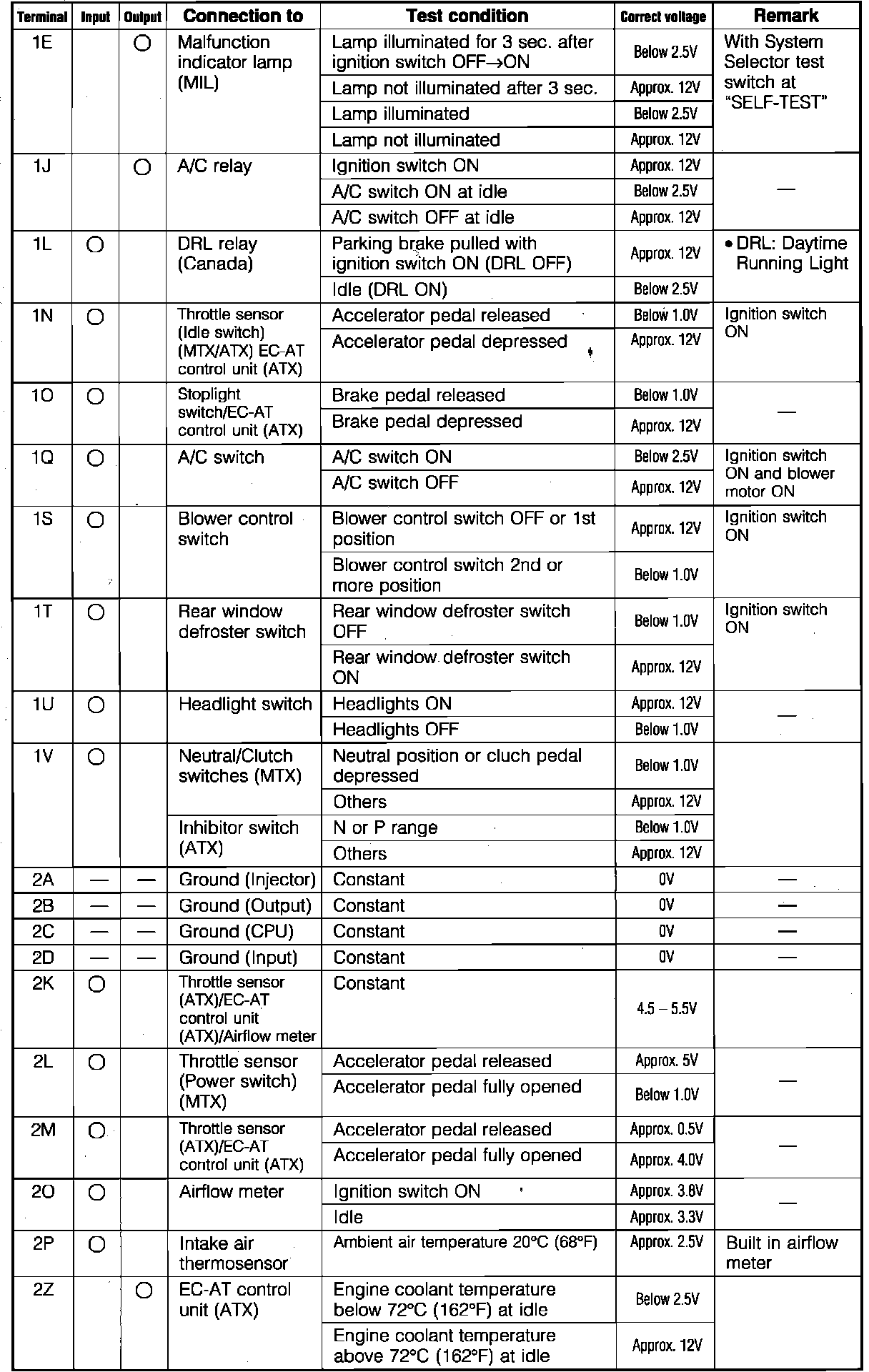

Engine Control System. 2wd. ECU Pin Voltage Chart:

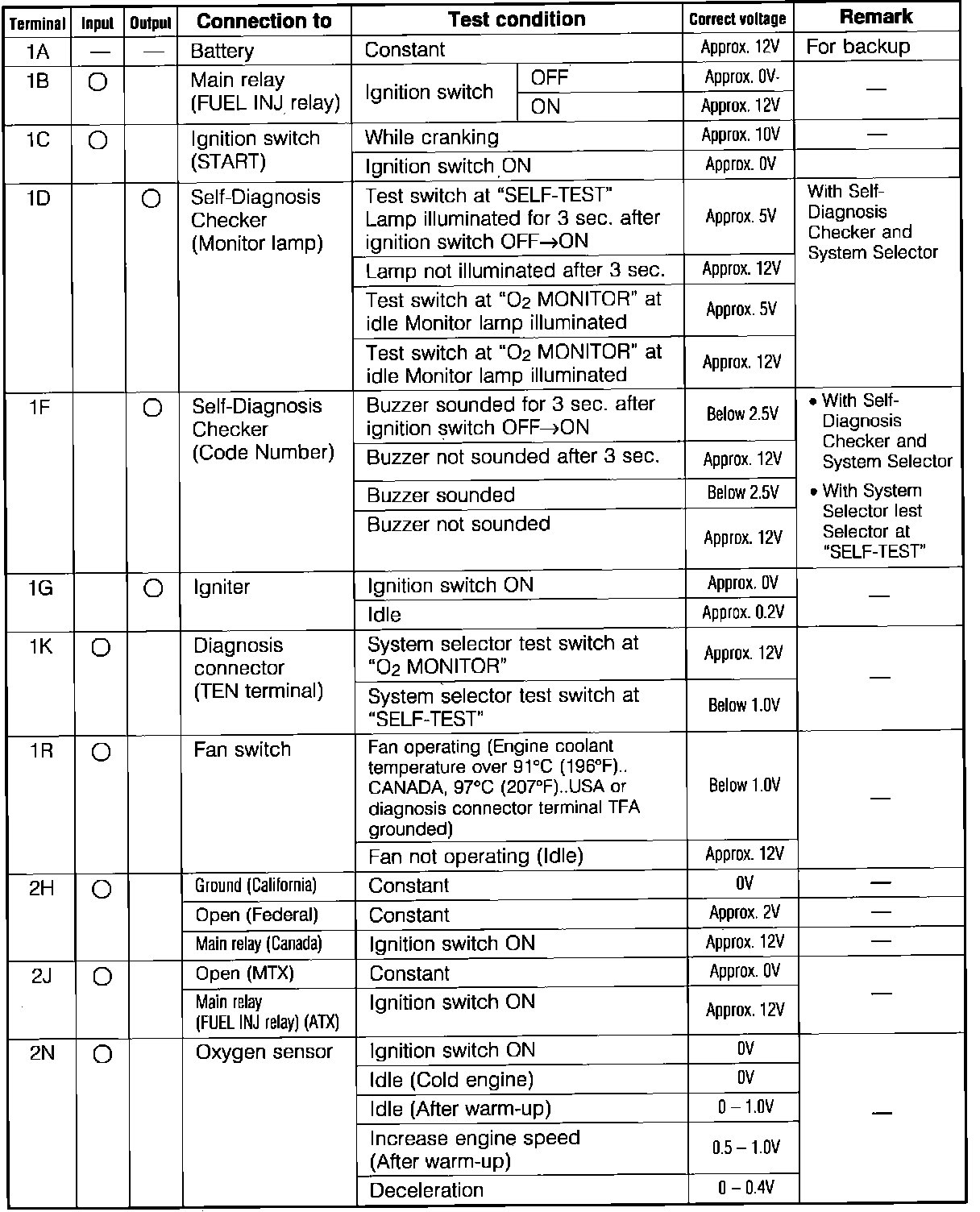

Engine Control System. 2wd. ECU Pin Voltage Chart:

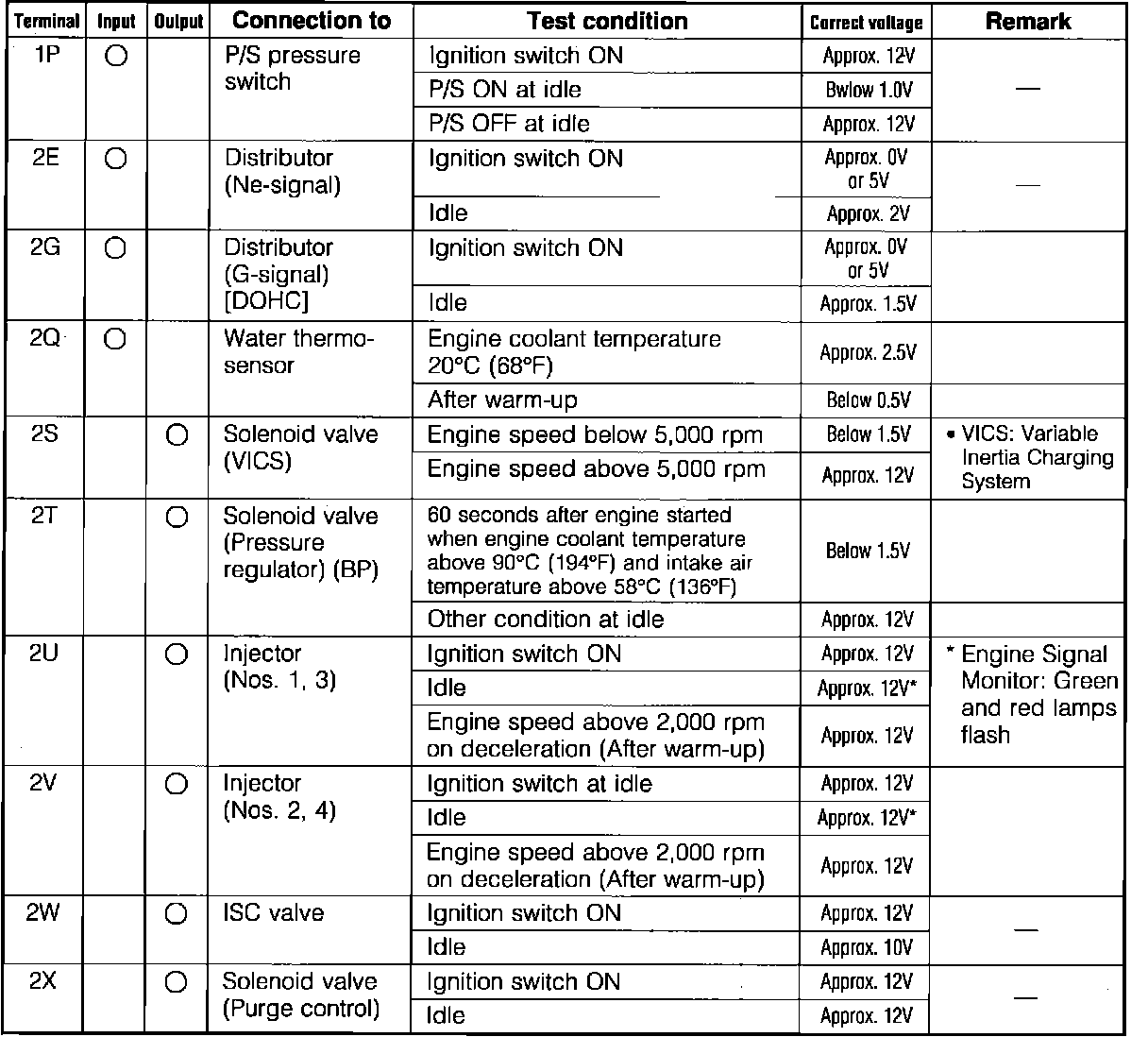

Engine Control System. 2wd. ECU Pin Voltage Chart:
