Mazda
>>
1991
>>
323 L4-1600 1597cc
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>
2WD
2WD

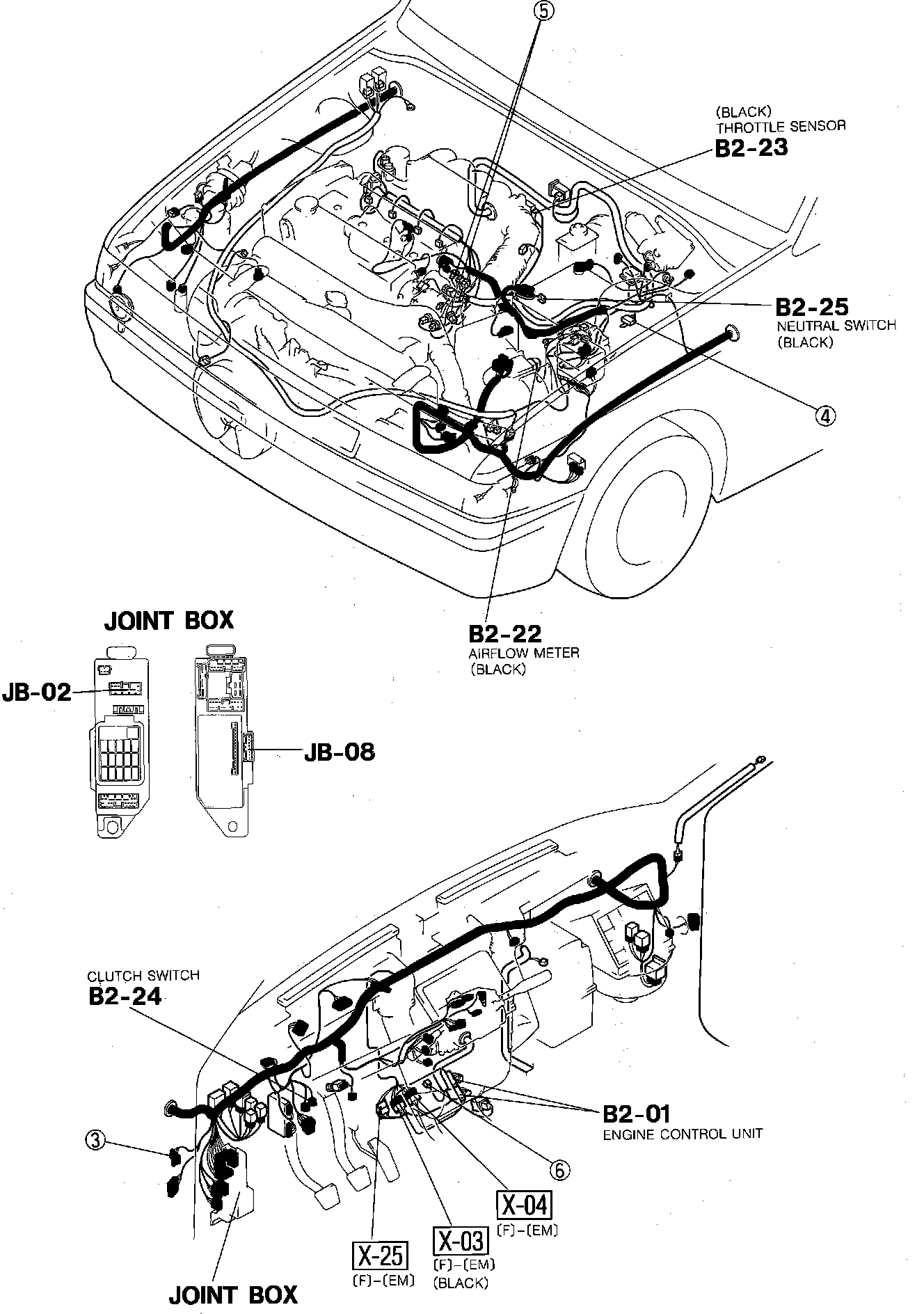

Engine Control System. 2wd. Harness And Connector Locations:

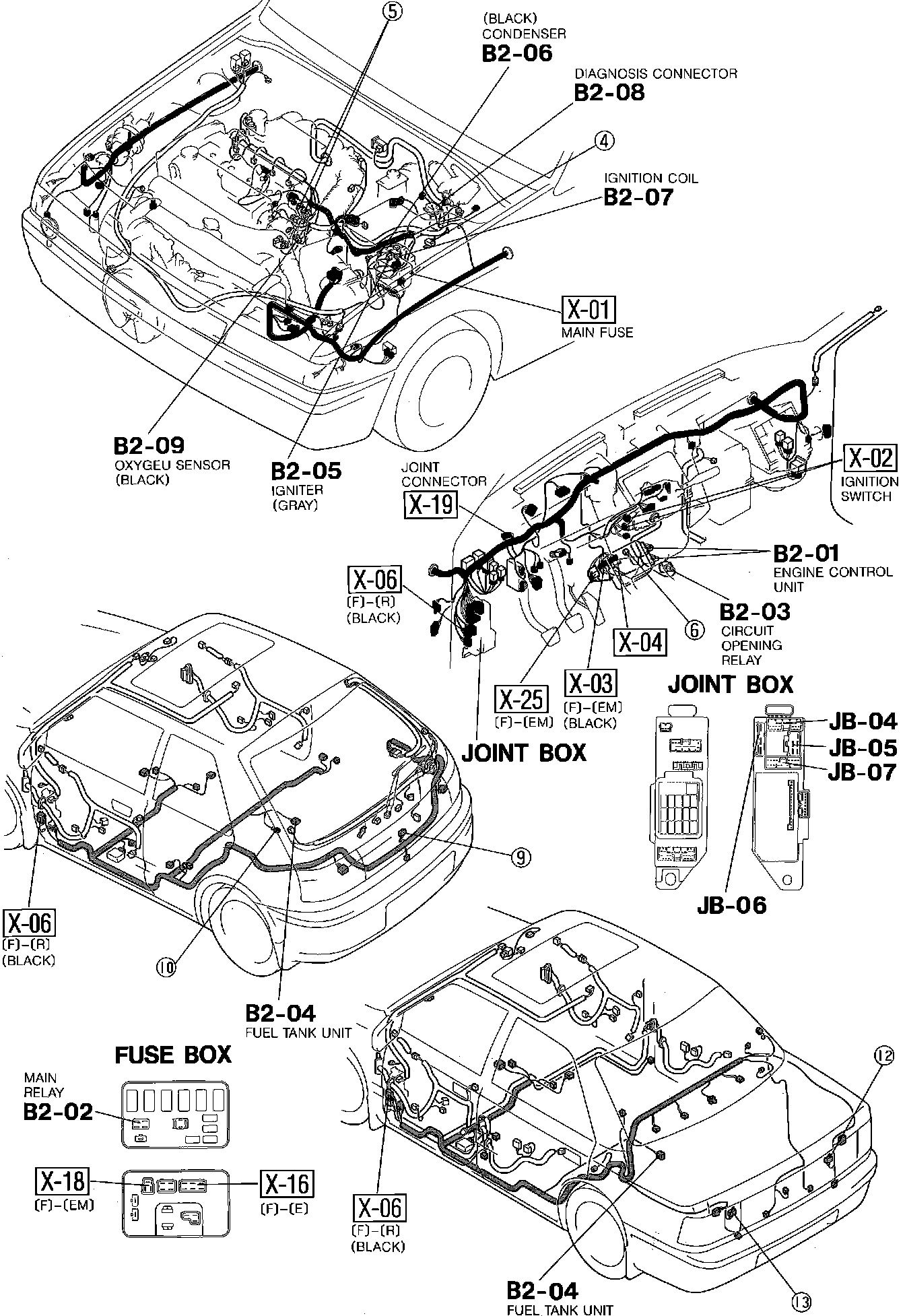

Engine Control System. 2wd. Harness And Connector Locations:

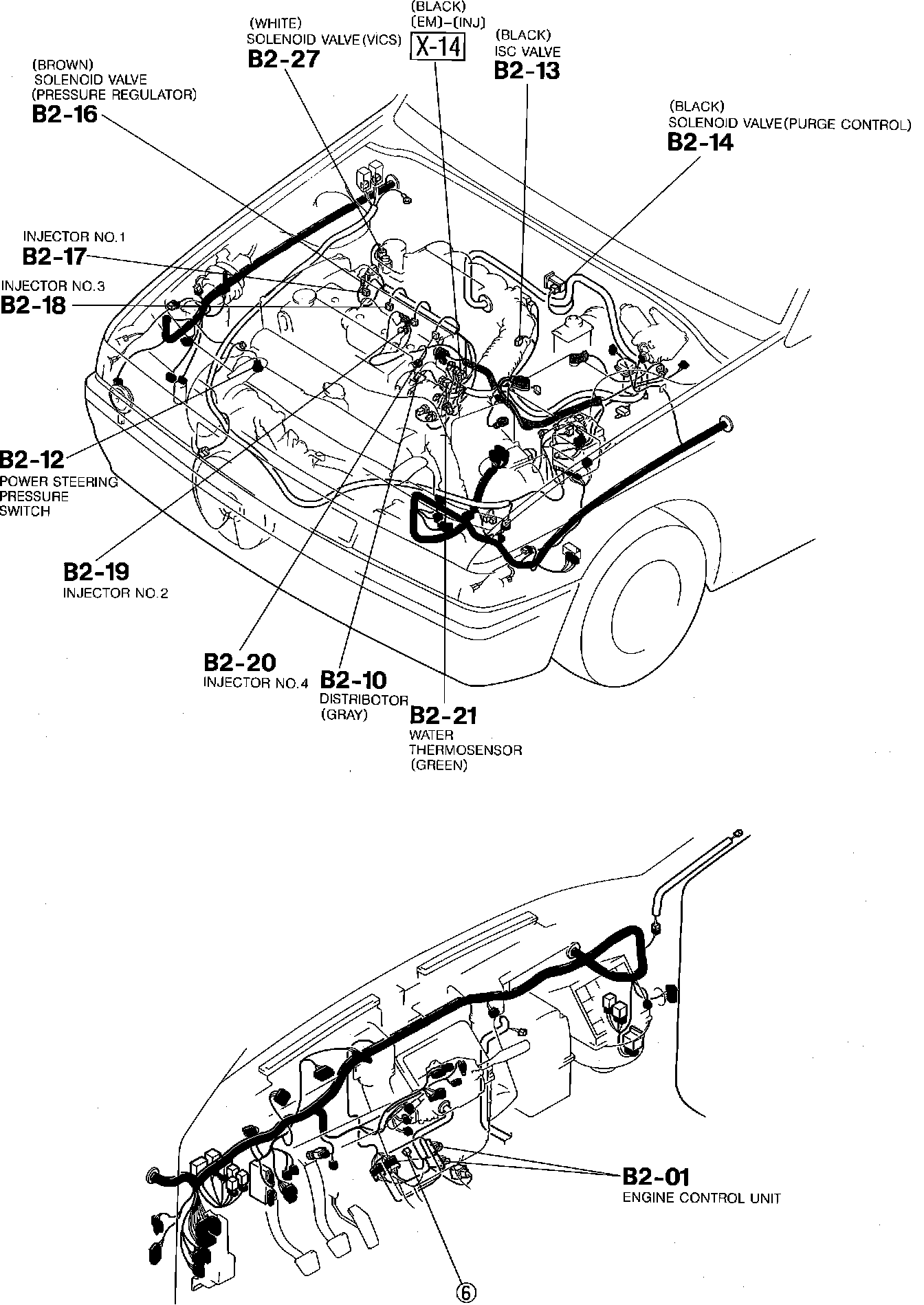

Engine Control System. 2wd. Harness And Connector Locations:
